XZU320

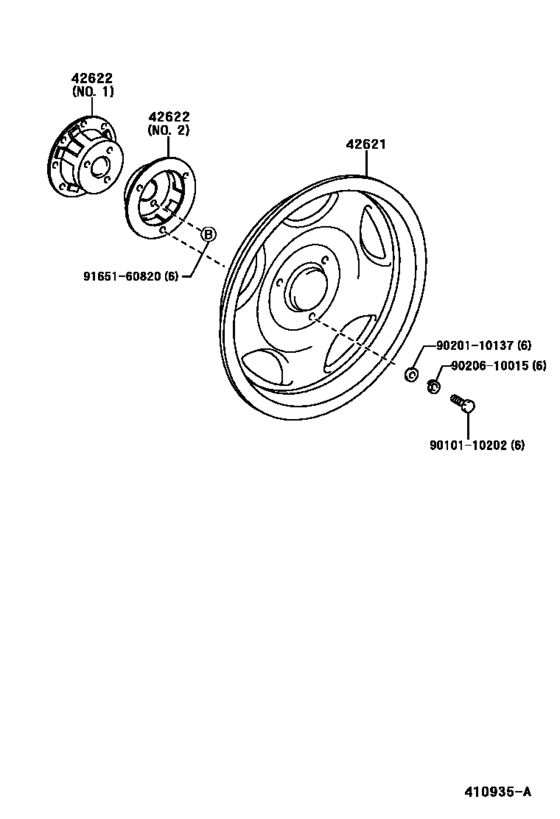

Disc Wheel & Wheel Cap ([10.2000 - ] REAR (0010- )) 5
| # | OEM | Part name |
|---|---|---|
| 9010110202 | 90101-10202 | BOLT HEXAGON |
| 9020110137 | 90201-10137 | WASHER PLATE |
| 9020610015 | 90206-10015 | WASHER WAVE |
| 9165160820 | 91651-60820 | Bolt, Radiator Side Support Plate |
| 9165160820 | 91651-B0820 | Bolt, Radiator Side Support Plate |
| OEM | Part name | Category |
|---|---|---|
| 90101-10202 | BOLT HEXAGON | Disc Wheel & Wheel Cap ([10.2000 - ] REAR (0010- )) |
| 90201-10137 | WASHER PLATE | Disc Wheel & Wheel Cap ([10.2000 - ] REAR (0010- )) |
| 90206-10015 | WASHER WAVE | Disc Wheel & Wheel Cap ([10.2000 - ] REAR (0010- )) |
| 91651-60820 | Bolt, Radiator Side Support Plate | Disc Wheel & Wheel Cap ([10.2000 - ] REAR (0010- )) |
| 91651-B0820 | Bolt, Radiator Side Support Plate | Disc Wheel & Wheel Cap ([10.2000 - ] REAR (0010- )) |
