XZU320

Toyota DYNA-TOYOACE · 1999 · 3,858 parts · 331 categories

3,858 items

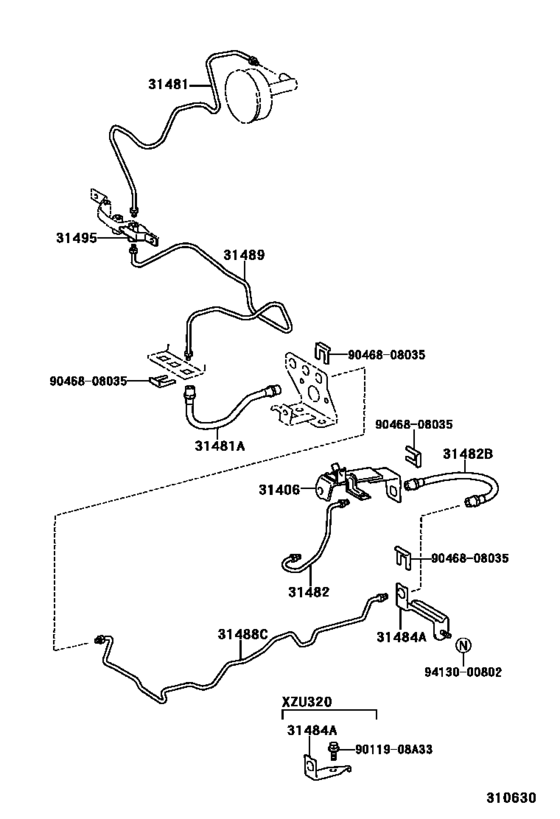

Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340) 20

#	OEM	Part name
31406	31406-37020	Bracket Sub-Assy, Flexible Hose
31481	31481-37140	Tube, Clutch Master Cylinder To Flexible Hose
31481	31481-37142	Tube, Clutch Master Cylinder To Flexible Hose
31481	31481-37141	Tube, Clutch Master Cylinder To Flexible Hose
31481	90931-01143	Hose, Clutch, No.1
31481	31486-37110	Hose, Clutch, No.1
31482	31482-37100	Tube, Clutch Release Cylinder To Flexible Hose
31482	31482-37101	Tube, Clutch Release Cylinder To Flexible Hose
31482	90931-01142	Hose, Clutch, No.1
31482	31486-37180	Hose, Clutch, No.1
31484	31484-37160	Bracket, Flexible Hose, No.1(For Clutch)
31488	31488-37260	Tube, Flexible Hose To Flexible Hose
31489	31481-37150	Tube, Tube Connector To Flexible Hose
31489	31481-37151	Tube, Tube Connector To Flexible Hose
31495	31495-37010	Way(For Clutch Tube)
9011908	90119-08A33	BOLT
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part

OEM	Part name	Category
31406-37020	Bracket Sub-Assy, Flexible Hose	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
31481-37140	Tube, Clutch Master Cylinder To Flexible Hose	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
31481-37141	Tube, Clutch Master Cylinder To Flexible Hose	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
31481-37142	Tube, Clutch Master Cylinder To Flexible Hose	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
31481-37150	Tube, Tube Connector To Flexible Hose	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
31481-37151	Tube, Tube Connector To Flexible Hose	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
31482-37100	Tube, Clutch Release Cylinder To Flexible Hose	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
31482-37101	Tube, Clutch Release Cylinder To Flexible Hose	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
31484-37160	Bracket, Flexible Hose, No.1(For Clutch)	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
31486-37110	Hose, Clutch, No.1	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
31486-37180	Hose, Clutch, No.1	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
31488-37260	Tube, Flexible Hose To Flexible Hose	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
31495-37010	Way(For Clutch Tube)	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
90119-08A33	BOLT	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
90170-A0001	New Genuine Part	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
90468-08035	CLIP	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
90468-A0007	New Genuine Part	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
90931-01142	Hose, Clutch, No.1	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
90931-01143	Hose, Clutch, No.1	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
94130-00802	Nut, No.1 (For Center Support Bearing)	Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )XZU300,320,330,340)
