XZU320

Toyota DYNA-TOYOACE · 1999 · 3,858 parts · 331 categories
XZU320 ×

← Back to categories

3,858 items

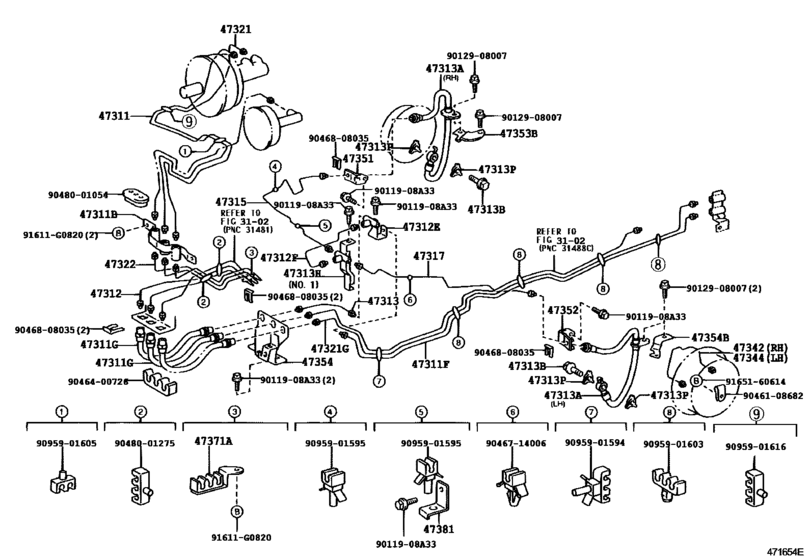

Brake Tube & Clamp ([07.1999 - ] (9907- )XZU320) 64
#OEMPart name
44591 44591-37050 Bracket, Brake Actuator, No.1
47311 47311-37170 Tube, Front Brake, No.1
47311 47311-37171 Tube, Front Brake, No.1
47311 47391-37010 Way, No.1(For Front Brake Tube)
47311 47311-37260 Tube, Front Brake, Frame No.1
47311 90947-02A79 Hose, Flexible(For Brake Tube)
47312 47312-37070 Tube, Front Brake, No.2
47312 90413-12007 Way, No.2(For Front Brake Tube)
47312 47312-37220 Tube, Front Brake, Frame, No.2
47313 47313-37250 Tube, Front Brake, No.3
47313 90947-02B67 Hose, Flexible, No.1(For Front)
47313 90947-02B68 Hose, Flexible, No.1(For Front)
47313 90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313 90904-12076 Way, No.3(For Front Brake Tube)
47313 90904-13053 Way, No.3(For Front Brake Tube)
47313 47389-30010 Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47315 47315-37160 Tube, Front Brake, No.5
47316 90947-02B78 Hose, Flexible(For Rear Brake Tube)
47317 47317-37180 Tube, Front Brake, No.7
47318 47318-37240 Tube, Front Brake, No.8
47321 47321-37170 Tube, Rear Brake, No.1
47321 47321-37172 Tube, Rear Brake, No.1
47321 47321-37171 Tube, Rear Brake, No.1
47321 47321-37260 Tube, Rear Brake, Frame No.1
47322 47322-37210 Tube, Rear Brake, No.2
47323 47323-37210 Tube, Rear Brake, No.3
47323 47391-37110 Way, No.3(For Rear Brake Tube)
47325 47325-37220 Tube, Rear Brake, No.5
47327 47327-37360 Tube, Rear Brake, No.7
47329 47329-37220 Tube, Rear Brake, No.9
47342 47342-37040 Tube, Wheel Cylinder, Front Rh No.2
47344 47344-37020 Tube, Wheel Cylinder, Front Lh No.2
47345 47345-36050 Tube, Wheel Cylinder, Rear Rh
47351 47351-37200 Bracket, Flexible Hose(For Front Rh)
47352 47352-37090 Bracket, Flexible Hose(For Front Lh)
47353 47353-37230 Bracket, Flexible Hose, No.3
47353 47353-37120 Bracket, Flexible Hose(For Rear)
47354 47351-37260 Bracket, Front Flexible Hose
47354 47354-37220 Bracket, Flexible Hose, No.4
47371 47371-37020 Clamp, Brake Tube, No.1
47381 47381-37070 Bracket, Brake Tube Clamp No.1
91611 91611-G0820 Bolt
91612 91612-B1020 Bolt (For Transfer Case)Cover No.2
9011908 90119-08A33 BOLT
9003461046 90034-61046 New Genuine Part
9011908686 90119-08686 BOLT
9012908007 90129-08007 New Genuine Part
9046108682 90461-08682 New Genuine Part
9046400726 90464-00726 Clamp, Brake Tube, No.4
9046714006 90467-14006 New Genuine Part
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9048001054 90480-01054 Grommet(For Brake Tube)
9048001274 90480-01274 Grommet, No.2(For Front Brake Tube)
9048001275 90480-01275 Clamp, Brake Tube, No.7
9094901006 90949-01006 CLAMP
9095901594 90959-01594 Clamp, Brake Tube, No.9
9095901595 90959-01595 Clamp, Brake Tube, No.1
9095901603 90959-01603 Clamp, Brake Tube, No.5
9095901605 90959-01605 New Genuine Part
9095901616 90959-01616 New Genuine Part
9161560816 91615-60816 Bolt(For Oil Receiver Pipe)
9161560816 91611-60814 Bolt
9165160614 91651-60614 Bolt
