XZU311

Toyota DYNA-TOYOACE · 1999 · 4,963 parts · 329 categories
XZU311 ×

← Back to categories

4,963 items

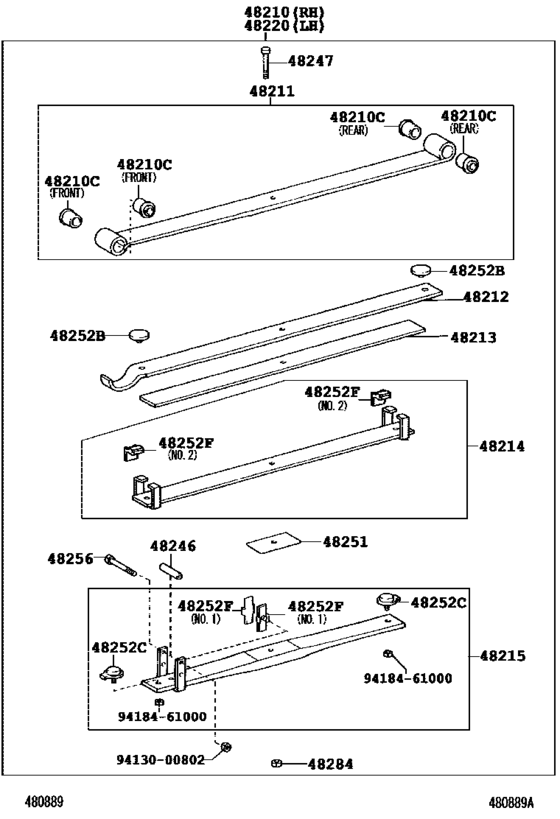

Rear Spring & Shock Absorber ([05.1999 - 06.2004] MAIN 4+HELPER 1-LEAF (9905-0406)XZU31#,351,352 ; (0406- )XZU35#..4 NO) 26
#OEMPart name
48210 48210-3V410 Spring Assy, Rear Rh
48210 48210-3V411 Spring Assy, Rear Rh
48210 90389-16024 Bush(For Rear Spring Leaf)
48210 90389-16026 Bush, Front Spring No.2 Shackle
48211 48201-3V410 Leaf, Rear Spring, No.1
48212 48212-3V410 Leaf, Rear Spring, No.2
48213 48213-3V410 Leaf, Rear Spring, No.3
48214 48202-3V410 Leaf, Rear Spring, No.4
48215 48203-3V410 Leaf, Rear Spring, No.5
48246 48246-36052 Case, Rear Spring Clip Bolt
48247 48247-37700 Bolt, Rear Spring, Center
48247 48247-37B91 Bolt, Rear Spring, Center
48251 48251-36530 Spacer, Front Leaf Spring, No.1
48252 48252-3B800 Silencer, Front Spring, No.1
48252 48252-37890 Silencer, Rear Spring, No.2
48252 48252-37380 Silencer, Rear Spring
48252 48252-37630 Silencer, Rear Spring, No.2
48252 48252-37670 Silencer, Front Spring, No.1
48256 48256-3B770 Bolt, Hexagon(For Rear Spring Clip Set)
48256 48256-37521 Bolt, Hexagon(For Rear Spring Clip Set)
48284 48299-27620 Nut, Front Spring Center Bolt
48284 48284-0W060 Nut, Front Spring Center Bolt
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9418461000 94184-61000 Nut(For Rear Spring)
9418461000 48284-37U70 Nut(For Rear Spring)
