XZU311

Toyota DYNA-TOYOACE · 1999 · 4,963 parts · 329 categories
XZU311 ×

← Back to categories

4,963 items

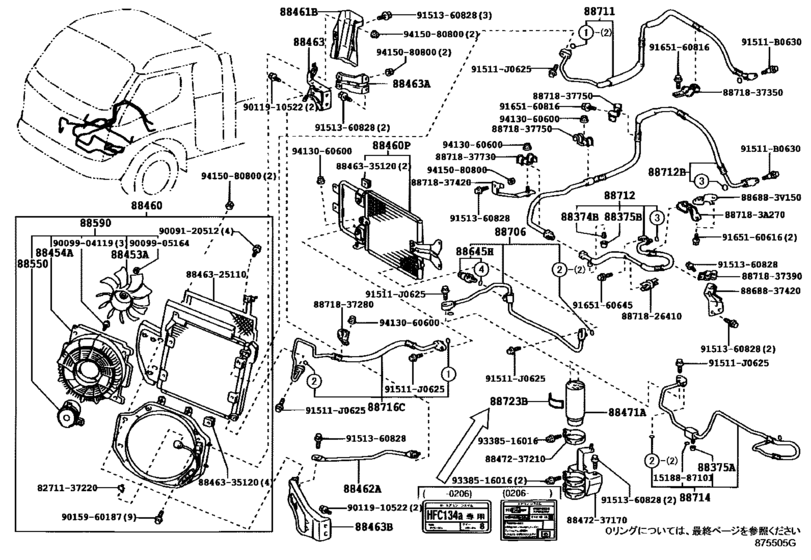

Heating & Air Conditioning - Cooler Piping ([06.2002 - 06.2004] ﾎﾞﾂｸｽ ﾌﾚｰﾑ (0105-0206)XZU31#,321,322,351,352 ; (0206-0406)X ZU31#,32#,351,352) 58
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88453 88453-37010 Fan, Cooling
88454 88454-37031 Shroud, Fan
88460 88460-37512 Condenser Assy, Cooler
88460 88460-37500 Condenser Assy, Cooler No.2
88461 53715-37180 Cover, Cooler Condenser
88462 88462-37070 Holder, Condenser
88463 88463-37140 Bracket, Cooler Condenser, No.1
88463 88463-37150 Bracket, Cooler Condenser, No.2
88463 88463-37160 Bracket, Cooler Condenser, No.3
88463 88463-37161 Bracket, Cooler Condenser, No.3
88471 88471-34010 Receiver & Dryer Assy, Cooler
88550 88550-37060 Motor Assy, Blower (For Condenser)
88590 88590-37051 Blower Assy, W/shroud
88706 88706-37150 Pipe Sub-Assy, Liquid
88711 88711-37420 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-37670 Hose, Cooler Refrigerant Suction, No.1
88712 88712-37671 Hose, Cooler Refrigerant Suction, No.1
88712 88712-37660 Hose, Cooler Refrigerant Suction
88714 88721-37360 Hose, Cooler Refrigerant Liquid, No.1
88714 88721-37361 Hose, Cooler Refrigerant Liquid, No.1
88716 88721-37660 Pipe, Cooler Refrigerant Liquid, C
88723 88733-27010 Label, Cooler Service Caution
91511 91511-B0630 BOLT FLANGE
91511 91511-J0625 Bolt(For Cylinder Head Cover)
886883 88688-3V150 Bracket, Cooler Diaphragm
886883 88688-3V500 Bracket, Cooler Diaphragm
887183 88718-3A270 Pipe, Cooler Refrigerant Suction, No.2
887183 88718-3V160 Pipe, Cooler Refrigerant Suction, No.2
1518887101 15188-87101 Gasket, Oil Pump
8271137220 82711-37220 Wire, Fuse To Fuse(for Combustion Heater)
8846325110 88463-25110 Bracket, Cooler Condenser, No.1
8846335120 88463-35120 Bracket, Cooler Condenser, No.1
8847237170 88472-37170 Bracket, Receiver Tank, No.1
8847237210 88472-37210 Bracket, Receiver Tank, No.1
8868837420 88688-37420 Bracket, Cooler Diaphragm
8871826410 88718-26410 Pipe, Cooler Refrigerant Suction, No.2
8871837280 88718-37280 Pipe, Cooler Refrigerant Suction, No.2
8871837350 88718-37350 Pipe, Cooler Refrigerant Suction, No.2
8871837390 88718-37390 Pipe, Cooler Refrigerant Suction, No.2
8871837420 88718-37420 Pipe, Cooler Refrigerant Suction, No.2
8871837730 88718-37730 Pipe, Cooler Refrigerant Suction, No.2
8871837750 88718-37750 Pipe, Cooler Refrigerant Suction, No.2
9009120512 90091-20512 BOLT WWASHER
9009904119 90099-04119 BOLT WASHER HEAD
9009905164 90099-05164 Nut
9011910522 90119-10522 BOLT WWASHER
9015960187 90159-60187 SCREW
9151360828 91513-60828 BOLT FLANGE
9165160616 91651-60616 BOLT
9165160645 91651-60645 BOLT
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9338516016 93385-16016 New Genuine Part
9413060600 94130-60600 Nut, Wire Adjusting, No.1
9415080800 94150-80800 NUT, FLANGE
