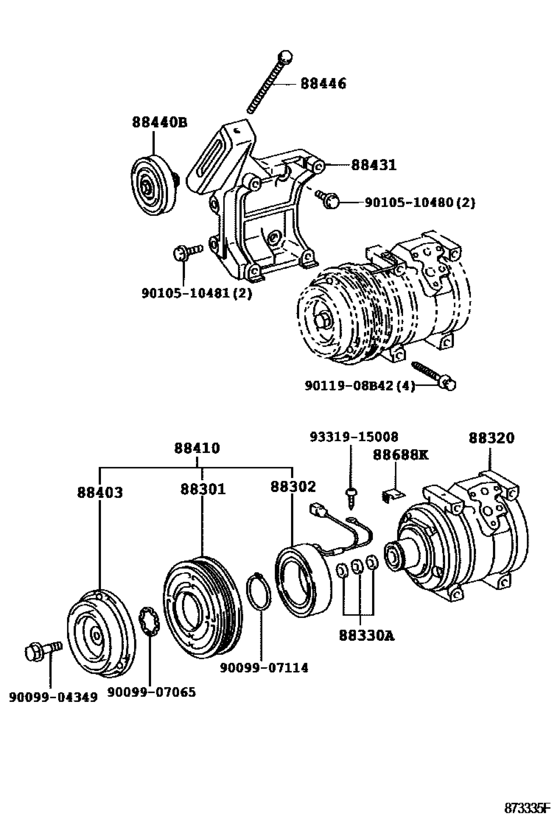

| 88320-37070 |
Compressor Assy, Cooler |
Heating & Air Conditioning - Compressor ([05.1999 - 06.2004] (9905-0406)XZU300,301,302,306,307,31#,32#,33#,34 0,341,342,346,347,35#,362,37#,382.. DSL,DSLL ; (0406- )XZU348..IV3) |
| 88335-14020 |
Washer |
Heating & Air Conditioning - Compressor ([05.1999 - 06.2004] (9905-0406)XZU300,301,302,306,307,31#,32#,33#,34 0,341,342,346,347,35#,362,37#,382.. DSL,DSLL ; (0406- )XZU348..IV3) |
| 88345-37090 |
Bracket, Compressor Mounting, No.1 |
Heating & Air Conditioning - Compressor ([05.1999 - 06.2004] (9905-0406)XZU300,301,302,306,307,31#,32#,33#,34 0,341,342,346,347,35#,362,37#,382.. DSL,DSLL ; (0406- )XZU348..IV3) |
| 88403-16011 |
Hub Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([05.1999 - 06.2004] (9905-0406)XZU300,301,302,306,307,31#,32#,33#,34 0,341,342,346,347,35#,362,37#,382.. DSL,DSLL ; (0406- )XZU348..IV3) |
| 88410-37080 |
Clutch Assy, Magnet |
Heating & Air Conditioning - Compressor ([05.1999 - 06.2004] (9905-0406)XZU300,301,302,306,307,31#,32#,33#,34 0,341,342,346,347,35#,362,37#,382.. DSL,DSLL ; (0406- )XZU348..IV3) |
| 88411-60090 |
Stator Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([05.1999 - 06.2004] (9905-0406)XZU300,301,302,306,307,31#,32#,33#,34 0,341,342,346,347,35#,362,37#,382.. DSL,DSLL ; (0406- )XZU348..IV3) |
| 88412-37010 |
Rotor Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([05.1999 - 06.2004] (9905-0406)XZU300,301,302,306,307,31#,32#,33#,34 0,341,342,346,347,35#,362,37#,382.. DSL,DSLL ; (0406- )XZU348..IV3) |
| 88440-37020 |
Pulley Assy, Idle |
Heating & Air Conditioning - Compressor ([05.1999 - 06.2004] (9905-0406)XZU300,301,302,306,307,31#,32#,33#,34 0,341,342,346,347,35#,362,37#,382.. DSL,DSLL ; (0406- )XZU348..IV3) |
| 88688-37800 |
Bracket, Cooler Compressor |
Heating & Air Conditioning - Compressor ([05.1999 - 06.2004] (9905-0406)XZU300,301,302,306,307,31#,32#,33#,34 0,341,342,346,347,35#,362,37#,382.. DSL,DSLL ; (0406- )XZU348..IV3) |
| 90099-04349 |
Bolt, Magnet Clutch Setting |
Heating & Air Conditioning - Compressor ([05.1999 - 06.2004] (9905-0406)XZU300,301,302,306,307,31#,32#,33#,34 0,341,342,346,347,35#,362,37#,382.. DSL,DSLL ; (0406- )XZU348..IV3) |
| 90099-07065 |
SNAP RING |
Heating & Air Conditioning - Compressor ([05.1999 - 06.2004] (9905-0406)XZU300,301,302,306,307,31#,32#,33#,34 0,341,342,346,347,35#,362,37#,382.. DSL,DSLL ; (0406- )XZU348..IV3) |
| 90099-07114 |
Ring, Snap (For Magnet Clutch) |
Heating & Air Conditioning - Compressor ([05.1999 - 06.2004] (9905-0406)XZU300,301,302,306,307,31#,32#,33#,34 0,341,342,346,347,35#,362,37#,382.. DSL,DSLL ; (0406- )XZU348..IV3) |
| 90105-08099 |
Bolt(For Power Steering Idle Pulley) |
Heating & Air Conditioning - Compressor ([05.1999 - 06.2004] (9905-0406)XZU300,301,302,306,307,31#,32#,33#,34 0,341,342,346,347,35#,362,37#,382.. DSL,DSLL ; (0406- )XZU348..IV3) |
| 90105-10480 |
New Genuine Part |
Heating & Air Conditioning - Compressor ([05.1999 - 06.2004] (9905-0406)XZU300,301,302,306,307,31#,32#,33#,34 0,341,342,346,347,35#,362,37#,382.. DSL,DSLL ; (0406- )XZU348..IV3) |
| 90105-10481 |
BOLT FLANGE |
Heating & Air Conditioning - Compressor ([05.1999 - 06.2004] (9905-0406)XZU300,301,302,306,307,31#,32#,33#,34 0,341,342,346,347,35#,362,37#,382.. DSL,DSLL ; (0406- )XZU348..IV3) |
| 90119-08B42 |
BOLT WWASHER |
Heating & Air Conditioning - Compressor ([05.1999 - 06.2004] (9905-0406)XZU300,301,302,306,307,31#,32#,33#,34 0,341,342,346,347,35#,362,37#,382.. DSL,DSLL ; (0406- )XZU348..IV3) |
| 93319-15008 |
SCREW |
Heating & Air Conditioning - Compressor ([05.1999 - 06.2004] (9905-0406)XZU300,301,302,306,307,31#,32#,33#,34 0,341,342,346,347,35#,362,37#,382.. DSL,DSLL ; (0406- )XZU348..IV3) |
