XZU311

Toyota DYNA-TOYOACE · 1999 · 4,963 parts · 329 categories
XZU311 ×

← Back to categories

4,963 items

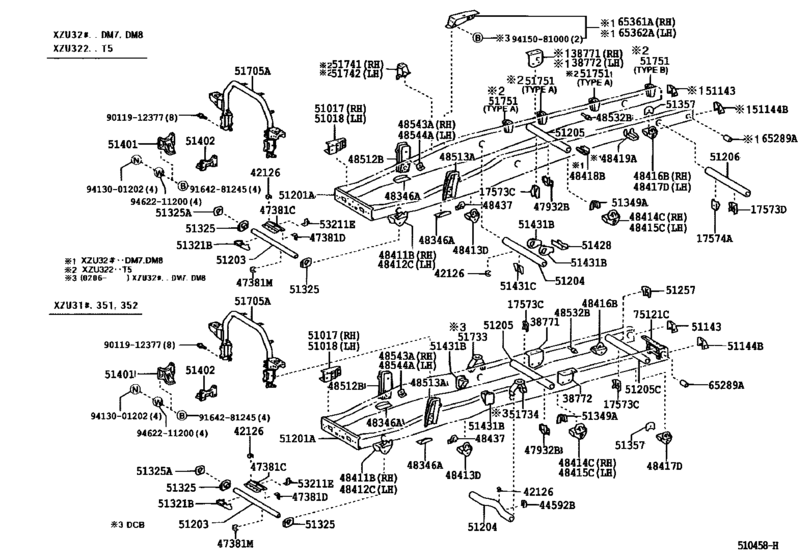

Frame ([05.1999 - 06.2004] ﾌﾚ-ﾑ (9905-0406)XZU31#,32#,351,352) 58
#OEMPart name
17573 17573-78030 Bracket, Exhaust Pipe Support, No.3
38771 38771-37010 Stay, Trunnion Bracket, Rh
38772 38772-37010 Stay, Trunnion Bracket, Lh
42126 42126-37020 Attachment, Brake 3 Way
44592 44592-37060 Bracket, Brake Actuator, No.2
47381 47381-37060 Bracket, Tube Clamp
47381 47381-37180 Bracket, Tube Clamp
47381 47381-37300 Bracket, Tube Clamp
47381 47381-37310 Bracket, Tube Clamp
47932 47932-37020 Bracket, Load Sensing Valve, No.2
48346 48346-37030 Stopper, Bumper, Fr
48411 48411-37051 Bracket, Spring, No.1 Rh
48412 48412-37041 Bracket, Spring, No.1 Lh
48413 48413-37050 Bracket, Spring, No.2
48414 48414-37080 Bracket, Spring, No.3 Rh
48416 48416-37070 Bracket, Spring, No.4 Rh
48437 48437-37010 Attachment, Spring Bracket
48512 48512-37050 Bracket, Front Shock Absorber, Upper Rh
48513 48512-37130 Bracket, Front Shock Absorber, Upper Lh
48532 48532-37010 Pin, Rear Shock Absorber Upper Pivot
48543 48543-37010 Reinforcement, Front Absorber Bracket, Rh
51017 51017-37050 Reinforcement Sub-Assy, Side Rail, No.1 Rh
51018 51018-37040 Reinforcement Sub-Assy, Side Rail, No.1 Lh
51018 51018-37050 Reinforcement Sub-Assy, Side Rail, No.1 Lh
51143 51143-37030 Reinforcement, Side Rail, Rear Rh
51201 51211-37100 Crossmember Sub-Assy, Frame, Front
51201 51211-37102 Crossmember Sub-Assy, Frame, Front
51201 51211-37101 Crossmember Sub-Assy, Frame, Front
51203 51221-37120 Crossmember Sub-Assy, Frame, No.2
51203 51221-37060 Crossmember Sub-Assy, Frame, No.2
51204 51231-37060 Crossmember Sub-Assy, Frame, No.3
51205 51241-37030 Crossmember Sub-Assy, Frame, No.3
51205 51205-37090 Crossmember Sub-Assy, Frame, No.4
51321 51321-37040 Gusset, Crossmember, No.2
51321 51321-37080 Gusset, Crossmember, No.2
51325 51325-37020 Retainer, Frame No.2 Crossmember
51325 51325-37021 Retainer, Frame No.2 Crossmember
51325 51325-37040 Retainer, Frame No.2 Crossmember
51349 51349-37022 Reinforcement, Rear Spring Front Bracket, No.2
51357 51357-37020 Reinforcement, Rear Spring Rear Bracket, Rh
51401 51421-37100 Bracket Sub-Assy, Engine Front Mounting, Rh
51402 51422-37080 Bracket Sub-Assy, Engine Front Mounting, Lh
51431 51431-37030 Bracket, Engine Rear Mounting
51705 51705-37070 Bracket Sub-Assy, Cab Mounting, No.3
51705 51705-37071 Bracket Sub-Assy, Cab Mounting, No.3 Lh
51705 91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover)
51705 51705-37400 Bracket Sub-Assy, Cab Mounting, No.3
51705 51705-37840 Bracket Sub-Assy, Cab Mounting, No.3
51705 91551-80840 Bolt(For Head To Camshaft Bearing Cap)
53211 53211-37030 Support, Radiator
53211 53211-37050 Support, Radiator
65289 65289-37010 Support, Vessel Hinge
75121 75121-37040 Bracket, Rear License Plate
9011912377 90119-12377 New Genuine Part
9164281245 91642-81245 New Genuine Part
9413001202 94130-01202 Nut(For Dust Cover To Steering Knuckle Arm Setting)
9415081000 94150-81000 NUT FLANGE
9462211200 94622-11200 WASHER
