XZU307

Toyota DYNA-TOYOACE · 1999 · 2,955 parts · 159 categories

← Back to categories

2,955 items

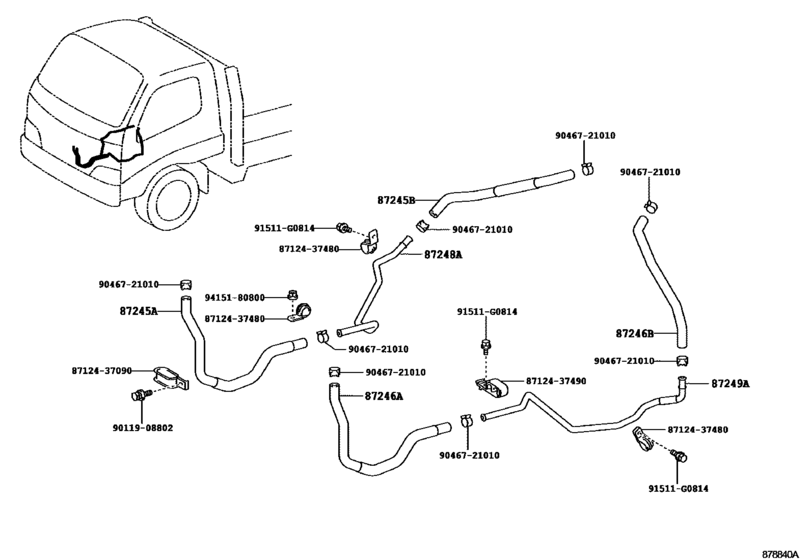

Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )XZU307,327,337,347) 17

#	OEM	Part name
87245	87245-37E30	Hose, Heater Water, Inlet A
87245	99556-30500	Hose, Heater Water, Inlet A
87245	87245-37C80	Hose, Heater Water, Inlet A
87245	87245-37C81	Hose, Heater Water, Inlet A
87246	87245-37E20	Hose, Heater Water, Outlet A
87246	87246-37690	Hose, Heater Water, Inlet B
87248	87248-37810	Pipe, Heater Water Inlet, A
87248	87248-37B50	Pipe, Heater Water Inlet, A
87249	87248-37800	Pipe, Heater Water Outlet, A
87249	87248-37B60	Pipe, Heater Water Outlet, A
91511	91511-G0814	New Genuine Part
8712437090	87124-37090	Clamp, No.1 (For Transmission Control Cable)
8712437480	87124-37480	Clamp, Heater
8712437490	87124-37490	Clamp, Heater
9011908802	90119-08802	BOLT WWASHER
9046721010	90467-21010	Clip(For Ventilation Hose No.2)
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
87124-37090	Clamp, No.1 (For Transmission Control Cable)	Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )XZU307,327,337,347)
87124-37480	Clamp, Heater	Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )XZU307,327,337,347)
87124-37490	Clamp, Heater	Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )XZU307,327,337,347)
87245-37C80	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )XZU307,327,337,347)
87245-37C81	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )XZU307,327,337,347)
87245-37E20	Hose, Heater Water, Outlet A	Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )XZU307,327,337,347)
87245-37E30	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )XZU307,327,337,347)
87246-37690	Hose, Heater Water, Inlet B	Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )XZU307,327,337,347)
87248-37800	Pipe, Heater Water Outlet, A	Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )XZU307,327,337,347)
87248-37810	Pipe, Heater Water Inlet, A	Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )XZU307,327,337,347)
87248-37B50	Pipe, Heater Water Inlet, A	Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )XZU307,327,337,347)
87248-37B60	Pipe, Heater Water Outlet, A	Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )XZU307,327,337,347)
90119-08802	BOLT WWASHER	Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )XZU307,327,337,347)
90467-21010	Clip(For Ventilation Hose No.2)	Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )XZU307,327,337,347)
91511-G0814	New Genuine Part	Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )XZU307,327,337,347)
94151-80800	Nut (For Transmission Control Cable)	Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )XZU307,327,337,347)
99556-30500	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )XZU307,327,337,347)
