Search › Model › XZU305

XZU305

Toyota DYNA-TOYOACE · 2003 · 3,249 parts · 171 categories

3,249 items

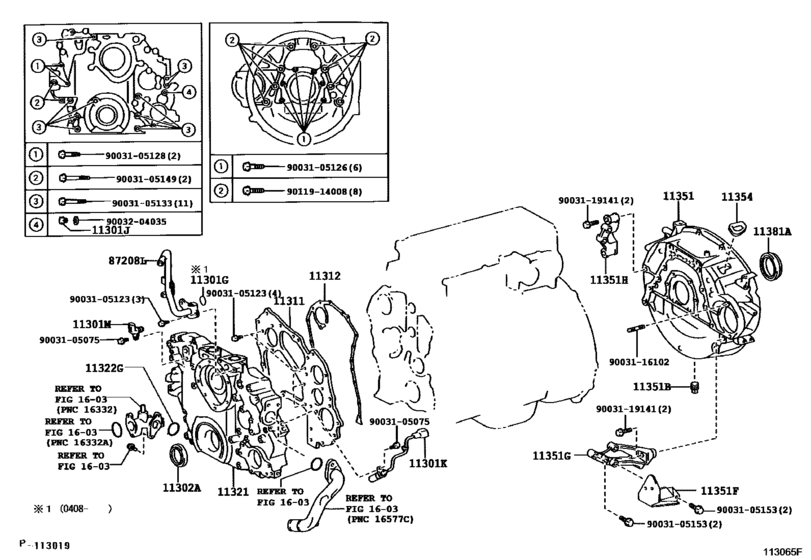

Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C) 42

#	OEM	Part name
11301	90033-01086	Ring, O(For Timing Gear Case, Upper)
11301	90033-01105	Ring, O(For Timing Gear Case, Upper)
11301	90033-41004	Plug, W/head Straight Screw(For Timing Gear Case)
11301	19311-78060	Sensor, Crank Position
11301	89411-E0040	Sensor, Crank Position
11301	19311-78030	Sensor, Cam Position
11302	90033-11040	Seal, Oil(For Timing Chain Or Belt Cover)
11311	11429-78020	Plate, Front End
11311	13596-78010	Plate, Front End
11312	11312-78011	Gasket, Front End Plate
11321	11321-78081	Case, Timing Gear
11321	11321-78083	Case, Timing Gear
11321	11321-78087	Case, Timing Gear
11321	11321-78084	Case, Timing Gear
11321	11321-78085	Case, Timing Gear
11321	11321-78086	Case, Timing Gear
11322	90033-01064	Ring, O(For Timing Gear Cover)
11351	11351-78050	Housing, Flywheel
11351	11351-E0G75	Housing, Flywheel
11351	90033-45015	Plug, Hole(For Flywheel Housing)
11351	33119-37070	Plate, Stiffener, Lh(For Flywheel Housing)
11351	33119-37100	Plate, Stiffener, Lh(For Flywheel Housing)
11351	11353-78011	Stay, Lh(For Flywheel Housing)
11351	11353-E0060	Stay, Lh(For Flywheel Housing)
11351	11353-78012	Stay, Lh(For Flywheel Housing)
11351	11353-78020	Stay, Rh(For Flywheel Housing)
11354	11354-78070	Seal, Flywheel Housing Dust
11354	11354-E0060	Seal, Flywheel Housing Dust
11381	90311-99002	Seal, Engine Rear Oil
87208	87208-37420	Pipe Sub-Assy, Water
87208	16302-E0400	Pipe Sub-Assy, Water
9003105075	90031-05075	New Genuine Part
9003105123	90031-05123	Bolt(For Cylinder Head Cover)
9003105126	90031-05126	New Genuine Part
9003105128	90031-05128	Bolt(For Cylinder Head Cover)
9003105133	90031-05133	Bolt(For Cylinder Head Cover)
9003105149	90031-05149	New Genuine Part
9003105153	90031-05153	BOLT FLANGE
9003116102	90031-16102	New Genuine Part
9003119141	90031-19141	New Genuine Part
9003204035	90032-04035	New Genuine Part
9011914008	90119-14008	New Genuine Part

OEM	Part name	Category
11312-78011	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
11321-78081	Case, Timing Gear	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
11321-78083	Case, Timing Gear	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
11321-78084	Case, Timing Gear	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
11321-78085	Case, Timing Gear	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
11321-78086	Case, Timing Gear	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
11321-78087	Case, Timing Gear	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
11351-78050	Housing, Flywheel	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
11351-E0G75	Housing, Flywheel	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
11353-78011	Stay, Lh(For Flywheel Housing)	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
11353-78012	Stay, Lh(For Flywheel Housing)	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
11353-78020	Stay, Rh(For Flywheel Housing)	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
11353-E0060	Stay, Lh(For Flywheel Housing)	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
11354-78070	Seal, Flywheel Housing Dust	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
11354-E0060	Seal, Flywheel Housing Dust	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
11429-78020	Plate, Front End	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
13596-78010	Plate, Front End	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
16302-E0400	Pipe Sub-Assy, Water	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
19311-78030	Sensor, Cam Position	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
19311-78060	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
33119-37070	Plate, Stiffener, Lh(For Flywheel Housing)	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
33119-37100	Plate, Stiffener, Lh(For Flywheel Housing)	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
87208-37420	Pipe Sub-Assy, Water	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
89411-E0040	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05075	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05123	Bolt(For Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05126	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05128	Bolt(For Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05133	Bolt(For Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05149	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05153	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
90031-16102	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
90031-19141	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
90032-04035	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
90033-01064	Ring, O(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
90033-01086	Ring, O(For Timing Gear Case, Upper)	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
90033-01105	Ring, O(For Timing Gear Case, Upper)	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
90033-11040	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
90033-41004	Plug, W/head Straight Screw(For Timing Gear Case)	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
90033-45015	Plug, Hole(For Flywheel Housing)	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
90119-14008	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
90311-99002	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([12.2003 - 10.2006] (0312-0610)N04C)
