XZU305

Toyota DYNA-TOYOACE · 2003 · 3,249 parts · 171 categories
XZU305 ×

← Back to categories

3,249 items

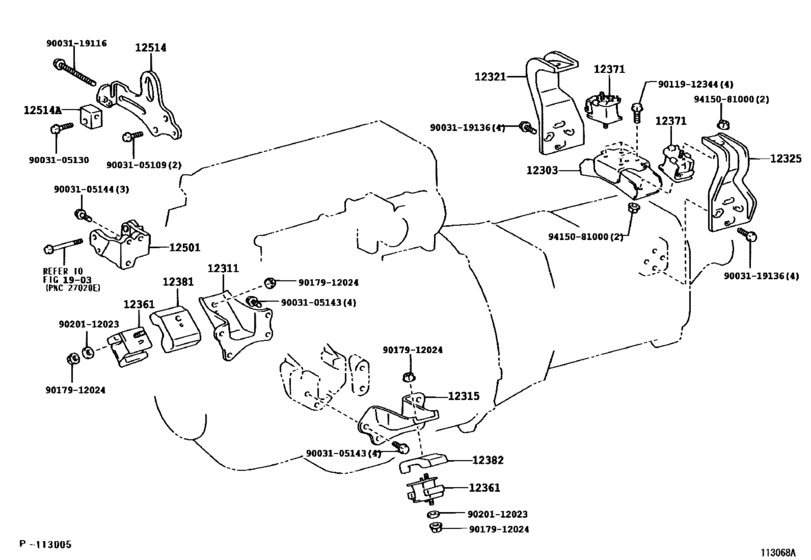

Mounting ([12.2003 - 10.2006] (0312-0610)N04C) 31
#OEMPart name
12303 12303-78010 Bracket Sub-Assy, Engine Mounting, Rear
12303 12303-78011 Bracket Sub-Assy, Engine Mounting, Rear
12311 12311-78050 Bracket, Engine Mounting, Front No.1 Rh
12311 12311-E0230 Bracket, Engine Mounting, Front No.1 Rh
12315 12315-78050 Bracket, Engine Mounting, Front No.1 Lh
12321 12321-78220 Bracket, Engine Mounting, Rear, No.1
12321 12321-78221 Bracket, Engine Mounting, Rear, No.1
12325 12325-78200 Bracket, Engine Mounting, No.3
12325 12325-78201 Bracket, Engine Mounting, No.3
12361 12361-58130 Insulator, Engine Mounting, Front
12361 12361-58131 Insulator, Engine Mounting, Front
12371 12371-78010 Insulator, Engine Mounting, Rear No.1
12371 12371-78060 INSULATOR ENGINE
12381 12381-78030 Stabilizer, Engine Mounting
12381 12381-78032 Stabilizer, Engine Mounting
12501 12501-78062 Bracket Sub-Assy, Alternator
12501 12511-E0570 Bracket Sub-Assy, Alternator
12501 12501-78120 Bracket Sub-Assy, Alternator
12514 12514-78072 Bar, Alternator Belt Adjusting
12514 12519-78020 Slider, Fan Belt Adjusting
12514 12519-E0010 Slider, Fan Belt Adjusting
9003105109 90031-05109 New Genuine Part
9003105130 90031-05130 Bolt(For Head To Camshaft Bearing Cap)
9003105143 90031-05143 New Genuine Part
9003105144 90031-05144 Bolt(For Cylinder Head Set)
9003119116 90031-19116 New Genuine Part
9003119136 90031-19136 BOLT WWASHER
9011912344 90119-12344 New Genuine Part
9017912024 90179-12024 NUT
9020112023 90201-12023 New Genuine Part
9415081000 94150-81000 NUT FLANGE
