XZU305

Toyota DYNA-TOYOACE · 2003 · 3,249 parts · 171 categories

3,249 items

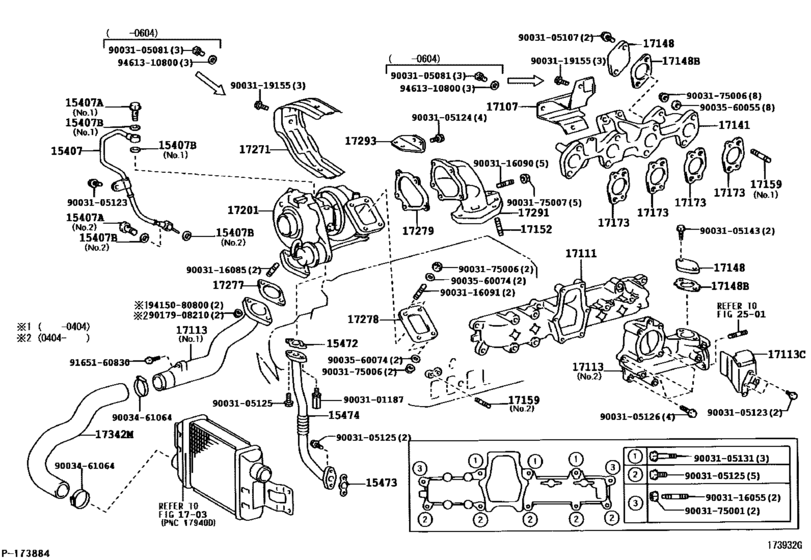

Manifold ([12.2003 - 10.2006] (0312-0610)N04C) 70

#	OEM	Part name
15407	29601-78100	Pipe Sub-Assy, Turbo Oil Inlet
15407	15407-78160	Pipe Sub-Assy, Turbo Oil Inlet
15407	90031-09073	Bolt, Union(For Turbo Oil Inlet Pipe)
15407	90034-01010	Bolt, Union(For Turbo Oil Inlet Pipe)
15407	90201-12030	Gasket(For Turbo Oil Inlet Pipe)
15407	90202-14004	Gasket(For Turbo Oil Inlet Pipe)
15472	15472-78010	Gasket, Turbo Oil Outlet, No.1
15472	15472-E0050	Gasket, Turbo Oil Outlet, No.2
15472	15472-78011	Gasket, Turbo Oil Outlet, No.1
15473	15471-78010	Gasket, Turbo Oil Inlet
15473	15471-78011	Gasket, Turbo Oil Inlet
15474	29601-78120	Pipe, Turbo Oil Outlet
17107	17107-78060	Insulator Sub-Assy, Exhaust Manifold Heat
17107	17107-E0061	Insulator Sub-assy, Exhaust Manifold Heat
17107	17107-78061	Insulator Sub-Assy, Exhaust Manifold Heat
17111	17111-78050	Manifold, Intake
17111	17111-E0210	Manifold, Intake
17113	17113-78090	Pipe, Intake
17113	17113-E0J80	Pipe, Intake
17113	17113-78120	Pipe, Intake
17113	17113-E0A50	Pipe, Intake
17113	17113-78121	Pipe, Intake
17113	17113-78122	Pipe, Intake
17113	17107-78080	Insulator, Intake Pipe
17141	17141-78081	Manifold, Exhaust
17148	17148-78020	Plate, Exhaust Manifold(For Egr Inlet)
17148	17148-E0060	Plate, Exhaust Manifold(For Egr Inlet)
17148	25685-78020	Gasket, Egr Cooler, No.1
17152	90031-16091	Bolt, Stud(For Manifold To Exhaust Pipe)
17159	90031-16069	Bolt, Stud(For Exhaust Manifold To Cylinder Head)
17159	90031-16085	Bolt, Stud(For Manifold To Cylinder Head)
17173	17173-78040	Gasket, Exhaust Manifold To Head
17173	17173-78080	Gasket, Exhaust Manifold To Head
17201	17201-78090	Turbocharger Sub-Assy
17201	17201-E0640	Turbocharger Sub-assy
17201	17201-78091	Turbocharger Sub-Assy
17271	17271-78030	Insulator, Turbo, No.1
17271	17271-E0391	Insulator, Turbo, No.1
17277	17277-78010	Gasket, Compressor Outlet
17277	17277-78020	Gasket, Compressor Outlet
17277	17277-78030	Gasket, Compressor Outlet
17278	17278-78020	Gasket, Turbo To Exhaust Manifold
17279	17278-78030	Gasket, Turbine Outlet Elbow
17291	17291-78042	Elbow, Turbine Outlet
17293	17455-78140	Stay, Turbocharger
17342	17342-78020	Hose, Air, No.2
17342	17342-78021	Hose, Air, No.2
9003101187	90031-01187	New Genuine Part
9003105081	90031-05081	New Genuine Part
9003105107	90031-05107	New Genuine Part
9003105123	90031-05123	Bolt(For Cylinder Head Cover)
9003105124	90031-05124	New Genuine Part
9003105125	90031-05125	New Genuine Part
9003105126	90031-05126	New Genuine Part
9003105131	90031-05131	BOLT FLANGE
9003105143	90031-05143	New Genuine Part
9003116055	90031-16055	Bolt, Stud(For Manifold To Cylinder Head)
9003116090	90031-16090	New Genuine Part
9003119155	90031-19155	Bolt(For Turbocharger Stay)
9003175001	90031-75001	New Genuine Part
9003175006	90031-75006	NUTFLANGE
9003175007	90031-75007	NUTFLANGE
9003461064	90034-61064	Clamp, Hose(For Intercooler)
9003461064	90034-60046	Clamp, Hose, No.2(For Intercooler)
9003560055	90035-60055	SPACER
9003560074	90035-60074	SPACER
9017908210	90179-08210	NUT
9165160830	91651-60830	Bolt (For Transfer Power Take-Off Cover)
9415080800	94150-80800	NUT, FLANGE
9461310800	94613-10800	Spacer (For Control Select Lever Support)

OEM	Part name	Category
15407-78160	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
15471-78010	Gasket, Turbo Oil Inlet	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
15471-78011	Gasket, Turbo Oil Inlet	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
15472-78010	Gasket, Turbo Oil Outlet, No.1	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
15472-78011	Gasket, Turbo Oil Outlet, No.1	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
15472-E0050	Gasket, Turbo Oil Outlet, No.2	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17107-78060	Insulator Sub-Assy, Exhaust Manifold Heat	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17107-78061	Insulator Sub-Assy, Exhaust Manifold Heat	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17107-78080	Insulator, Intake Pipe	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17107-E0061	Insulator Sub-assy, Exhaust Manifold Heat	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17111-78050	Manifold, Intake	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17111-E0210	Manifold, Intake	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17113-78090	Pipe, Intake	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17113-78120	Pipe, Intake	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17113-78121	Pipe, Intake	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17113-78122	Pipe, Intake	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17113-E0A50	Pipe, Intake	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17113-E0J80	Pipe, Intake	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17141-78081	Manifold, Exhaust	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17148-78020	Plate, Exhaust Manifold(For Egr Inlet)	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17148-E0060	Plate, Exhaust Manifold(For Egr Inlet)	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17173-78040	Gasket, Exhaust Manifold To Head	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17173-78080	Gasket, Exhaust Manifold To Head	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17201-78090	Turbocharger Sub-Assy	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17201-78091	Turbocharger Sub-Assy	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17201-E0640	Turbocharger Sub-assy	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17271-78030	Insulator, Turbo, No.1	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17271-E0391	Insulator, Turbo, No.1	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17277-78010	Gasket, Compressor Outlet	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17277-78020	Gasket, Compressor Outlet	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17277-78030	Gasket, Compressor Outlet	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17278-78020	Gasket, Turbo To Exhaust Manifold	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17278-78030	Gasket, Turbine Outlet Elbow	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17291-78042	Elbow, Turbine Outlet	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17342-78020	Hose, Air, No.2	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17342-78021	Hose, Air, No.2	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
17455-78140	Stay, Turbocharger	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
25685-78020	Gasket, Egr Cooler, No.1	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
29601-78100	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
29601-78120	Pipe, Turbo Oil Outlet	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-01187	New Genuine Part	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05081	New Genuine Part	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05107	New Genuine Part	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05123	Bolt(For Cylinder Head Cover)	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05124	New Genuine Part	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05125	New Genuine Part	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05126	New Genuine Part	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05131	BOLT FLANGE	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05143	New Genuine Part	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-09073	Bolt, Union(For Turbo Oil Inlet Pipe)	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-16055	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-16069	Bolt, Stud(For Exhaust Manifold To Cylinder Head)	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-16085	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-16090	New Genuine Part	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-16091	Bolt, Stud(For Manifold To Exhaust Pipe)	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-19155	Bolt(For Turbocharger Stay)	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-75001	New Genuine Part	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-75006	NUTFLANGE	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90031-75007	NUTFLANGE	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90034-01010	Bolt, Union(For Turbo Oil Inlet Pipe)	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90034-60046	Clamp, Hose, No.2(For Intercooler)	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90034-61064	Clamp, Hose(For Intercooler)	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90035-60055	SPACER	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90035-60074	SPACER	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90179-08210	NUT	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90201-12030	Gasket(For Turbo Oil Inlet Pipe)	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
90202-14004	Gasket(For Turbo Oil Inlet Pipe)	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
91651-60830	Bolt (For Transfer Power Take-Off Cover)	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
94150-80800	NUT, FLANGE	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
94613-10800	Spacer (For Control Select Lever Support)	Manifold ([12.2003 - 10.2006] (0312-0610)N04C)
