XZU305

Toyota DYNA-TOYOACE · 2003 · 3,249 parts · 171 categories
XZU305 ×

← Back to categories

3,249 items

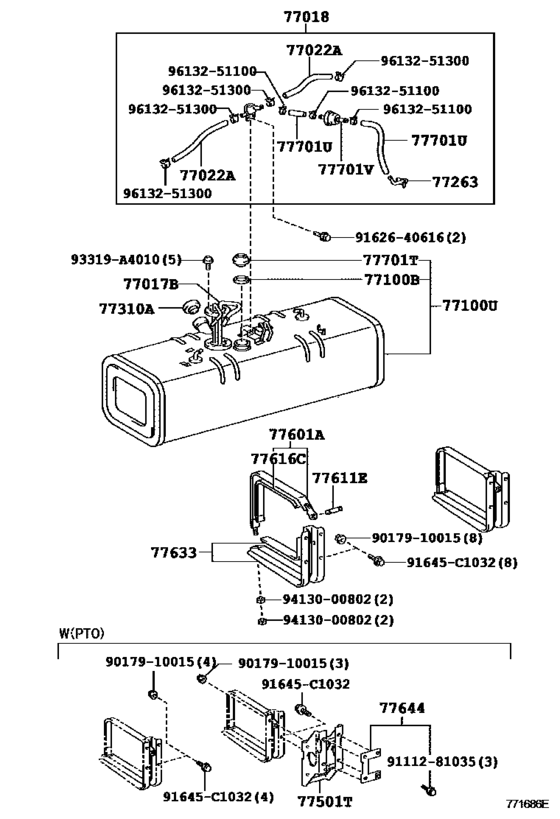

Fuel Tank & Tube ([01.2005 - 10.2006] FUEL TANK (0501-0610)XZU305,345) 34
#OEMPart name
77017 77017-37010 Tube Sub-Assy, Fuel Tank Vent
77018 77018-37050 Valve Sub-Assy, Fuel Vapour Separate
77018 77018-37170 Valve Sub-Assy, Fuel Vapour Separate
77022 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77100 90430-12245 Gasket(For Fuel Tank)
77100 90430-37001 Gasket(For Fuel Tank)
77100 77001-37211 Tank Sub-Assy, Fuel
77100 77001-37212 Tank Sub-Assy, Fuel
77100 77001-37432 Tank Assy, Fuel
77263 77244-37010 Joint, Fuel Tube, No.2
77310 77310-60100 Cap Assy, Fuel Tank
77501 77501-37260 Bracket Sub-Assy, Fuel Tank
77601 77601-36140 Band Sub-Assy, Fuel Tank, No.1
77601 77601-37030 Band Sub-Assy, Fuel Tank, No.1
77601 77601-36150 Band Sub-Assy, Fuel Tank, No.1
77601 77601-37041 Band Sub-Assy, Fuel Tank, No.1
77611 77629-36010 Pin (For Fuel Tank Band)
77616 77616-36030 Band, Fuel Tank
77633 77501-37080 Stay, Fuel Tank
77633 77633-37100 Stay, Fuel Tank
77644 77644-37101 Bolt, Fuel Tank
77701 90917-10041 Valve, Check
77701 95333-06010 Hose, Fuel
77701 95333-06040 Hose
77701 90917-10067 Valve, Check (For Main Fuel Tank)
91645 91645-C1032 Bolt, Fuel Tank
93319 93319-A4010 SCREW WWASHER
9017910015 90179-10015 NUT
9111281035 91112-81035 New Genuine Part
9162640616 91626-40616 New Genuine Part
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9613251100 96132-51100 Clip (For Hose)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
