Search › Model › XZU305
XZU305

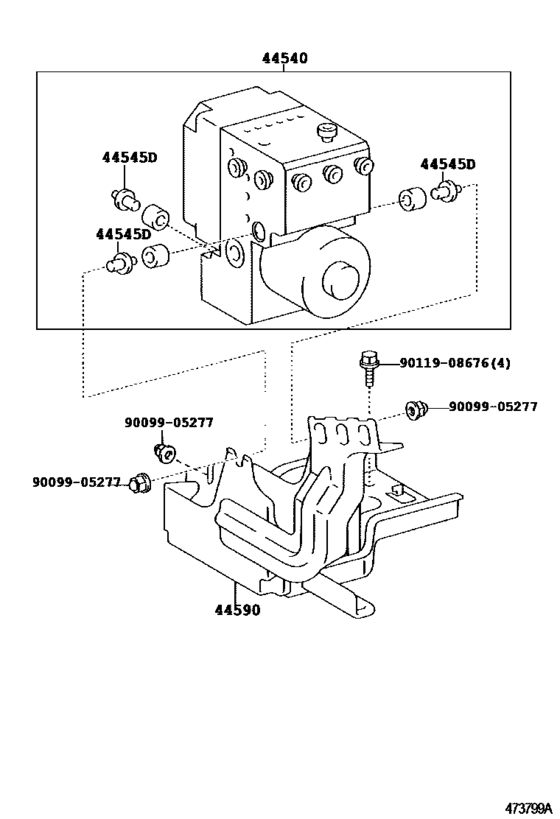

Brake Tube & Clamp ([12.2003 - ] W(ABS) (0312- )XZU305,345 ; (0712- )SA) 5
| # | OEM | Part name |
|---|---|---|
| 44540 | 44050-37040 | Actuator Assy, Abs & Traction |
| 44545 | 44545-42020 | Holder, Brake Actuator Bolt |
| 44590 | 44590-37030 | Bracket Assy, Brake Actuator |
| 9009905277 | 90099-05277 | New Genuine Part |
| 9011908676 | 90119-08676 | BOLT WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 44050-37040 | Actuator Assy, Abs & Traction | Brake Tube & Clamp ([12.2003 - ] W(ABS) (0312- )XZU305,345 ; (0712- )SA) |
| 44545-42020 | Holder, Brake Actuator Bolt | Brake Tube & Clamp ([12.2003 - ] W(ABS) (0312- )XZU305,345 ; (0712- )SA) |
| 44590-37030 | Bracket Assy, Brake Actuator | Brake Tube & Clamp ([12.2003 - ] W(ABS) (0312- )XZU305,345 ; (0712- )SA) |
| 90099-05277 | New Genuine Part | Brake Tube & Clamp ([12.2003 - ] W(ABS) (0312- )XZU305,345 ; (0712- )SA) |
| 90119-08676 | BOLT WWASHER | Brake Tube & Clamp ([12.2003 - ] W(ABS) (0312- )XZU305,345 ; (0712- )SA) |
