XZU301

Toyota DYNA-TOYOACE · 1999 · 3,529 parts · 211 categories

3,529 items

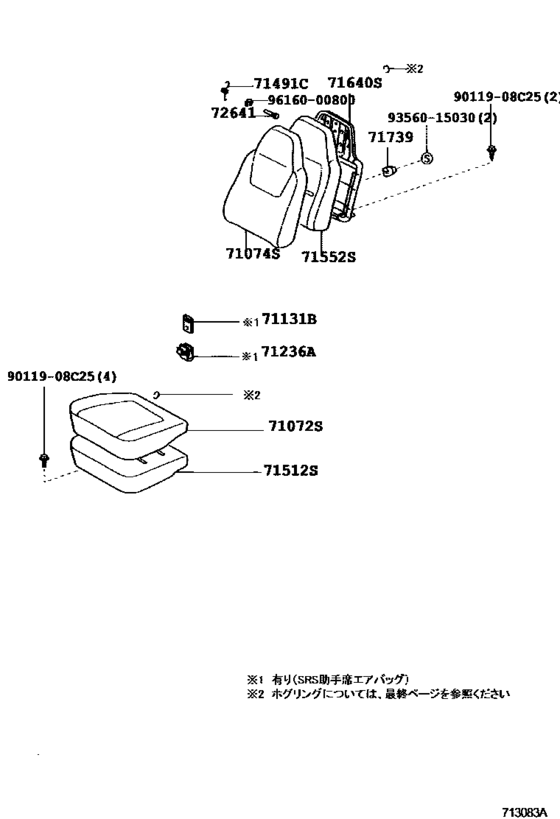

Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3) 28

#	OEM	Part name
71072	71072-3V070-B0	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-3V100-B0	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-3V310-B0	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-3V330-B0	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-3V320-B0	Cover, Front Seat Cushion, Lh(For Separate Type)
71074	70169-37050-B0	Cover, Front Seat Back, Lh(For Separate Type)
71074	70169-37060-B0	Cover, Front Seat Back, Lh(For Separate Type)
71074	70169-37250-B0	Cover, Front Seat Back, Lh(For Separate Type)
71074	70169-37300-B0	Cover, Front Seat Back, Lh(For Separate Type)
71074	70169-37260-B0	Cover, Front Seat Back, Lh(For Separate Type)
71074	70169-37260-B1	Cover, Front Seat Back, Lh(For Separate Type)
71131	71131-37030	Plate, Front Seat Cushion, No.1
71236	71236-37010	Clamp, Rear Seat Cushion Spring
71491	71491-89101	Spring, Rear Seat Back Lock Hook
71512	71052-37070	Pad, Front Seat Cushion, Lh (For Separate Type)
71512	71052-37080	Pad, Front Seat Cushion, Lh (For Separate Type)
71512	71502-37160	Pad, Front Seat Cushion, Lh (For Separate Type)
71512	71502-37180	Pad, Front Seat Cushion, Lh (For Separate Type)
71552	71552-37090	Pad, Front Seat Back, Lh(For Separate Type)
71552	71552-37100	Pad, Front Seat Back, Lh(For Separate Type)
71640	71014-37070	Spring Assy, Front Seat Back, Lh(For Separate Type)
71640	71014-37100	Spring Assy, Front Seat Back, Lh(For Separate Type)
71640	71014-37050	Spring Assy, Front Seat Back, Lh(For Separate Type)
71739	71739-37010	Cushion, Seat Support
72641	72641-37010	Pin, Rear Seat Back Lock
9011908	90119-08C25	BOLT WWASHER
9356015030	93560-15030	New Genuine Part
9616000800	96160-00800	Ring, E(For Counter Weight)

OEM	Part name	Category
70169-37050-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
70169-37060-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
70169-37250-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
70169-37260-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
70169-37260-B1	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
70169-37300-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
71014-37050	Spring Assy, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
71014-37070	Spring Assy, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
71014-37100	Spring Assy, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
71052-37070	Pad, Front Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
71052-37080	Pad, Front Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
71072-3V070-B0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
71072-3V100-B0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
71072-3V310-B0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
71072-3V320-B0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
71072-3V330-B0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
71131-37030	Plate, Front Seat Cushion, No.1	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
71236-37010	Clamp, Rear Seat Cushion Spring	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
71491-89101	Spring, Rear Seat Back Lock Hook	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
71502-37160	Pad, Front Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
71502-37180	Pad, Front Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
71552-37090	Pad, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
71552-37100	Pad, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
71739-37010	Cushion, Seat Support	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
72641-37010	Pin, Rear Seat Back Lock	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
90119-08C25	BOLT WWASHER	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
93560-15030	New Genuine Part	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
96160-00800	Ring, E(For Counter Weight)	Seat & Seat Track ([06.2004 - ] ｼﾞﾖｼﾕｾｷ (0310-0406)XZU304,344..T3,T4,T5 ; (0406- )XZU 301..CBU,IV6 ; (0406- )XZU301..D M6,T3,T4,T5..IV3)
