Search › Model › XZU281
XZU281

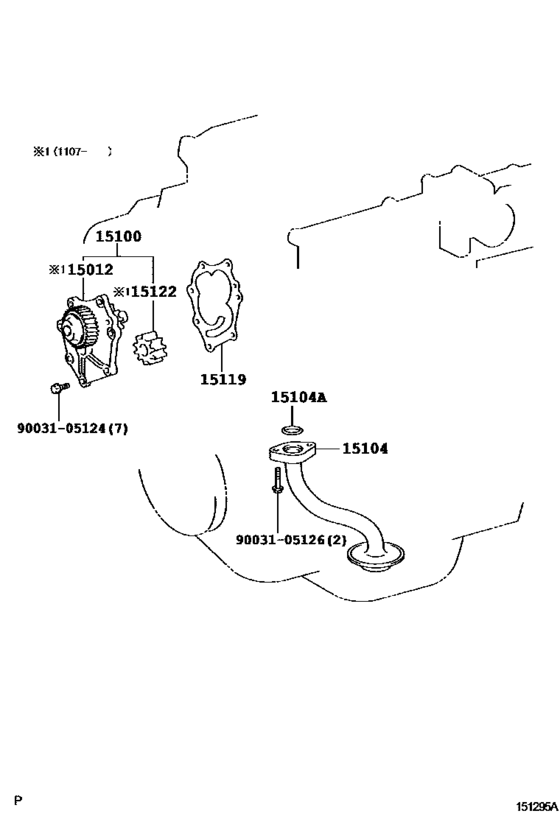

Engine Oil Pump ([06.2004 - ] (0406- )N04C) 8
| # | OEM | Part name |
|---|---|---|
| 15100 | 15100-78030 | Pump Assy, Oil |
| 15100 | 15110-E0321 | Pump Assy, Oil |
| 15104 | 15401-78040 | Strainer Sub-Assy, Oil |
| 15104 | 90301-21003 | Ring, O(For Oil Strainer) |
| 15104 | 90033-01104 | Ring, O(For Oil Strainer) |
| 15119 | 15193-78010 | Gasket, Oil Pump Cover |
| 9003105124 | 90031-05124 | New Genuine Part |
| 9003105126 | 90031-05126 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 15100-78030 | Pump Assy, Oil | Engine Oil Pump ([06.2004 - ] (0406- )N04C) |
| 15110-E0321 | Pump Assy, Oil | Engine Oil Pump ([06.2004 - ] (0406- )N04C) |
| 15193-78010 | Gasket, Oil Pump Cover | Engine Oil Pump ([06.2004 - ] (0406- )N04C) |
| 15401-78040 | Strainer Sub-Assy, Oil | Engine Oil Pump ([06.2004 - ] (0406- )N04C) |
| 90031-05124 | New Genuine Part | Engine Oil Pump ([06.2004 - ] (0406- )N04C) |
| 90031-05126 | New Genuine Part | Engine Oil Pump ([06.2004 - ] (0406- )N04C) |
| 90033-01104 | Ring, O(For Oil Strainer) | Engine Oil Pump ([06.2004 - ] (0406- )N04C) |
| 90301-21003 | Ring, O(For Oil Strainer) | Engine Oil Pump ([06.2004 - ] (0406- )N04C) |
