Search › Model › XZU281

XZU281

Toyota QUICK-DELIVERY-URBAN-SUPPORTER · 2004 · 3,908 parts · 205 categories

← Back to categories

3,908 items

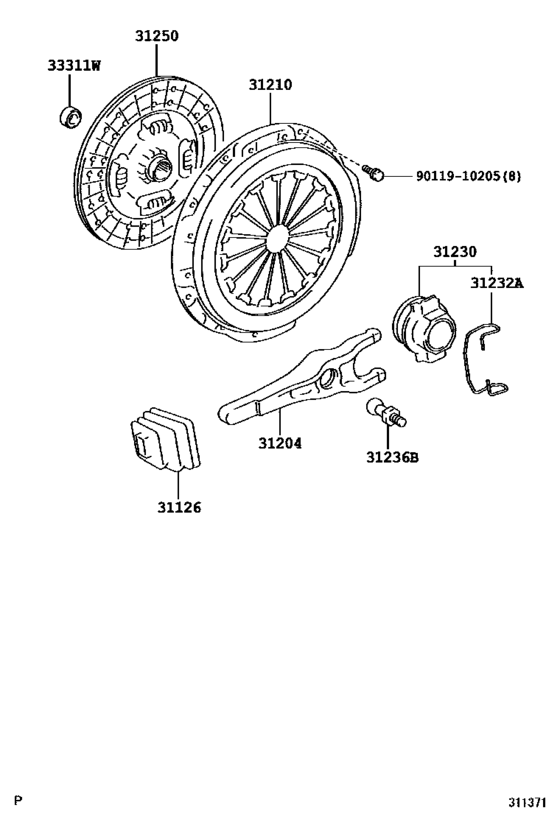

Clutch & Release Fork ([06.2004 - ] (0406- )DCR) 12

#	OEM	Part name
31126	31126-36070	Boot, Clutch Release Fork
31204	31204-37050	Fork Sub-Assy, Clutch Release
31204	31204-37051	Fork Sub-Assy, Clutch Release
31210	31210-37160	Cover Assy, Clutch
31210	31210-37161	Cover Assy, Clutch
31230	31230-37010	Bearing Assy, Clutch Release
31232	31232-37010	Clip, Release Bearing Hub
31236	31236-36060	Ball, Release Fork
31250	31250-36560	Disc Assy, Clutch
31250	31250-36561	Disc Assy, Clutch
33311	90363-17037	Bearing (For Input Shaft)
9011910205	90119-10205	Bolt

OEM	Part name	Category
31126-36070	Boot, Clutch Release Fork	Clutch & Release Fork ([06.2004 - ] (0406- )DCR)
31204-37050	Fork Sub-Assy, Clutch Release	Clutch & Release Fork ([06.2004 - ] (0406- )DCR)
31204-37051	Fork Sub-Assy, Clutch Release	Clutch & Release Fork ([06.2004 - ] (0406- )DCR)
31210-37160	Cover Assy, Clutch	Clutch & Release Fork ([06.2004 - ] (0406- )DCR)
31210-37161	Cover Assy, Clutch	Clutch & Release Fork ([06.2004 - ] (0406- )DCR)
31230-37010	Bearing Assy, Clutch Release	Clutch & Release Fork ([06.2004 - ] (0406- )DCR)
31232-37010	Clip, Release Bearing Hub	Clutch & Release Fork ([06.2004 - ] (0406- )DCR)
31236-36060	Ball, Release Fork	Clutch & Release Fork ([06.2004 - ] (0406- )DCR)
31250-36560	Disc Assy, Clutch	Clutch & Release Fork ([06.2004 - ] (0406- )DCR)
31250-36561	Disc Assy, Clutch	Clutch & Release Fork ([06.2004 - ] (0406- )DCR)
90119-10205	Bolt	Clutch & Release Fork ([06.2004 - ] (0406- )DCR)
90363-17037	Bearing (For Input Shaft)	Clutch & Release Fork ([06.2004 - ] (0406- )DCR)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 205
Collected: 2026-08-04
