Search › Model › XZC710

XZC710

Toyota DYNA-TOYOACE · 2011 · 3,591 parts · 239 categories

3,591 items

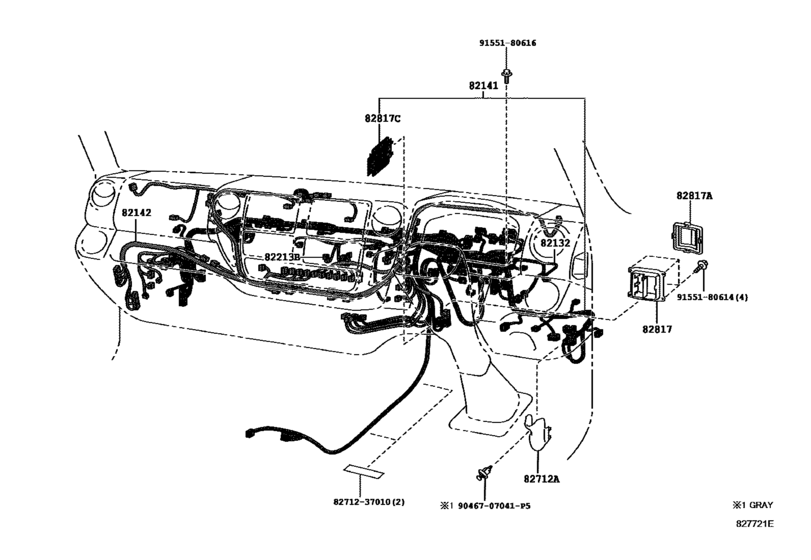

Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705)) 28

#	OEM	Part name
82132	82132-37250	Wire, Cowl, No.2
82141	82141-37N30	Wire, Instrument Panel
82141	82141-37N31	Wire, Instrument Panel
82141	82141-37N32	Wire, Instrument Panel
82141	82141-3V350	Wire, Instrument Panel
82141	82141-3V420	Wire, Instrument Panel
82141	82141-3V421	Wire, Instrument Panel
82142	82142-37A30	Wire, Instrument Panel, No.2
82142	82142-37A31	Wire, Instrument Panel, No.2
82142	82142-37A40	Wire, Instrument Panel, No.2
82142	82142-37A41	Wire, Instrument Panel, No.2
82142	82142-37A90	Wire, Instrument Panel, No.2
82142	82142-37A91	Wire, Instrument Panel, No.2
82142	82142-37L51	Wire, Instrument Panel, No.2
82142	82142-37L52	Wire, Instrument Panel, No.2
82142	82142-37Q10	Wire, Instrument Panel, No.2
82142	82142-37Q11	Wire, Instrument Panel, No.2
82142	82142-37Q20	Wire, Instrument Panel, No.2
82213	82213-37050	Wire, Heater
82213	82213-37190	Wire, Heater
82712	82712-37420	Support, Wiring Harness
82817	82817-37310	Protector, Wiring Harness, No.1
82817	82817-37320	Protector, Wiring Harness, No.2
82817	82817-37440	Protector, Wiring Harness, No.4
8271237010	82712-37010	Pad, Front Panel Cover
9046707041	90467-07041-P5	Clip, Instrument Panel
9155180614	91551-80614	Bolt(For Vacuum Transmitting Pipe)
9155180616	91551-80616	BOLT FLANGE

OEM	Part name	Category
82132-37250	Wire, Cowl, No.2	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82141-37N30	Wire, Instrument Panel	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82141-37N31	Wire, Instrument Panel	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82141-37N32	Wire, Instrument Panel	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82141-3V350	Wire, Instrument Panel	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82141-3V420	Wire, Instrument Panel	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82141-3V421	Wire, Instrument Panel	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82142-37A30	Wire, Instrument Panel, No.2	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82142-37A31	Wire, Instrument Panel, No.2	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82142-37A40	Wire, Instrument Panel, No.2	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82142-37A41	Wire, Instrument Panel, No.2	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82142-37A90	Wire, Instrument Panel, No.2	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82142-37A91	Wire, Instrument Panel, No.2	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82142-37L51	Wire, Instrument Panel, No.2	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82142-37L52	Wire, Instrument Panel, No.2	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82142-37Q10	Wire, Instrument Panel, No.2	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82142-37Q11	Wire, Instrument Panel, No.2	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82142-37Q20	Wire, Instrument Panel, No.2	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82213-37050	Wire, Heater	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82213-37190	Wire, Heater	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82712-37010	Pad, Front Panel Cover	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82712-37420	Support, Wiring Harness	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82817-37310	Protector, Wiring Harness, No.1	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82817-37320	Protector, Wiring Harness, No.2	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
82817-37440	Protector, Wiring Harness, No.4	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
90467-07041-P5	Clip, Instrument Panel	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
91551-80614	Bolt(For Vacuum Transmitting Pipe)	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
91551-80616	BOLT FLANGE	Wiring & Clamp ([07.2011 - 05.2017] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1705))
