XZC710

Toyota DYNA-TOYOACE · 2011 · 3,591 parts · 239 categories

← Back to categories

3,591 items

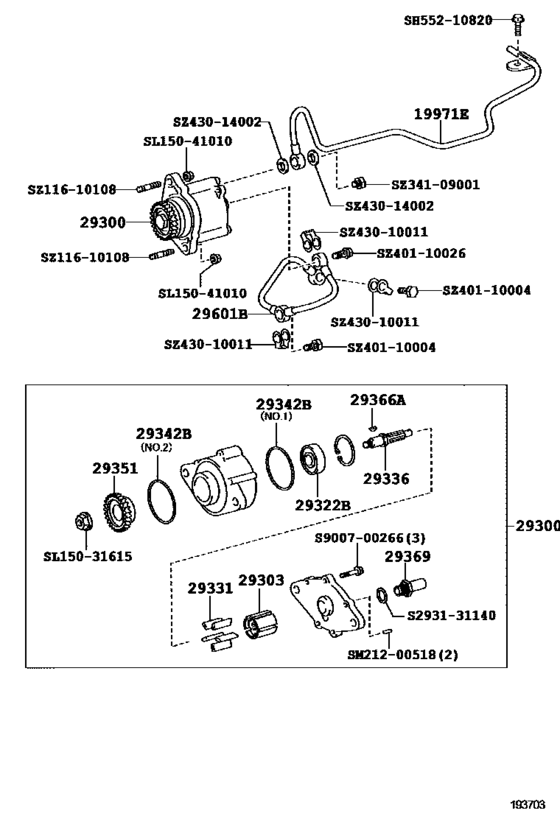

Vacuum Pump ([07.2011 - 02.2012] (1107-1202)) 8

#	OEM	Part name
0	29364-66010	Washer, Vacuum Pump
19971	87207-E0123	Pipe, Vacuum
29300	29300-E0051	Pump Assy, Vacuum
29300	29300-E0090	Pump Assy, Vacuum
29300	29300-E0100	Pump Assy, Vacuum
29342	29343-EV020	Packing, Vacuum Pump
29369	29369-EV020	Valve Sub-Assy, Check
29601	29601-E0320	Pipe Sub-Assy, Oil(For Vacuum Pump)

OEM	Part name	Category
29300-E0051	Pump Assy, Vacuum	Vacuum Pump ([07.2011 - 02.2012] (1107-1202))
29300-E0090	Pump Assy, Vacuum	Vacuum Pump ([07.2011 - 02.2012] (1107-1202))
29300-E0100	Pump Assy, Vacuum	Vacuum Pump ([07.2011 - 02.2012] (1107-1202))
29343-EV020	Packing, Vacuum Pump	Vacuum Pump ([07.2011 - 02.2012] (1107-1202))
29364-66010	Washer, Vacuum Pump	Vacuum Pump ([07.2011 - 02.2012] (1107-1202))
29369-EV020	Valve Sub-Assy, Check	Vacuum Pump ([07.2011 - 02.2012] (1107-1202))
29601-E0320	Pipe Sub-Assy, Oil(For Vacuum Pump)	Vacuum Pump ([07.2011 - 02.2012] (1107-1202))
87207-E0123	Pipe, Vacuum	Vacuum Pump ([07.2011 - 02.2012] (1107-1202))
