XZC710

Toyota DYNA-TOYOACE · 2011 · 3,591 parts · 239 categories

← Back to categories

3,591 items

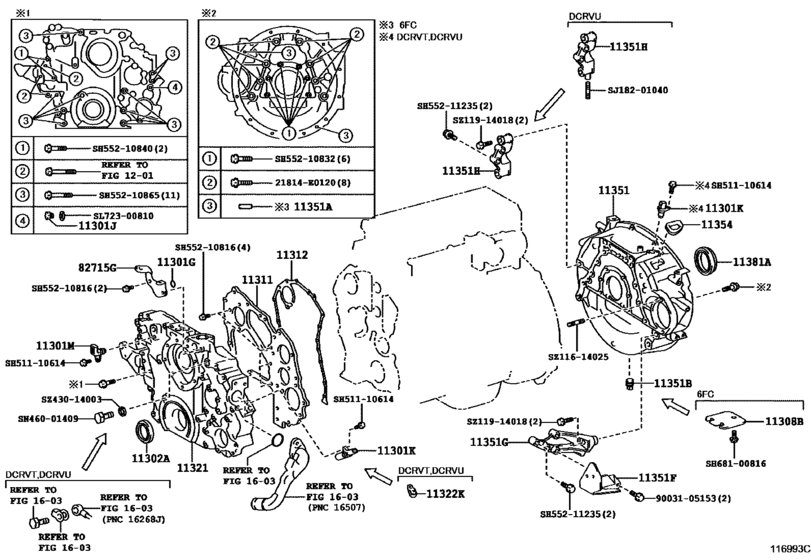

Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )) 17

#	OEM	Part name
11301	89411-E0040	Sensor, Crank Position
11321	11310-E0141	Case, Timing Gear
11321	11310-E0151	Case, Timing Gear
11321	11310-78081	Case, Timing Gear
11321	12511-E0021	Bracket Sub-Assy, Alternator
11321	11310-E0150	Case, Timing Gear
11351	11351-E0G92	Housing, Flywheel
11351	11351-E0G94	Housing, Flywheel
11351	11351-E0G93	Housing, Flywheel
11351	33119-37070	Plate, Stiffener, Lh(For Flywheel Housing)
11351	33119-37100	Plate, Stiffener, Lh(For Flywheel Housing)
11351	11353-E0060	Stay, Lh(For Flywheel Housing)
11354	11354-E0060	Seal, Flywheel Housing Dust
82715	82715-3VL60	Bracket, Wiring Harness Clamp
82715	82715-E0X90	Bracket, Wiring Harness Clamp
9003105153	90031-05153	BOLT FLANGE
9223372036854775807	21814-E0120	Bolt, Fuel Inlet

OEM	Part name	Category
11310-78081	Case, Timing Gear	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- ))
11310-E0141	Case, Timing Gear	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- ))
11310-E0150	Case, Timing Gear	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- ))
11310-E0151	Case, Timing Gear	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- ))
11351-E0G92	Housing, Flywheel	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- ))
11351-E0G93	Housing, Flywheel	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- ))
11351-E0G94	Housing, Flywheel	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- ))
11353-E0060	Stay, Lh(For Flywheel Housing)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- ))
11354-E0060	Seal, Flywheel Housing Dust	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- ))
12511-E0021	Bracket Sub-Assy, Alternator	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- ))
21814-E0120	Bolt, Fuel Inlet	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- ))
33119-37070	Plate, Stiffener, Lh(For Flywheel Housing)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- ))
33119-37100	Plate, Stiffener, Lh(For Flywheel Housing)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- ))
82715-3VL60	Bracket, Wiring Harness Clamp	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- ))
82715-E0X90	Bracket, Wiring Harness Clamp	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- ))
89411-E0040	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- ))
90031-05153	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 239
Collected: 2026-08-03
