XZC710

Toyota DYNA-TOYOACE · 2011 · 3,591 parts · 239 categories

← Back to categories

3,591 items

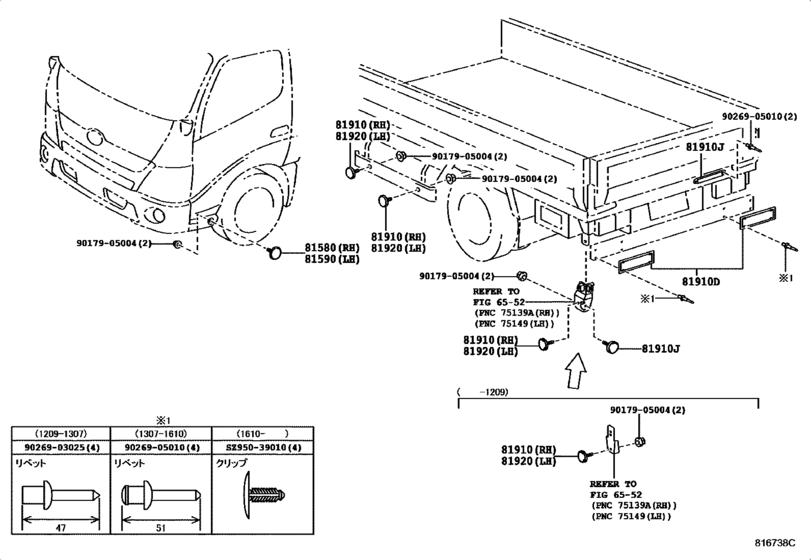

Reflex Reflector ([07.2011 - ] (1107- )XZU700..CBU ; (1107- )XZC710,XZU71 0,720,730,775) 6

#	OEM	Part name
81580	81910-37070	Reflector Assy, Reflex Side, Rh
81910	81910-25040	Reflector Assy, Reflex, Rear
81910	81910-95401	Reflector Assy, Reflex, Rh
9017905004	90179-05004	NUT
9026903025	90269-03025	RIVET
9026905010	90269-05010	New Genuine Part

OEM	Part name	Category
81910-25040	Reflector Assy, Reflex, Rear	Reflex Reflector ([07.2011 - ] (1107- )XZU700..CBU ; (1107- )XZC710,XZU71 0,720,730,775)
81910-37070	Reflector Assy, Reflex Side, Rh	Reflex Reflector ([07.2011 - ] (1107- )XZU700..CBU ; (1107- )XZC710,XZU71 0,720,730,775)
81910-95401	Reflector Assy, Reflex, Rh	Reflex Reflector ([07.2011 - ] (1107- )XZU700..CBU ; (1107- )XZC710,XZU71 0,720,730,775)
90179-05004	NUT	Reflex Reflector ([07.2011 - ] (1107- )XZU700..CBU ; (1107- )XZC710,XZU71 0,720,730,775)
90269-03025	RIVET	Reflex Reflector ([07.2011 - ] (1107- )XZU700..CBU ; (1107- )XZC710,XZU71 0,720,730,775)
90269-05010	New Genuine Part	Reflex Reflector ([07.2011 - ] (1107- )XZU700..CBU ; (1107- )XZC710,XZU71 0,720,730,775)
