XZC710

Toyota DYNA-TOYOACE · 2011 · 3,591 parts · 239 categories

3,591 items

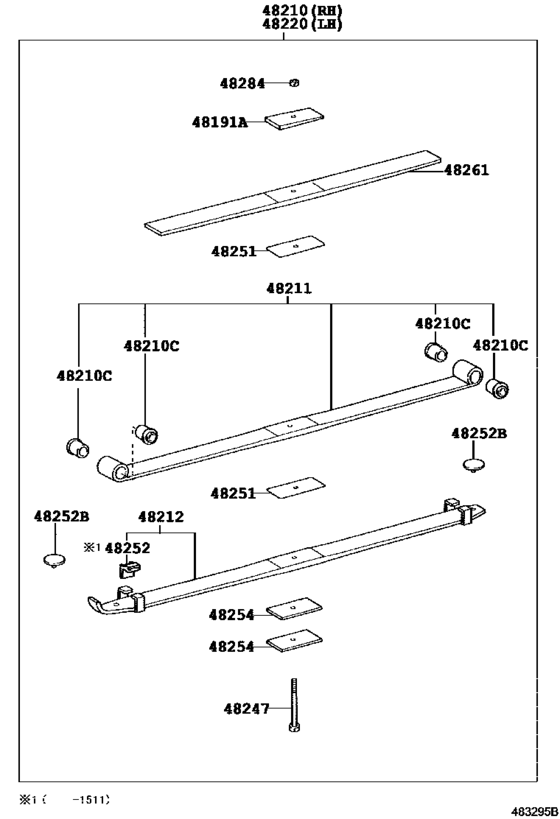

Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T) 34

#	OEM	Part name
48191	48192-37100	Wedge, Caster(For Rear Leaf Spring)
48210	48210-37C30	Spring Assy, Rear Rh
48210	48210-37C31	Spring Assy, Rear Rh
48210	48210-3V470	Spring Assy, Rear Rh
48210	48210-3V471	Spring Assy, Rear Rh
48210	90389-16026	Bush, Front Spring No.2 Shackle
48211	48201-37C30	Leaf, Rear Spring, No.1
48211	48201-37C31	Leaf, Rear Spring, No.1
48211	48201-3V470	Leaf, Rear Spring, No.1
48211	48201-3V471	Leaf, Rear Spring, No.1
48212	48202-37C30	Leaf, Rear Spring, No.2
48212	48202-37C31	Leaf, Rear Spring, No.2
48212	48252-37521	Silencer, Front Spring, No.1
48212	48202-3V470	Leaf, Rear Spring, No.2
48212	48202-3V471	Leaf, Rear Spring, No.2
48247	48247-37C31	Bolt, Rear Spring, Center
48247	48247-37F91	Bolt, Rear Spring, Center
48247	48247-3V031	Bolt, Rear Spring, Center
48247	48247-3V050	Bolt, Rear Spring, Center
48251	48253-3V020	Spacer, Rear Spring Leaf
48252	48252-37380	Silencer, Rear Spring
48252	48252-37670	Silencer, Front Spring, No.1
48254	48214-37N60	Spacer, Rear Spring Leaf
48254	48253-37L11	Spacer, Rear Spring Leaf
48254	48254-3V020	Spacer, Rear Spring, No.1
48254	48254-3V070	Spacer, Rear Spring Leaf
48254	48254-3V080	Spacer, Rear Spring, No.1
48254	48264-37N60	Spacer, Rear Spring Leaf
48261	48213-37C30	Leaf, Rear Helper Spring, No.1
48261	48213-37C31	Leaf, Rear Helper Spring, No.1
48261	48213-3V470	Leaf, Rear Helper Spring, No.1
48261	48213-3V471	Leaf, Rear Helper Spring, No.1
48284	48284-0W070	Nut, Rear Spring Center Bolt
48284	48284-3B750	Nut, Rear Spring Center Bolt

OEM	Part name	Category
48192-37100	Wedge, Caster(For Rear Leaf Spring)	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48201-37C30	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48201-37C31	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48201-3V470	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48201-3V471	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48202-37C30	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48202-37C31	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48202-3V470	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48202-3V471	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48210-37C30	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48210-37C31	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48210-3V470	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48210-3V471	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48213-37C30	Leaf, Rear Helper Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48213-37C31	Leaf, Rear Helper Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48213-3V470	Leaf, Rear Helper Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48213-3V471	Leaf, Rear Helper Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48214-37N60	Spacer, Rear Spring Leaf	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48247-37C31	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48247-37F91	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48247-3V031	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48247-3V050	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48252-37380	Silencer, Rear Spring	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48252-37521	Silencer, Front Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48252-37670	Silencer, Front Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48253-37L11	Spacer, Rear Spring Leaf	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48253-3V020	Spacer, Rear Spring Leaf	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48254-3V020	Spacer, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48254-3V070	Spacer, Rear Spring Leaf	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48254-3V080	Spacer, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48264-37N60	Spacer, Rear Spring Leaf	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48284-0W070	Nut, Rear Spring Center Bolt	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
48284-3B750	Nut, Rear Spring Center Bolt	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
90389-16026	Bush, Front Spring No.2 Shackle	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 1-LEAF (1107- )XZC710,XZU700,710,720..T4..20T)
