Search › Model › XZC710

XZC710

Toyota DYNA-TOYOACE · 2011 · 3,591 parts · 239 categories

3,591 items

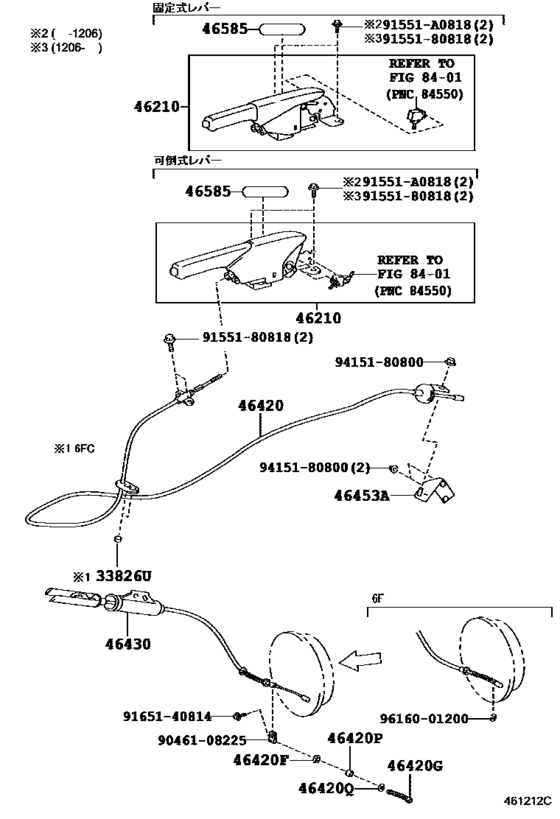

Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T) 20

#	OEM	Part name
33826	33577-37050	Cover, Control Shaft Hole
46210	46210-37130-C0	Lever Assy, Parking Brake
46210	46210-37150-C0	Lever Assy, Parking Brake
46210	46211-37021-C0	Lever Assy, Parking Brake
46420	46420-37A40	Cable Assy, Parking Brake, No.2
46420	90303-10001	Seal, Dust(For Parking Brake Cable)
46420	90501-14003	Spring(For Parking Cable Inner Wire Set)
46420	90560-08002	Spacer(For Parking Brake Handle)
46420	96160-00700	Ring, E(For Chain Tensioner Slipper)
46430	46430-37830	Cable Assy, Parking Brake, No.3
46453	46453-37200	Bracket, Cable Support, No.3
46585	46585-37020	Plate, Parking Brake Caution
46585	46585-37030	Plate, Parking Brake Caution
91551	91551-A0818	BOLT FLANGE
9046108225	90461-08225	Clamp, No.3(For Parking Brake Cable)
9155180818	91551-80818	Bolt, Union(For Clutch Master Cylinder)
9165140814	91651-40814	BOLT
9165140814	90080-11228	New Genuine Part
9415180800	94151-80800	Nut (For Transmission Control Cable)
9616001200	96160-01200	Ring, E(For Clutch Release Cable)

OEM	Part name	Category
33577-37050	Cover, Control Shaft Hole	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
46210-37130-C0	Lever Assy, Parking Brake	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
46210-37150-C0	Lever Assy, Parking Brake	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
46211-37021-C0	Lever Assy, Parking Brake	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
46420-37A40	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
46430-37830	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
46453-37200	Bracket, Cable Support, No.3	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
46585-37020	Plate, Parking Brake Caution	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
46585-37030	Plate, Parking Brake Caution	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
90080-11228	New Genuine Part	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
90303-10001	Seal, Dust(For Parking Brake Cable)	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
90461-08225	Clamp, No.3(For Parking Brake Cable)	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
90501-14003	Spring(For Parking Cable Inner Wire Set)	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
90560-08002	Spacer(For Parking Brake Handle)	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
91551-80818	Bolt, Union(For Clutch Master Cylinder)	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
91551-A0818	BOLT FLANGE	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
91651-40814	BOLT	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
94151-80800	Nut (For Transmission Control Cable)	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
96160-00700	Ring, E(For Chain Tensioner Slipper)	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
96160-01200	Ring, E(For Clutch Release Cable)	Parking Brake & Cable ([07.2011 - ] (1107- )XZC710,XZU700,710,720..20T)
