XZC710

Toyota DYNA-TOYOACE · 2011 · 3,591 parts · 239 categories

3,591 items

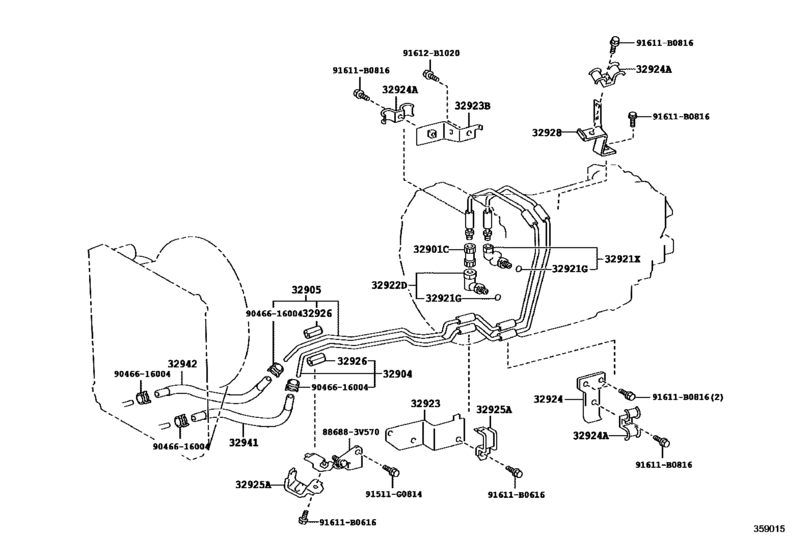

Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC) 21

#	OEM	Part name
32901	32901-37030	Union Sub-Assy, Oil Cooler
32904	32904-37161	Tube Sub-Assy, Oil Cooler Inlet, No.1
32905	32905-37162	Tube Sub-Assy, Oil Cooler Outlet, No.1
32921	90301-11006	O Ring, Transaxle Case Elbow
32921	90407-20010	Union(For Oil Cooler Tube)
32922	90407-20009	Union(For Oil Cooler Tube)
32923	32927-37021	Clamp, Automatic Transmission Oil Cooler Tube
32923	32923-37011	Clamp, Automatic Transmission Oil Cooler Tube, No.1
32924	32924-37010	Clamp, Oil Cooler Tube, No.2
32924	90462-12076	Clamp, Automatic Transmission Oil Cooler Tube
32925	32929-25020	Clamp, Automatic Transmission Oil Cooler Tube
32926	32926-60010	Cushion, Oil Cooler Tube(Atm)
32928	32928-37041	Clamp, Flexible Hose, No.1
32941	32941-37140	Hose, Oil Cooler Inlet, No.1
32942	32942-37020	Hose, Oil Cooler Outlet, No.1
91511	91511-G0814	New Genuine Part
91611	91611-B0616	Bolt(For Transaxle Case Receiver)
91611	91611-B0816	Bolt
91612	91612-B1020	Bolt (For Transfer Case)Cover No.2
886883	88688-3V570	Bracket, Cooler Diaphragm
9046616004	90466-16004	Clip(For Ventilation Hose No.2)

OEM	Part name	Category
32901-37030	Union Sub-Assy, Oil Cooler	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
32904-37161	Tube Sub-Assy, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
32905-37162	Tube Sub-Assy, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
32923-37011	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
32924-37010	Clamp, Oil Cooler Tube, No.2	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
32926-60010	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
32927-37021	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
32928-37041	Clamp, Flexible Hose, No.1	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
32929-25020	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
32941-37140	Hose, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
32942-37020	Hose, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
88688-3V570	Bracket, Cooler Diaphragm	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
90301-11006	O Ring, Transaxle Case Elbow	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
90407-20009	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
90407-20010	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
90462-12076	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
90466-16004	Clip(For Ventilation Hose No.2)	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
91511-G0814	New Genuine Part	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
91611-B0616	Bolt(For Transaxle Case Receiver)	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
91611-B0816	Bolt	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Oil Cooler & Tube (Atm) ([07.2011 - ] A860E (1107- )6FC)
