Search › Model › XZC710

XZC710

Toyota DYNA-TOYOACE · 2011 · 3,591 parts · 239 categories
XZC710 ×

← Back to categories

3,591 items

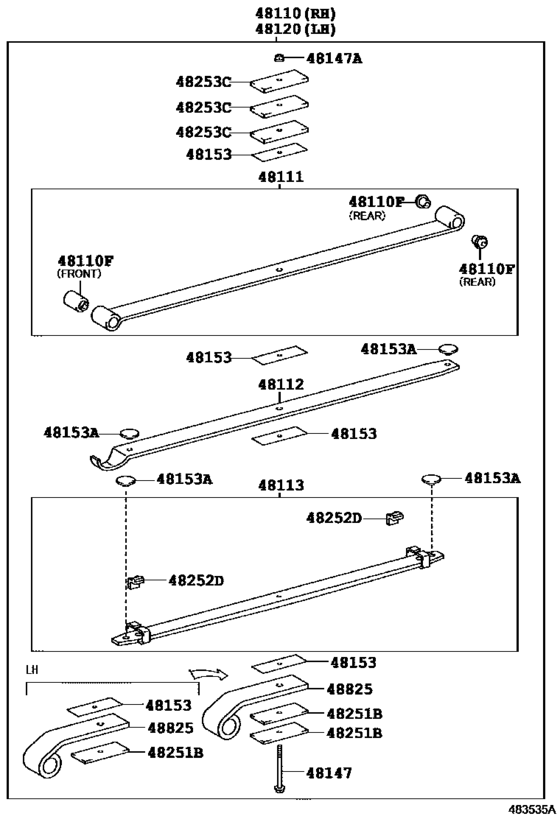

Front Spring & Shock Absorber ([07.2011 - 09.2015] 3-LEAFｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ&ﾃﾞｨｽﾁｬｰｼﾞﾍｯﾄﾞﾗﾝﾌﾟ (1107-1509)XZC710,XZU700,710,720..SCB..20T) 122
#OEMPart name
48110 48110-37J41 Spring Assy, Front, Rh
48110 48110-37J42 Spring Assy, Front, Rh
48110 48110-37K31 Spring Assy, Front, Rh
48110 48110-37K32 Spring Assy, Front, Rh
48110 48110-37L11 Spring Assy, Front, Rh
48110 48110-37L12 Spring Assy, Front, Rh
48110 48110-37M91 Spring Assy, Front, Rh
48110 48110-37M92 Spring Assy, Front, Rh
48110 48110-37X20 Spring Assy, Front, Rh
48110 48110-37X21 Spring Assy, Front, Rh
48110 48110-37X60 Spring Assy, Front, Rh
48110 48110-37X61 Spring Assy, Front, Rh
48110 90389-16028 Bimetal Formed Bush(For Front Spring)
48110 90389-16029 Bimetal Formed Bush(For Front Spring)
48111 48101-37J41 Leaf, Front Spring, No.1
48111 48101-37J42 Leaf, Front Spring, No.1
48111 48101-37J51 Leaf, Front Spring, No.1
48111 48101-37J52 Leaf, Front Spring, No.1
48111 48101-37K01 Leaf, Front Spring, No.1
48111 48101-37K02 Leaf, Front Spring, No.1
48111 48101-37K31 Leaf, Front Spring, No.1
48111 48101-37K32 Leaf, Front Spring, No.1
48111 48101-37K41 Leaf, Front Spring, No.1
48111 48101-37K42 Leaf, Front Spring, No.1
48111 48101-37K71 Leaf, Front Spring, No.1
48111 48101-37K72 Leaf, Front Spring, No.1
48111 48101-37K91 Leaf, Front Spring, No.1
48111 48101-37K92 Leaf, Front Spring, No.1
48111 48101-37L11 Leaf, Front Spring, No.1
48111 48101-37L12 Leaf, Front Spring, No.1
48111 48101-37L21 Leaf, Front Spring, No.1
48111 48101-37L22 Leaf, Front Spring, No.1
48111 48101-37L51 Leaf, Front Spring, No.1
48111 48101-37L52 Leaf, Front Spring, No.1
48111 48101-37M91 Leaf, Front Spring, No.1
48111 48101-37M92 Leaf, Front Spring, No.1
48111 48101-37N01 Leaf, Front Spring, No.1
48111 48101-37N02 Leaf, Front Spring, No.1
48111 48101-37X20 Leaf, Front Spring, No.1
48111 48101-37X61 Leaf, Front Spring, No.1
48111 48101-37X21 Leaf, Front Spring, No.1
48111 48101-37X60 Leaf, Front Spring, No.1
48112 48102-37J41 Leaf, Front Spring, No.2
48112 48102-37J42 New Genuine Part
48112 48252-37521 Silencer, Front Spring, No.1
48112 48102-37J51 Leaf, Front Spring, No.2
48112 48102-37J52 Leaf, Front Spring, No.2
48112 48102-37K01 Leaf, Front Spring, No.2
48112 48102-37K02 Leaf, Front Spring, No.2
48112 48102-37K91 Leaf, Front Spring, No.2
48112 48102-37K92 Leaf, Front Spring, No.2
48112 48102-37M91 Leaf, Front Spring, No.2
48112 48102-37M92 New Genuine Part
48112 48102-37N01 Leaf, Front Spring, No.2
48112 48102-37N02 Leaf, Front Spring, No.2
48112 48102-37X20 Leaf, Front Spring, No.2
48112 48102-37X61 Leaf, Front Spring, No.2
48112 48102-37X21 Leaf, Front Spring, No.2
48112 48102-37X60 Leaf, Front Spring, No.2
48112 48112-37K31 Leaf, Front Spring, No.2
48112 48112-37K32 Leaf, Front Spring, No.2
48112 48112-37K41 Leaf, Front Spring, No.2
48112 48112-37K42 Leaf, Front Spring, No.2
48112 48112-37K71 Leaf, Front Spring, No.2
48112 48112-37K72 Leaf, Front Spring, No.2
48112 48112-37L11 Leaf, Front Spring, No.2
48112 48112-37L12 Leaf, Front Spring, No.2
48112 48112-37L21 Leaf, Front Spring, No.2
48112 48112-37L22 Leaf, Front Spring, No.2
48112 48112-37L51 Leaf, Front Spring, No.2
48112 48112-37L52 Leaf, Front Spring, No.2
48113 48102-37K31 Leaf, Front Spring, No.3
48113 48102-37K32 Leaf, Front Spring, No.3
48113 48102-37K41 Leaf, Front Spring, No.3
48113 48102-37K42 Leaf, Front Spring, No.3
48113 48102-37K71 Leaf, Front Spring, No.3
48113 48102-37K72 Leaf, Front Spring, No.3
48113 48102-37L11 Leaf, Front Spring, No.3
48113 48102-37L12 Leaf, Front Spring, No.3
48113 48102-37L21 Leaf, Front Spring, No.3
48113 48102-37L22 Leaf, Front Spring, No.3
48113 48102-37L51 Leaf, Front Spring, No.3
48113 48102-37L52 Leaf, Front Spring, No.3
48120 48110-37J51 Spring Assy, Front, Lh
48120 48110-37J52 Spring Assy, Front, Lh
48120 48110-37K01 Spring Assy, Front, Lh
48120 48110-37K02 Spring Assy, Front, Lh
48120 48110-37K41 Spring Assy, Front, Lh
48120 48110-37K42 Spring Assy, Front, Lh
48120 48110-37K71 Spring Assy, Front, Lh
48120 48110-37K72 Spring Assy, Front, Lh
48120 48110-37K91 Spring Assy, Front, Lh
48120 48110-37K92 Spring Assy, Front, Lh
48120 48110-37L21 Spring Assy, Front, Lh
48120 48110-37L22 Spring Assy, Front, Lh
48120 48110-37L51 Spring Assy, Front, Lh
48120 48110-37L52 Spring Assy, Front, Lh
48120 48110-37N01 Spring Assy, Front, Lh
48120 48110-37N02 Spring Assy, Front, Lh
48147 48147-37870 Bolt, Front Spring, Center
48147 48147-37J41 Bolt, Front Spring, Center
48147 48147-37K31 Bolt, Front Spring, Center
48147 48147-37P20 Bolt, Front Spring, Center
48147 48147-37K71 Bolt, Front Spring, Center
48147 48147-37P40 Bolt, Front Spring, Center
48147 48147-3B550 Bolt, Front Spring, Center
48147 48284-0W060 Nut, Front Spring Center Bolt
48147 48284-37130 Nut, Front Spring Center Bolt
48153 48152-37J42 Spacer, Front Leaf Spring, No.1
48153 48253-3B440 Spacer, Front Leaf Spring, No.1
48153 48252-37670 Silencer, Front Spring, No.1
48251 48113-37J42 Spacer(For Front Spring)
48251 48114-37J42 Spacer(For Front Spring)
48251 48114-37L52 Spacer(For Front Spring)
48251 48114-3B060 Leaf, Front Spring, No.4
48251 48116-37V40 Spacer(For Front Spring)
48251 48235-3B630 Leaf, Front Spring, No.6
48251 48253-37360 Spacer(For Front Spring)
48251 48253-3B122 Leaf, Front Spring, No.4
48252 48252-37380 Silencer, Rear Spring
48253 48253-3B770 Leaf, Front Spring, No.6
48825 48825-37020 Bracket, Stabilizer, No.2
