XZC710

Toyota DYNA-TOYOACE · 2011 · 3,591 parts · 239 categories
XZC710 ×

← Back to categories

3,591 items

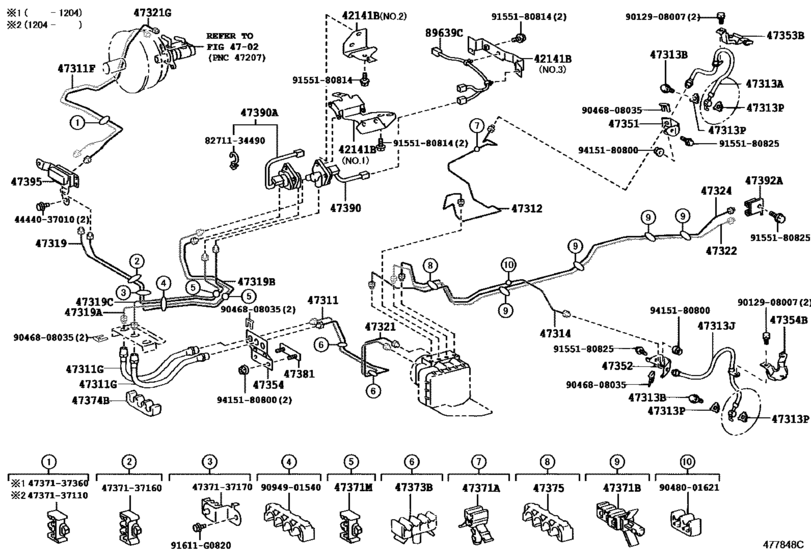

Brake Tube & Clamp ([07.2011 - ] (1107- )6FC..20T) 59
#OEMPart name
42141 42141-37181 Attachment, Skid Control Wire, No.1
42141 42141-37190 Attachment, Skid Control Wire, No.1
42141 42141-37200 Attachment, Skid Control Wire, No.1
47311 47311-37620 Tube, Front Brake, No.1
47311 47311-37630 Tube, Front Brake, Frame No.1
47311 47311-37631 Tube, Front Brake, Frame No.1
47311 47311-37632 Tube, Front Brake, Frame No.1
47311 90947-02G01 Hose, Flexible(For Brake Tube)
47312 47312-37B80 Tube, Front Brake, No.2
47313 90947-02A73 Hose, Flexible, No.1(For Front)
47313 90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313 90947-02A74 Hose, Flexible, No.1(For Front)
47313 47389-30010 Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47314 47314-37820 Tube, Front Brake, No.4
47319 47312-37C30 Tube, Front Brake, No.9
47319 47312-37C31 Tube, Front Brake, No.9
47319 47313-37590 Tube, Front Brake, No.10
47319 47313-37591 Tube, Front Brake, No.10
47319 47322-37B90 Tube, Front Brake, No.11
47319 47322-37B91 Tube, Front Brake, No.11
47319 47323-37740 Tube, Front Brake, No.12
47319 47323-37741 Tube, Front Brake, No.12
47321 47321-37590 Tube, Rear Brake, No.1
47321 47321-37600 Tube, Rear Brake, Frame No.1
47321 47321-37601 Tube, Rear Brake, Frame No.1
47321 47321-37602 Tube, Rear Brake, Frame No.1
47322 47322-37B40 Tube, Rear Brake, No.2
47324 47324-37390 Tube, Rear Brake, No.4
47351 47351-37210 Bracket, Flexible Hose(For Front Rh)
47352 47352-37130 Bracket, Flexible Hose(For Front Lh)
47353 47353-37200 Bracket, Flexible Hose, No.3
47354 47354-37240 Bracket, Front Flexible Hose
47354 47354-37200 Bracket, Flexible Hose, No.4
47371 90959-01595 Clamp, Brake Tube, No.1
47371 90959-01602 Clamp, Brake Tube, No.6
47371 47371-37110 Clamp, Brake Tube, No.1
47371 47371-37140 Clamp, Brake Tube, No.1
47373 47371-37350 Clamp, Brake Tube, No.3
47374 90464-00726 Clamp, Brake Tube, No.4
47375 90949-01540 Clamp, Brake Tube, No.7
47381 47381-37281 Bracket, Brake Tube Clamp No.1
47390 35445-37070 Valve Assy, Hill Holder Brake Lock
47390 35445-37080 Valve Assy, Hill Holder Brake Lock, No.2
47392 47391-37410 Way, Brake Tube
47395 47391-37480 Way, Brake Tube, No.3
89639 89639-37060 Wire, Brake Control
91611 91611-G0820 Bolt
4444037010 44440-37010 Bracket Assy, Pump
4737137160 47371-37160 Clamp, Brake Tube, No.7
4737137170 47371-37170 Clamp, Brake Tube, No.10
4737137360 47371-37360 Clamp, Brake Tube, No.3
8271134490 82711-34490 Wire, Fuse To Fuse(for Combustion Heater)
9012908007 90129-08007 New Genuine Part
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9048001621 90480-01621 Grommet(For Front Brake Tube)
9155180814 91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt)
9155180825 91551-80825 Bolt(For Cylinder Head Set Sub)
9415180800 94151-80800 Nut (For Transmission Control Cable)
