Search › Model › XZC645

XZC645

Toyota DYNA-TOYOACE · 2011 · 3,878 parts · 244 categories

3,878 items

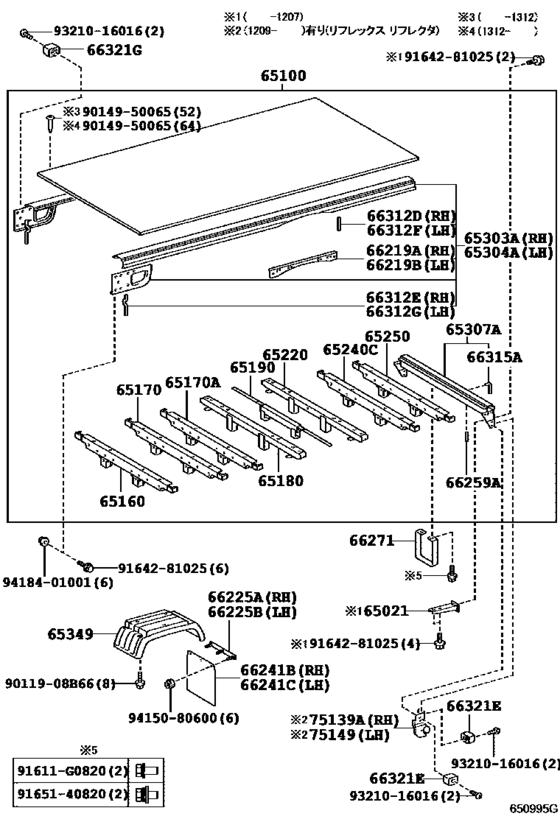

Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU) 50

#	OEM	Part name
65021	65021-37010	Bracket Sub-Assy, Main Sill, Lower
65100	65100-3VC10	Floor Assy, Rear Body
65100	65100-3VC11	Floor Assy, Rear Body
65100	65507-37051	Support Sub-Assy, Corner, Rh
65100	65508-37051	Support Sub-Assy, Corner, Lh
65100	91672-01025	New Genuine Part
65100	65100-3VL60	Floor Assy, Rear Body
65100	65100-3VL62	Floor Assy, Rear Body
65100	65349-37041	Fender, Floor Side
65100	65100-3VL61	Floor Assy, Rear Body
65160	65160-37510	Sill Assy, Cross, No.2
65170	65170-37340	Sill Assy, Cross, No.2
65180	65180-37760	Sill Assy, Cross, No.4
65180	65180-37761	Sill Assy, Cross, No.4
65190	65190-37190	Sill Assy, Cross, No.5
65220	65180-37650	Sill Assy, Cross, No.4
65220	65180-37651	Sill Assy, Cross, No.4
65303	65303-37E90	Frame Sub-Assy, Floor Side, Rh
65303	65303-37E91	Frame Sub-Assy, Floor Side, Rh
65304	65304-37E60	Frame Sub-Assy, Floor Side, Lh
65304	65304-37E61	Frame Sub-Assy, Floor Side, Lh
65307	65307-37870	Frame Sub-Assy, Floor, Rear
65307	65307-37B20	Frame Sub-Assy, Floor, Rear
65307	65307-37B21	Frame Sub-Assy, Floor, Rear
65349	65349-37010	Fender, Floor Side
65349	65349-37040	Fender, Floor Side
66219	66219-37080	Extension, Rear Fender
66225	66242-37270	Support, Baffle Rubber
66225	66242-37271	Support, Baffle Rubber
66241	66241-37B60	Baffle, Rubber
66241	66241-37B62	Baffle, Rubber
66241	66241-37B61	Baffle, Rubber
66259	66259-37010	Cover, Rear Body Floor, Rear
66271	66271-37010	Step, Rear Body
66312	66311-37020	Hook, Rope
66312	66312-37020	Hook, Rope, No.2
66315	66315-37010	Hook, Rope, No.1
66321	66321-37030	Bumper, Gate Rubber
66321	66321-92803	Bumper, Gate Rubber
66321	66321-92805	Bumper, Gate Rubber
75139	75139-37080	Bracket, Reflex Reflector, Rh
75149	75149-37080	Bracket, Reflex Reflector, Lh
91611	91611-G0820	Bolt
9011908	90119-08B66	BOLT WWASHER
9014950065	90149-50065	Screw(For Floor Board)
9164281025	91642-81025	BOLT WWASHER
9165140820	91651-40820	Bolt
9321016016	93210-16016	SCREW
9415080600	94150-80600	NUT FLANGE
9418401001	94184-01001	Nut

OEM	Part name	Category
65021-37010	Bracket Sub-Assy, Main Sill, Lower	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65100-3VC10	Floor Assy, Rear Body	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65100-3VC11	Floor Assy, Rear Body	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65100-3VL60	Floor Assy, Rear Body	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65100-3VL61	Floor Assy, Rear Body	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65100-3VL62	Floor Assy, Rear Body	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65160-37510	Sill Assy, Cross, No.2	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65170-37340	Sill Assy, Cross, No.2	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65180-37650	Sill Assy, Cross, No.4	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65180-37651	Sill Assy, Cross, No.4	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65180-37760	Sill Assy, Cross, No.4	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65180-37761	Sill Assy, Cross, No.4	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65190-37190	Sill Assy, Cross, No.5	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65303-37E90	Frame Sub-Assy, Floor Side, Rh	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65303-37E91	Frame Sub-Assy, Floor Side, Rh	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65304-37E60	Frame Sub-Assy, Floor Side, Lh	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65304-37E61	Frame Sub-Assy, Floor Side, Lh	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65307-37870	Frame Sub-Assy, Floor, Rear	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65307-37B20	Frame Sub-Assy, Floor, Rear	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65307-37B21	Frame Sub-Assy, Floor, Rear	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65349-37010	Fender, Floor Side	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65349-37040	Fender, Floor Side	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65349-37041	Fender, Floor Side	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65507-37051	Support Sub-Assy, Corner, Rh	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
65508-37051	Support Sub-Assy, Corner, Lh	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
66219-37080	Extension, Rear Fender	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
66241-37B60	Baffle, Rubber	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
66241-37B61	Baffle, Rubber	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
66241-37B62	Baffle, Rubber	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
66242-37270	Support, Baffle Rubber	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
66242-37271	Support, Baffle Rubber	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
66259-37010	Cover, Rear Body Floor, Rear	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
66271-37010	Step, Rear Body	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
66311-37020	Hook, Rope	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
66312-37020	Hook, Rope, No.2	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
66315-37010	Hook, Rope, No.1	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
66321-37030	Bumper, Gate Rubber	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
66321-92803	Bumper, Gate Rubber	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
66321-92805	Bumper, Gate Rubber	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
75139-37080	Bracket, Reflex Reflector, Rh	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
75149-37080	Bracket, Reflex Reflector, Lh	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
90119-08B66	BOLT WWASHER	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
90149-50065	Screw(For Floor Board)	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
91611-G0820	Bolt	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
91642-81025	BOLT WWASHER	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
91651-40820	Bolt	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
91672-01025	New Genuine Part	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
93210-16016	SCREW	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
94150-80600	NUT FLANGE	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)
94184-01001	Nut	Rear Body Floor & Fender ([07.2011 - ] (1107- )XZC645..CBU)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 244
Collected: 2026-08-03
