XZC605

Toyota DYNA-TOYOACE · 2011 · 3,827 parts · 238 categories

← Back to categories

3,827 items

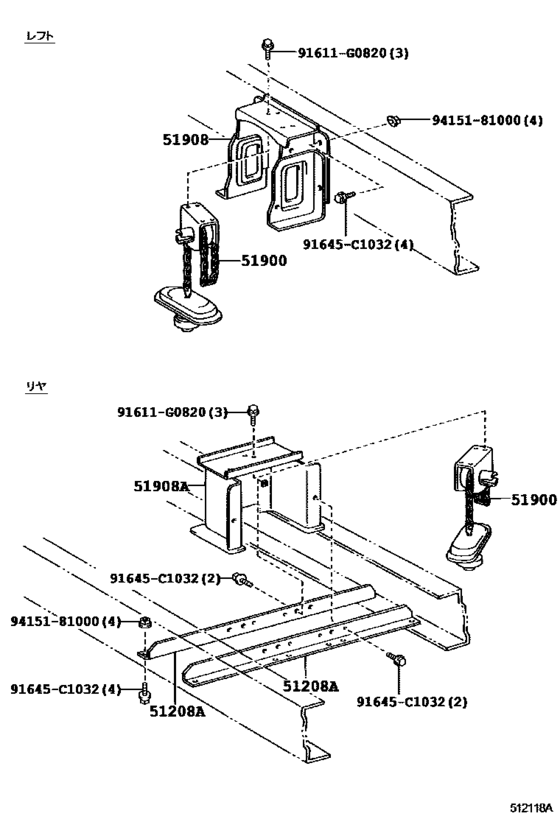

Spare Wheel Carrier ([07.2011 - ] (1107- )VAN) 8

#	OEM	Part name
51208	51261-37020	Member Sub-Assy, Spare Wheel Set
51900	51900-37100	Carrier Assy, Spare Wheel
51900	51900-37150	Carrier Assy, Spare Wheel
51908	51908-37330	Bracket Sub-Assy, Spare Wheel Carrier
51908	51908-37450	Bracket Sub-Assy, Spare Wheel Mounting
91611	91611-G0820	Bolt
91645	91645-C1032	Bolt, Fuel Tank
9415181000	94151-81000	NUT FLANGE

OEM	Part name	Category
51261-37020	Member Sub-Assy, Spare Wheel Set	Spare Wheel Carrier ([07.2011 - ] (1107- )VAN)
51900-37100	Carrier Assy, Spare Wheel	Spare Wheel Carrier ([07.2011 - ] (1107- )VAN)
51900-37150	Carrier Assy, Spare Wheel	Spare Wheel Carrier ([07.2011 - ] (1107- )VAN)
51908-37330	Bracket Sub-Assy, Spare Wheel Carrier	Spare Wheel Carrier ([07.2011 - ] (1107- )VAN)
51908-37450	Bracket Sub-Assy, Spare Wheel Mounting	Spare Wheel Carrier ([07.2011 - ] (1107- )VAN)
91611-G0820	Bolt	Spare Wheel Carrier ([07.2011 - ] (1107- )VAN)
91645-C1032	Bolt, Fuel Tank	Spare Wheel Carrier ([07.2011 - ] (1107- )VAN)
94151-81000	NUT FLANGE	Spare Wheel Carrier ([07.2011 - ] (1107- )VAN)

Source: Public OEM parts-catalog data
Variants: 1 / 26
Category: 238
Collected: 2026-08-03
