XZC605

Toyota DYNA-TOYOACE · 2011 · 3,827 parts · 238 categories

3,827 items

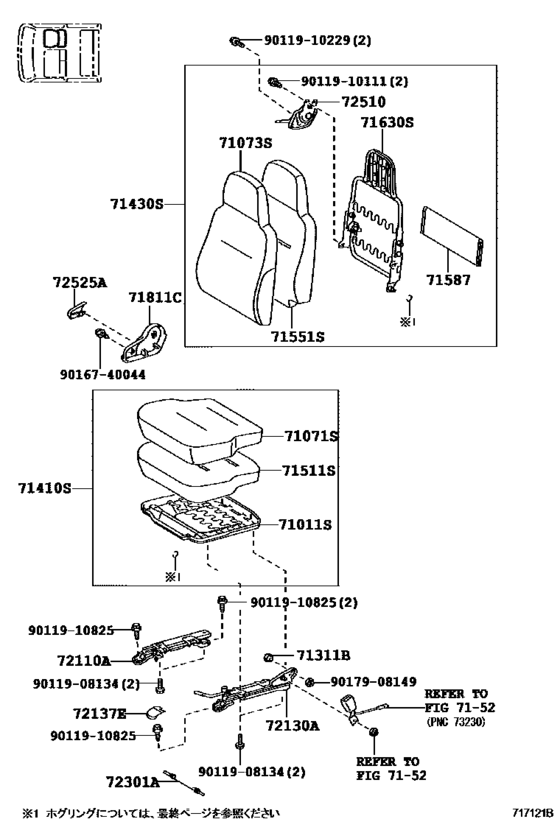

Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN) 34

#	OEM	Part name
71011	71610-37010	Frame Sub-Assy, Front Seat Cushion, Rh
71071	71071-37880-B1	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-37890-B1	Cover, Front Seat Cushion, Rh(For Separate Type)
71073	71073-37A70-B0	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-37A80-B0	Cover, Front Seat Back, Rh(For Separate Type)
71311	90386-12053	Bush (For Front Seat Hinge Pin)
71410	71410-37B10-B1	Cushion Assy, Front Seat, Rh(For Separate Type)
71410	71410-37B20-B1	Cushion Assy, Front Seat, Rh(For Separate Type)
71410	71410-37B30-B1	Cushion Assy, Front Seat, Rh(For Separate Type)
71410	71410-37B40-B1	Cushion Assy, Front Seat, Rh(For Separate Type)
71430	71430-37A70-B0	Back Assy, Front Seat, Rh(For Separate Type)
71430	71430-37A80-B0	Back Assy, Front Seat, Rh(For Separate Type)
71511	71511-37080	Pad, Front Seat Cushion, Rh(For Separate Type)
71511	71511-37140	Pad, Front Seat Cushion, Rh(For Separate Type)
71551	71551-25060	Pad, Front Seat Back, Rh(For Separate Type)
71551	71551-37140	Pad, Front Seat Back, Rh(For Separate Type)
71587	71587-37020	Protector, Front Seat Back Edge
71587	71587-37021	Protector, Front Seat Back Edge
71630	71630-25070	Spring Assy, Front Seat Back, Rh(For Separate Type)
71630	71630-37130	Spring Assy, Front Seat Back, Rh(For Separate Type)
71811	71811-37011-B1	Cover, Reclining Adjuster, Rh
72110	72110-37020	Track Assy, Front Seat, Outer Rh
72130	72130-37020	Track Assy, Front Seat, Inner Rh
72137	72137-37010-B1	Cover, Seat Track, No.1
72137	72137-37050-B0	Cover, Seat Track, No.1
72301	72301-37030	Wire Sub-Assy, Seat Track Equalizing, Rh
72510	72510-37040	Adjuster Assy, Reclining Seat Back, Rh
72525	72525-37010-B1	Handle, Reclining Adjuster Release, Rh
9011908134	90119-08134	BOLT
9011910111	90119-10111	New Genuine Part
9011910229	90119-10229	BOLT
9011910825	90119-10825	Bolt
9016740044	90167-40044	BOLT
9017908149	90179-08149	New Genuine Part

OEM	Part name	Category
71071-37880-B1	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71071-37890-B1	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71073-37A70-B0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71073-37A80-B0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71410-37B10-B1	Cushion Assy, Front Seat, Rh(For Separate Type)	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71410-37B20-B1	Cushion Assy, Front Seat, Rh(For Separate Type)	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71410-37B30-B1	Cushion Assy, Front Seat, Rh(For Separate Type)	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71410-37B40-B1	Cushion Assy, Front Seat, Rh(For Separate Type)	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71430-37A70-B0	Back Assy, Front Seat, Rh(For Separate Type)	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71430-37A80-B0	Back Assy, Front Seat, Rh(For Separate Type)	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71511-37080	Pad, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71511-37140	Pad, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71551-25060	Pad, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71551-37140	Pad, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71587-37020	Protector, Front Seat Back Edge	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71587-37021	Protector, Front Seat Back Edge	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71610-37010	Frame Sub-Assy, Front Seat Cushion, Rh	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71630-25070	Spring Assy, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71630-37130	Spring Assy, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
71811-37011-B1	Cover, Reclining Adjuster, Rh	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
72110-37020	Track Assy, Front Seat, Outer Rh	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
72130-37020	Track Assy, Front Seat, Inner Rh	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
72137-37010-B1	Cover, Seat Track, No.1	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
72137-37050-B0	Cover, Seat Track, No.1	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
72301-37030	Wire Sub-Assy, Seat Track Equalizing, Rh	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
72510-37040	Adjuster Assy, Reclining Seat Back, Rh	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
72525-37010-B1	Handle, Reclining Adjuster Release, Rh	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
90119-08134	BOLT	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
90119-10111	New Genuine Part	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
90119-10229	BOLT	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
90119-10825	Bolt	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
90167-40044	BOLT	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
90179-08149	New Genuine Part	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
90386-12053	Bush (For Front Seat Hinge Pin)	Seat & Seat Track ([07.2011 - ] ｳﾝﾃﾝｾｷ (1107- )VAN)
