Search › Model › XZC605
XZC605

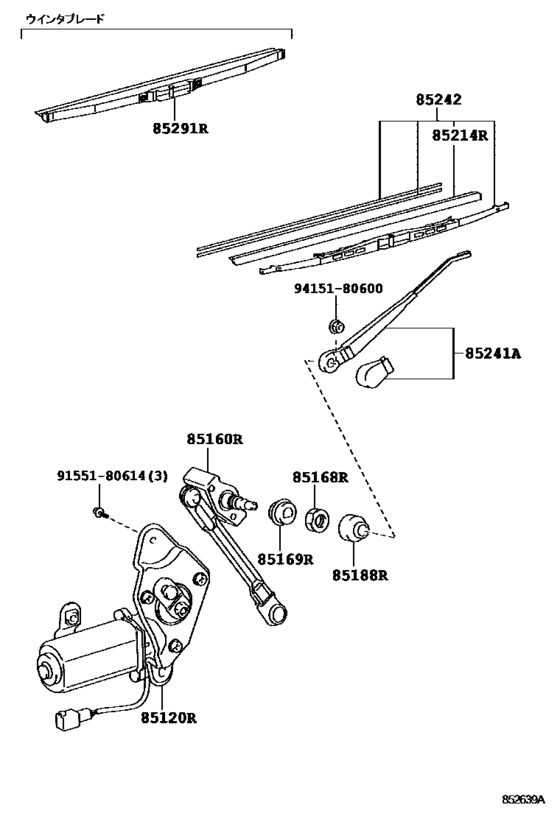

Rear Wiper ([07.2011 - ] (1107- )VAN) 12
| # | OEM | Part name |
|---|---|---|
| 85120 | 85130-37010 | Motor And Bracket Assy, Rear Wiper |
| 85120 | 85130-37011 | Motor And Bracket Assy, Rear Wiper |
| 85160 | 85160-95J04 | Link Assy, Rear Wiper |
| 85168 | 85168-95700 | Nut, Windshield Wiper Link Pivot |
| 85169 | 85179-95J01 | Washer, Rear Wiper Link Pivot, No.1 |
| 85188 | 85178-95J00 | Cap, Rear Wiper Pivot, No.1 |
| 85214 | 85214-26010 | Rubber, Rear Wiper |
| 85241 | 85241-26020 | Arm Assy, Rear Wiper |
| 85242 | 85242-26020 | Blade Assy, Rear Wiper |
| 85291 | 85291-44080 | Blade Assy, Windshield Wiper |
| 9155180614 | 91551-80614 | Bolt(For Vacuum Transmitting Pipe) |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) |
| OEM | Part name | Category |
|---|---|---|
| 85130-37010 | Motor And Bracket Assy, Rear Wiper | Rear Wiper ([07.2011 - ] (1107- )VAN) |
| 85130-37011 | Motor And Bracket Assy, Rear Wiper | Rear Wiper ([07.2011 - ] (1107- )VAN) |
| 85160-95J04 | Link Assy, Rear Wiper | Rear Wiper ([07.2011 - ] (1107- )VAN) |
| 85168-95700 | Nut, Windshield Wiper Link Pivot | Rear Wiper ([07.2011 - ] (1107- )VAN) |
| 85178-95J00 | Cap, Rear Wiper Pivot, No.1 | Rear Wiper ([07.2011 - ] (1107- )VAN) |
| 85179-95J01 | Washer, Rear Wiper Link Pivot, No.1 | Rear Wiper ([07.2011 - ] (1107- )VAN) |
| 85214-26010 | Rubber, Rear Wiper | Rear Wiper ([07.2011 - ] (1107- )VAN) |
| 85241-26020 | Arm Assy, Rear Wiper | Rear Wiper ([07.2011 - ] (1107- )VAN) |
| 85242-26020 | Blade Assy, Rear Wiper | Rear Wiper ([07.2011 - ] (1107- )VAN) |
| 85291-44080 | Blade Assy, Windshield Wiper | Rear Wiper ([07.2011 - ] (1107- )VAN) |
| 91551-80614 | Bolt(For Vacuum Transmitting Pipe) | Rear Wiper ([07.2011 - ] (1107- )VAN) |
| 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Rear Wiper ([07.2011 - ] (1107- )VAN) |
