Search › Model › XZC605

XZC605

Toyota DYNA-TOYOACE · 2011 · 3,827 parts · 238 categories
XZC605 ×

← Back to categories

3,827 items

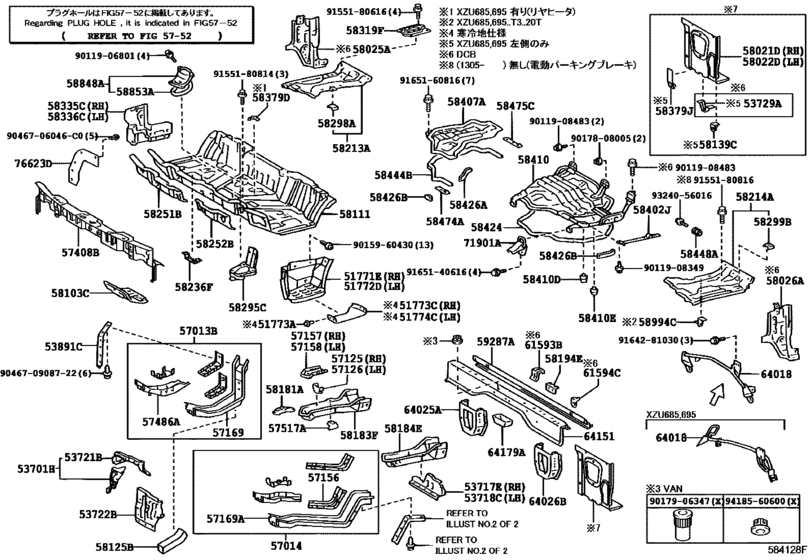

Front Floor Panel & Front Floor Member ([07.2011 - ] ﾌﾛｱﾊﾟﾝ & ﾊﾞｯｸﾌﾚｰﾑ (1107- )DCB,VAN..20T) 87
#OEMPart name
51771 51771-37181 Plate, Step, Rh
51772 51772-37131 Plate, Step, Lh
51773 90467-06133-C0 Clip, Step Plate Cover
51773 51773-37020 Cover, Step Plate, Rh
51774 51774-37010 Cover, Step Plate, Lh
53701 53701-37022 Apron Sub-Assy, Front Fender, Rh
53717 53717-37150 Apron, Front Fender, No.2 Rh
53718 53718-37120 Apron, Front Fender, No.2 Lh
53721 53721-37052 Apron Sub-Assy, Fender Side, Rh
53722 53722-37032 Apron Sub-Assy, Fender Side, Lh
53891 53891-37031 Seal, Front Fender Splash Sheild, Front
57013 57013-37240 Member Sub-Assy, Floor, Front Rh
57014 57014-37070 Member Sub-Assy, Floor, Front Lh
57125 57125-37010 Bracket, Front Side Member, Rh
57126 57126-37020 Bracket, Front Side Member, Lh
57156 57156-37021 Reinforcement, Front Side Member, No.3, Lh
57157 57157-37030 Reinforcement, Front Side Member, No.8 Rh
57158 57158-37030 Reinforcement, Front Side Member, No.8 Lh
57169 57169-37081 Member, Front Floor, Front Rh
57169 57179-37070 Member, Front Floor, Front Lh
57408 57408-37352 Member Sub-Assy, Front Floor Cross
57408 57408-37560 Member Sub-Assy, Front Floor Cross
57486 57486-37050 Reinforcement, Floor Side Member, No.1 Rh
57517 57517-37011 Retainer, Front Floor Reinforcement, Rear
58103 58103-37031 Reinforcement Sub-Assy, Front Floor, Front
58111 58111-25322 Pan, Front Floor
58111 58111-37622 Pan, Front Floor
58111 58111-37623 Pan, Front Floor
58125 58125-37020 Seal, Front Floor To Frame
58181 58181-37030 Retainer, Seat Rail, Front
58183 58183-37072 Reinforcement, Rear Mounting, Rh
58184 58184-37093 Reinforcement, Rear Mounting, Lh
58194 58194-37010 Retainer, Engine Cover Hinge
58213 58201-37120 Panel, Seat Floor, Rh
58214 58202-37100 Panel, Seat Floor, Lh
58236 58236-95J01 Bracket, Clutch Tube
58251 58251-37032 Brace, Floor Panel, Front
58252 58252-37031 Brace, Floor Panel, Front Lh
58295 58295-37060 Bracket, Floor Shift Lever, No.1
58298 58298-37020 Reinforcement, Seat Belt Anchor Floor, Rh
58319 58319-37120 Bracket, Rear Floor Side Panel
58335 58335-37041 Plate, Floor Side, Front Rh
58336 58336-37031 Plate, Floor Side, Front Lh
58402 58402-25030 Band Sub-Assy, Engine Service Cover Support
58402 58402-37020 Band Sub-Assy, Engine Service Cover Support
58407 58407-37151 Cover Sub-Assy, Engine Service Hole Sub
58407 58407-37152 Cover Sub-Assy, Engine Service Hole Sub
58410 59208-37230 Cover, Engine Service Hole
58410 90541-09028 Cushion, No.1
58410 90541-09046 Cushion, No.3
58424 58424-37030 Packing, Engine Service Hole Cover, No.1
58426 58426-37011 Protector, Engine Service Hole
58426 58426-95405 Protector, Engine Service Hole
58444 58444-37030 Packing, Engine Sub Cover
58448 58448-26010-C0 Hook, Engine Service Hole Cover, No.2 Lh
58474 58474-37010 Packing, Engine Sub Cover, No.2
58475 58475-37030 Packing, Engin Sub Cover, No.3
58848 58840-37010 Cover, Shift Lever Hole
58853 58853-37020 Packing, Shift Lever Hole
59287 59287-37030 Base, Transmission Cover, Center
64018 64018-37090 Bar Sub-Assy, Body
64025 64025-37100 Bracket Sub-Assy, Rear Mounting, Rh
64026 64026-37130 Bracket Sub-Assy, Rear Mounting, Lh
64151 64151-37243 Frame, Back
64151 64151-37333 Frame, Back
64179 64179-37030 Patch, Rear Mounting Bracket
71901 71902-37010 Catch Sub-Assy, Center Seat Cushion, Front
76623 76623-37031 Mudguard, Front Fender, Front Rh
9011906801 90119-06801 New Genuine Part
9011908349 90119-08349 New Genuine Part
9011908483 90119-08483 New Genuine Part
9015960430 90159-60430 New Genuine Part
9017808005 90178-08005 NUT, FLANGE
9017906347 90179-06347 New Genuine Part
9046706046 90467-06046-C0 Clip(For Front Fender Mudguard)
9155180616 91551-80616 BOLT FLANGE
9155180814 91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt)
9155180816 91551-80816 Bolt(For Manual Transmission Oil Separator)
9164281030 91642-81030 Bolt
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9324056016 93240-56016 SCREW
9418560600 94185-60600 Nut, Wire Adjusting, No.1
904670908722 90467-09087-22 Clip
Source
Public OEM parts-catalog data
Variants
1 / 26
Category
238
Collected
2026-08-03
