Search › Model › XZC605
XZC605

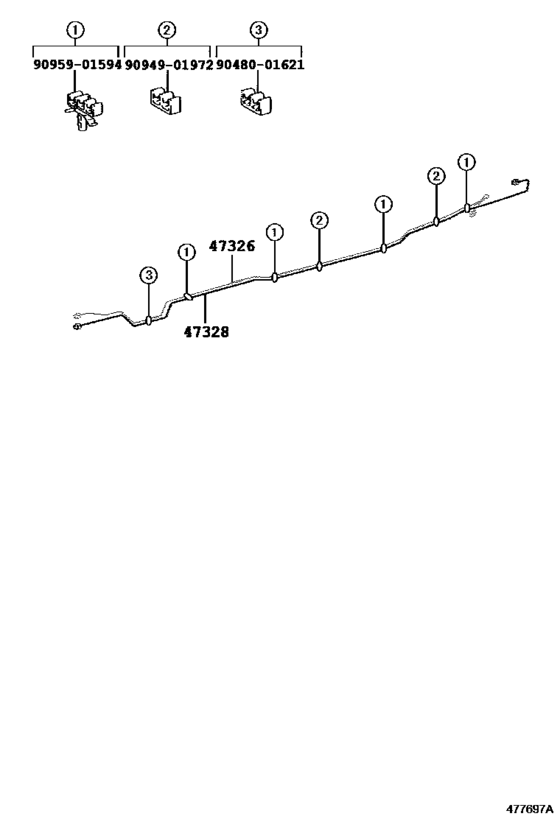

Brake Tube & Clamp ([07.2011 - ] (1107- )VAN) 5
| # | OEM | Part name |
|---|---|---|
| 47326 | 47326-37621 | Tube, Rear Brake, No.6 |
| 47328 | 47328-37480 | Tube, Rear Brake, No.8 |
| 9048001621 | 90480-01621 | Grommet(For Front Brake Tube) |
| 9094901972 | 90949-01972 | Grommet, No.1(For Front Brake Tube) |
| 9095901594 | 90959-01594 | Clamp, Brake Tube, No.9 |
| OEM | Part name | Category |
|---|---|---|
| 47326-37621 | Tube, Rear Brake, No.6 | Brake Tube & Clamp ([07.2011 - ] (1107- )VAN) |
| 47328-37480 | Tube, Rear Brake, No.8 | Brake Tube & Clamp ([07.2011 - ] (1107- )VAN) |
| 90480-01621 | Grommet(For Front Brake Tube) | Brake Tube & Clamp ([07.2011 - ] (1107- )VAN) |
| 90949-01972 | Grommet, No.1(For Front Brake Tube) | Brake Tube & Clamp ([07.2011 - ] (1107- )VAN) |
| 90959-01594 | Clamp, Brake Tube, No.9 | Brake Tube & Clamp ([07.2011 - ] (1107- )VAN) |
