| 82711-60410 |
Wire, Fuse To Fuse(for Combustion Heater) |

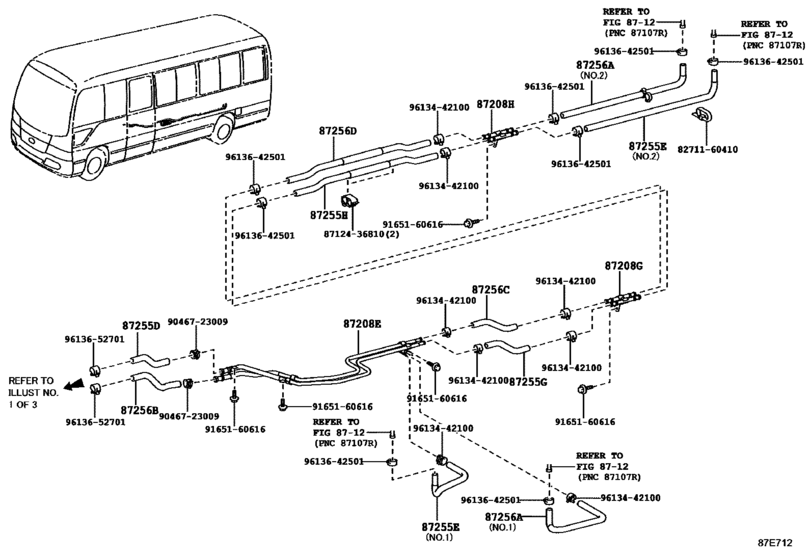

Heating & Air Conditioning - Water Piping ([01.2015 - ] REAR (1501- )BB42,TRB40,XZB40..LHD) |
| 87124-36810 |
Clamp, Heater |
Heating & Air Conditioning - Water Piping ([01.2015 - ] REAR (1501- )BB42,TRB40,XZB40..LHD) |
| 87208-36670 |
Pipe Sub-Assy, Heater Water, C |
Heating & Air Conditioning - Water Piping ([01.2015 - ] REAR (1501- )BB42,TRB40,XZB40..LHD) |
| 87208-36E40 |
Pipe Sub-Assy, Heater Water, E |
Heating & Air Conditioning - Water Piping ([01.2015 - ] REAR (1501- )BB42,TRB40,XZB40..LHD) |
| 87245-36D70 |
Hose, Rear Heater Water Inlet, D |
Heating & Air Conditioning - Water Piping ([01.2015 - ] REAR (1501- )BB42,TRB40,XZB40..LHD) |
| 87245-36D80 |
Hose, Rear Heater Water Outlet, B |
Heating & Air Conditioning - Water Piping ([01.2015 - ] REAR (1501- )BB42,TRB40,XZB40..LHD) |
| 87245-36J40 |
Hose, Rear Heater Water Outlet, A (From Heater Unit) |
Heating & Air Conditioning - Water Piping ([01.2015 - ] REAR (1501- )BB42,TRB40,XZB40..LHD) |
| 87245-36J50 |
Hose, Rear Heater Water Inlet, E(To Heater Unit) |
Heating & Air Conditioning - Water Piping ([01.2015 - ] REAR (1501- )BB42,TRB40,XZB40..LHD) |
| 87245-36J70 |
Hose, Rear Heater Water Outlet, C |
Heating & Air Conditioning - Water Piping ([01.2015 - ] REAR (1501- )BB42,TRB40,XZB40..LHD) |
| 87245-36J80 |
Hose, Rear Heater Water Inlet, G |
Heating & Air Conditioning - Water Piping ([01.2015 - ] REAR (1501- )BB42,TRB40,XZB40..LHD) |
| 87245-36K20 |
Hose, Rear Heater Water Inlet, D |
Heating & Air Conditioning - Water Piping ([01.2015 - ] REAR (1501- )BB42,TRB40,XZB40..LHD) |
| 87245-3C611 |
Hose, Rear Heater Water Outlet, A (From Heater Unit) |
Heating & Air Conditioning - Water Piping ([01.2015 - ] REAR (1501- )BB42,TRB40,XZB40..LHD) |
| 87245-3C621 |
Hose, Rear Heater Water Inlet, E(To Heater Unit) |
Heating & Air Conditioning - Water Piping ([01.2015 - ] REAR (1501- )BB42,TRB40,XZB40..LHD) |
| 90467-23009 |
Clip Or Clamp(For Ventilation Hose) |
Heating & Air Conditioning - Water Piping ([01.2015 - ] REAR (1501- )BB42,TRB40,XZB40..LHD) |
| 91651-60616 |
BOLT |
Heating & Air Conditioning - Water Piping ([01.2015 - ] REAR (1501- )BB42,TRB40,XZB40..LHD) |
| 96134-42100 |
Clip(For Water By-Pass Hose Assy) |
Heating & Air Conditioning - Water Piping ([01.2015 - ] REAR (1501- )BB42,TRB40,XZB40..LHD) |
| 96136-42501 |
Clip(For Ventilation Hose) |
Heating & Air Conditioning - Water Piping ([01.2015 - ] REAR (1501- )BB42,TRB40,XZB40..LHD) |
| 96136-52701 |
Clamp Or Clip(For Water By-Pass Hose No.3) |
Heating & Air Conditioning - Water Piping ([01.2015 - ] REAR (1501- )BB42,TRB40,XZB40..LHD) |
