Search › Model › XZB40

XZB40

Toyota COASTER · 2004 · 3,564 parts · 236 categories

3,564 items

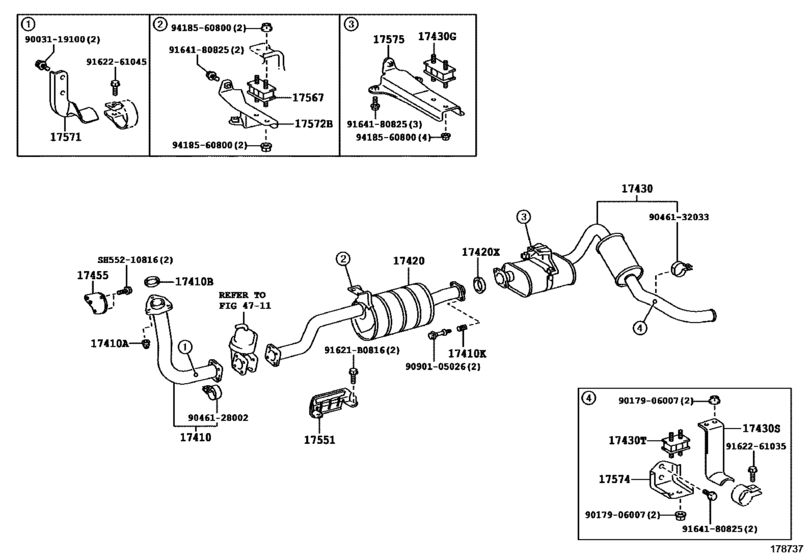

Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S) 27

#	OEM	Part name
17410	17410-78010	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06067	Gasket, Exhaust Pipe
17410	90501-35028	Spring, Exhaust Pipe
17420	17420-78B70	Pipe Assy, Exhaust, Center
17420	17451-74040	Gasket, Exhaust Pipe
17430	17430-75840	Pipe Assy, Exhaust, Tail
17430	17567-58010	Cushion, Exhaust Pipe Front (For Rear)
17430	17561-17010	Bracket, Exhaust Tail Pipe (For Rear)
17430	17567-17020	Cushion, Exhaust Pipe Center, Rear
17551	17551-78050	Insulator, Exhaust Pipe Heat, No.1
17567	17567-75050	Cushion, Exhaust Pipe Support
17571	17571-78110	Bracket, Exhaust Pipe Support, No.1
17572	17572-75220	Bracket, Exhaust Pipe Support, No.2
17574	17574-58170	Bracket, Exhaust Pipe Support, No.4
17575	17574-78120	Bracket, Exhaust Tail Pipe(For Center)
91621	91621-B0816	BOLT WWASHER
9003119100	90031-19100	New Genuine Part
9017906007	90179-06007	Nut
9046128002	90461-28002	CLAMP
9046132033	90461-32033	Clamp, Exhaust Pipe
9090105026	90901-05026	Bolt, Exhaust Pipe Support
9162261035	91622-61035	BOLT WWASHER
9162261045	91622-61045	New Genuine Part
9164180825	91641-80825	BOLT WWASHER
9418560800	94185-60800	NUT

OEM	Part name	Category
17410-78010	Pipe Assy, Exhaust, Front	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
17420-78B70	Pipe Assy, Exhaust, Center	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
17430-75840	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
17451-74040	Gasket, Exhaust Pipe	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
17551-78050	Insulator, Exhaust Pipe Heat, No.1	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
17561-17010	Bracket, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
17567-17020	Cushion, Exhaust Pipe Center, Rear	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
17567-58010	Cushion, Exhaust Pipe Front (For Rear)	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
17567-75050	Cushion, Exhaust Pipe Support	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
17571-78110	Bracket, Exhaust Pipe Support, No.1	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
17572-75220	Bracket, Exhaust Pipe Support, No.2	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
17574-58170	Bracket, Exhaust Pipe Support, No.4	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
17574-78120	Bracket, Exhaust Tail Pipe(For Center)	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
90031-19100	New Genuine Part	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
90179-06007	Nut	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
90461-28002	CLAMP	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
90461-32033	Clamp, Exhaust Pipe	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
90501-35028	Spring, Exhaust Pipe	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
90901-05026	Bolt, Exhaust Pipe Support	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
90917-06067	Gasket, Exhaust Pipe	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
91621-B0816	BOLT WWASHER	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
91622-61035	BOLT WWASHER	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
91622-61045	New Genuine Part	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
91641-80825	BOLT WWASHER	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
94185-60800	NUT	Exhaust Pipe ([01.2015 - ] (1501- )N04C..XZB40..26S)
