XT130

Toyota CORONA · 1979 · 2,407 parts · 140 categories
XT130 ×

← Back to categories

2,407 items

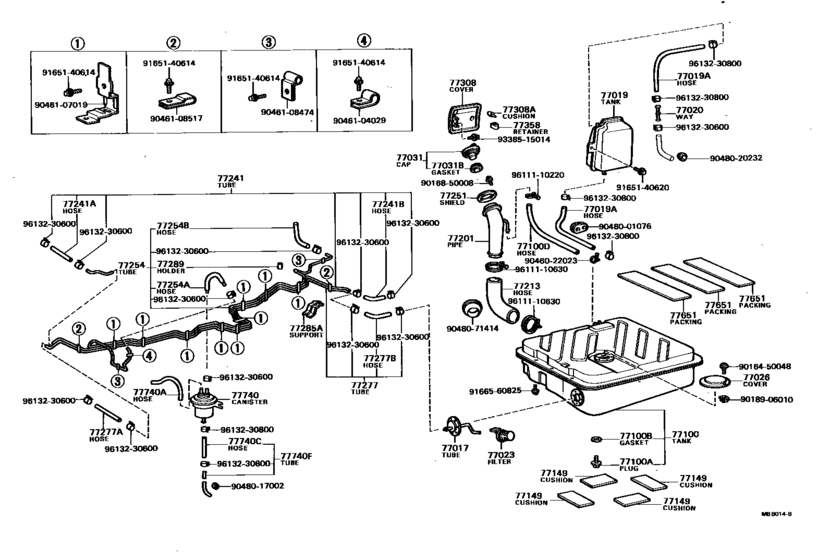

Fuel Tank & Tube ([08.1979 - ] (7908- )XT130..LEF) 62
#OEMPart name
77019 77191-21010 Tank Sub-Assy, Fuel Expansion
77019 95332-08060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77019 95333-08060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77020 90412-08001 Way, 2(For Fuel Expansion Tank)
77023 77023-12050 Filter Sub-Assy, Fuel Suction Tube
77026 77029-91600 Cover, Rear Floor Service Hole
77031 77310-12100 Cap Assy, Fuel Tank
77031 77316-12050 Gasket (For Fuel Tank Cap)
77100 77001-91266 Tank Assy, Fuel
77100 77001-91282 Tank Assy, Fuel
77100 90105-12018 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77100 90445-22012 Hose, Fuel, No.1(For Fuel Tank)
77100 90445-22018 Hose, Fuel, No.1(For Fuel Tank)
77149 77652-91602 Packing, Fuel Tank, Lower
77201 77201-91258 Pipe Sub-Assy, Fuel Tank Inlet
77213 77213-91257 Hose, Fuel Tank Sub Inlet
77241 77251-91261 Tube, Fuel Main, No.1
77241 95332-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77241 95337-06020 Hose, Differential Pressure Control
77241 95332-06030 Hose(For Carburetor)
77241 95333-06030 Hose, Fuel
77251 77291-12010 Shield, Fuel Tank, Inlet, No.1
77254 77261-91255 Tube, Fuel Emission, No.1
77254 77409-20010 Hose, Fuel, No.1 (For Emission Tube, No.1)
77277 77255-91256 Tube, Fuel Return, No.1
77285 77285-91255 Support, Fuel Return And Main Tube
77289 77273-20010 Holder, Fuel Tank Pipe Setting
77308 77350-91255 Cover Sub-Assy, Fuel Inlet Box
77308 90541-08003 Cushion(For Inspection Opening)
77358 77358-20010 Stopper, Fuel Inlet Box
77651 77653-91602 Cushion, Fuel Tank, No.1
77740 77740-20200 Canister Assy, Charcoal
77740 95411-10195 Hose (For Idle Up Device) - VACUUM SWITCHING VALVE
77740 90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)
77740 95332-08010 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77740 95333-08010 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77740 77264-20010 Tube, Fuel, No.1(For Charcoal Canister)
9016450048 90164-50048 SCREW
9016850008 90168-50008 New Genuine Part
9018906010 90189-06010 Clip(For Front Door Inside Handle)
9046022023 90460-22023 New Genuine Part
9046104029 90461-04029 New Genuine Part
9046107019 90461-07019 New Genuine Part
9046108474 90461-08474 New Genuine Part
9046108517 90461-08517 New Genuine Part
9048001076 90480-01076 New Genuine Part
9048017002 90480-17002 New Genuine Part
9048020232 90480-20232 New Genuine Part
9048071414 90480-71414 New Genuine Part
9165140614 91651-40614 Bolt
9165140620 91651-40620 BOLT
9166560825 91665-60825 New Genuine Part
9166560825 91661-60825 New Genuine Part
9338515014 93385-15014 Screw(For Steering Tilt Lever)
9611110220 96111-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)
9611110220 96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)
9611110630 96111-10630 Clamp, Hose
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
9613230800 96132-51300 Clip(For Ventilation Hose No.2)
