XKU720

Toyota DYNA-TOYOACE · 2011 · 3,770 parts · 228 categories

3,770 items

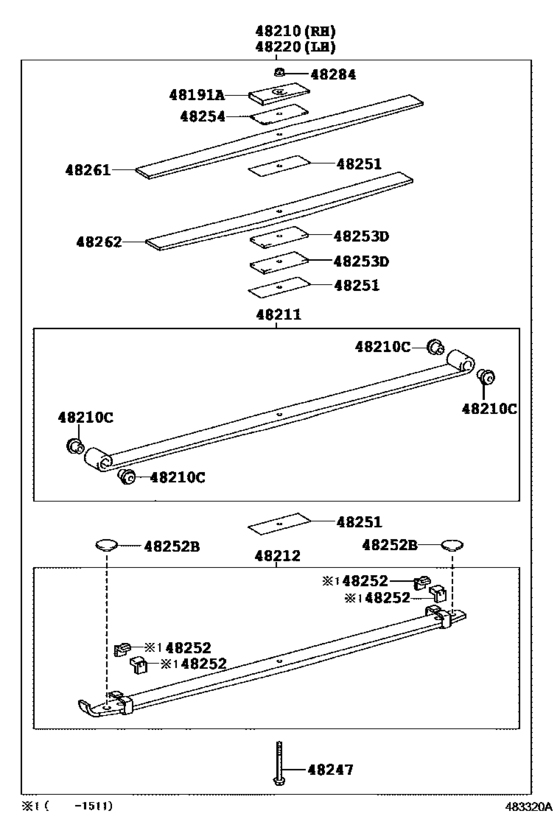

Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3) 49

#	OEM	Part name
48191	48192-37100	Wedge, Caster(For Rear Leaf Spring)
48210	48210-37J50	Spring Assy, Rear Rh
48210	48210-37J51	Spring Assy, Rear Rh
48210	48210-37J90	Spring Assy, Rear Rh
48210	48210-37J91	Spring Assy, Rear Rh
48210	48210-37K20	Spring Assy, Rear Rh
48210	48210-37K21	Spring Assy, Rear Rh
48210	90389-16026	Bush, Front Spring No.2 Shackle
48211	48201-37J50	Leaf, Rear Spring, No.1
48211	48201-37J51	Leaf, Rear Spring, No.1
48211	48201-37J90	Leaf, Rear Spring, No.1
48211	48201-37K21	Leaf, Rear Spring, No.1
48211	48201-37J91	Leaf, Rear Spring, No.1
48211	48201-37K20	Leaf, Rear Spring, No.1
48212	48202-37J50	Leaf, Rear Spring, No.2
48212	48202-37J51	Leaf, Rear Spring, No.2
48212	48252-37521	Silencer, Front Spring, No.1
48212	48202-37J90	Leaf, Rear Spring, No.2
48212	48202-37K21	Leaf, Rear Spring, No.2
48212	48202-37J91	Leaf, Rear Spring, No.2
48212	48202-37K20	Leaf, Rear Spring, No.2
48247	48247-37C31	Bolt, Rear Spring, Center
48247	48247-37J20	Bolt, Rear Spring, Center
48247	48247-37J21	Bolt, Rear Spring, Center
48247	48247-37J81	Bolt, Rear Spring, Center
48247	48247-3V050	Bolt, Rear Spring, Center
48251	48253-3V020	Spacer, Rear Spring Leaf
48252	48252-37380	Silencer, Rear Spring
48252	48252-37670	Silencer, Front Spring, No.1
48253	48253-37J50	Spacer, Rear Spring, No.3
48253	48253-37J51	Spacer, Rear Spring, No.3
48254	48254-3V070	Spacer, Rear Spring Leaf
48254	48264-37N60	Spacer, Rear Spring Leaf
48261	48213-37J50	Leaf, Rear Helper Spring, No.1
48261	48213-37J51	Leaf, Rear Helper Spring, No.1
48261	48213-37J81	Leaf, Rear Helper Spring, No.1
48261	48213-37J90	Leaf, Rear Helper Spring, No.1
48261	48213-37J91	Leaf, Rear Helper Spring, No.1
48261	48213-37K20	Leaf, Rear Helper Spring, No.1
48261	48213-37K21	Leaf, Rear Helper Spring, No.1
48262	48214-37J50	Leaf, Rear Helper Spring, No.2
48262	48214-37J51	Leaf, Rear Helper Spring, No.2
48262	48214-37J81	Leaf, Rear Helper Spring, No.2
48262	48214-37J90	Leaf, Rear Helper Spring, No.2
48262	48214-37J91	Leaf, Rear Helper Spring, No.2
48262	48214-37K20	Leaf, Rear Helper Spring, No.2
48262	48214-37K21	Leaf, Rear Helper Spring, No.2
48284	48284-0W070	Nut, Rear Spring Center Bolt
48284	48284-3B750	Nut, Rear Spring Center Bolt

OEM	Part name	Category
48192-37100	Wedge, Caster(For Rear Leaf Spring)	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48201-37J50	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48201-37J51	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48201-37J90	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48201-37J91	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48201-37K20	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48201-37K21	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48202-37J50	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48202-37J51	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48202-37J90	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48202-37J91	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48202-37K20	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48202-37K21	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48210-37J50	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48210-37J51	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48210-37J90	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48210-37J91	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48210-37K20	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48210-37K21	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48213-37J50	Leaf, Rear Helper Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48213-37J51	Leaf, Rear Helper Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48213-37J81	Leaf, Rear Helper Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48213-37J90	Leaf, Rear Helper Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48213-37J91	Leaf, Rear Helper Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48213-37K20	Leaf, Rear Helper Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48213-37K21	Leaf, Rear Helper Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48214-37J50	Leaf, Rear Helper Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48214-37J51	Leaf, Rear Helper Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48214-37J81	Leaf, Rear Helper Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48214-37J90	Leaf, Rear Helper Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48214-37J91	Leaf, Rear Helper Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48214-37K20	Leaf, Rear Helper Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48214-37K21	Leaf, Rear Helper Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48247-37C31	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48247-37J20	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48247-37J21	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48247-37J81	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48247-3V050	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48252-37380	Silencer, Rear Spring	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48252-37521	Silencer, Front Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48252-37670	Silencer, Front Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48253-37J50	Spacer, Rear Spring, No.3	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48253-37J51	Spacer, Rear Spring, No.3	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48253-3V020	Spacer, Rear Spring Leaf	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48254-3V070	Spacer, Rear Spring Leaf	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48264-37N60	Spacer, Rear Spring Leaf	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48284-0W070	Nut, Rear Spring Center Bolt	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
48284-3B750	Nut, Rear Spring Center Bolt	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
90389-16026	Bush, Front Spring No.2 Shackle	Rear Spring & Shock Absorber ([07.2011 - ] MAIN 2 + HELPER 2-LEAF (1107- )T3..30T..CBU ; (1107- )XKU710,720. .30T..IV3)
