XKU650

Toyota DYNA-TOYOACE · 2011 · 3,834 parts · 215 categories
XKU650 ×

← Back to categories

3,834 items

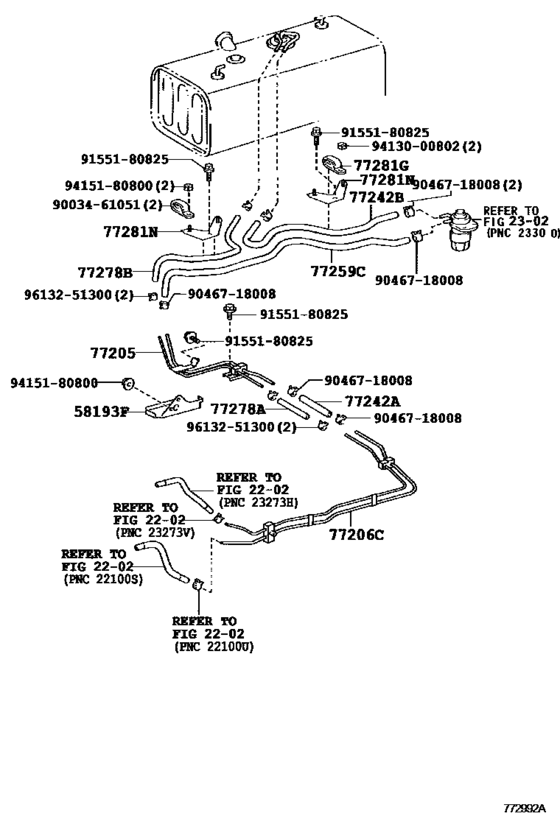

Fuel Tank & Tube ([07.2011 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1107- )XKC655,XKU65#) 20
#OEMPart name
58193 58193-37040 Bracket, Fuel Pipe
77205 77205-37E30 Tube Sub-Assy, Fuel Main
77206 77206-37J50 Tube Sub-Assy, Fuel Main, No.2
77242 95337-12016 Hose, Fuel, No.1 (For Main Tube, No.2)
77242 77279-37190 Hose, Fuel, No.2 (For Main Tube, No.2)
77242 77279-37191 Hose, Fuel, No.2 (For Main Tube, No.2)
77259 77259-37460 Hose, Fuel
77259 77259-37461 Hose, Fuel
77278 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77278 77259-37470 Hose, Fuel, No.2 (For Return Tube, No.2)
77278 77259-37471 Hose, Fuel, No.2 (For Return Tube, No.2)
77281 90034-61050 Clamp, Fuel Hose
77281 77281-37550 Clamp, Fuel Hose
9003461051 90034-61051 Clamp, Fuel Hose
9046718008 90467-18008 Clip(For Water By-Pass Hose No.2)
9155180825 91551-80825 Bolt(For Cylinder Head Set Sub)
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9415180800 94151-80800 Nut (For Transmission Control Cable)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
