XKU650

Toyota DYNA-TOYOACE · 2011 · 3,834 parts · 215 categories

← Back to categories

3,834 items

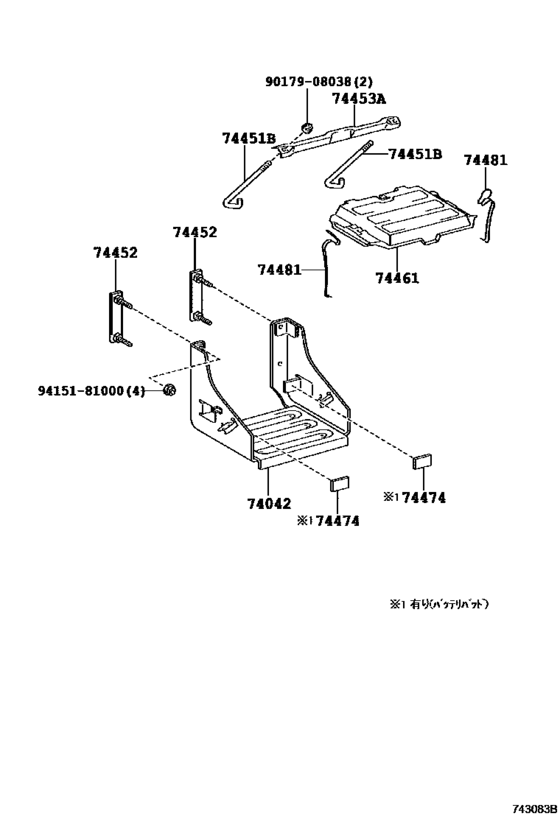

Battery Carrier ([07.2011 - ] (1107- )XKC655,XKU65#) 13

#	OEM	Part name
74042	74042-37280	Bracket Sub-Assy, Battery
74042	74042-37281	Bracket Sub-Assy, Battery
74042	74042-37300	Bracket Sub-Assy, Battery
74451	74451-37011	Bolt, Battery Clamp
74452	74452-37031	Plate, Battery Set
74453	74453-36070	Bar, Battery Set Plate
74453	74453-37131	Bar, Battery Set Plate
74461	74461-37020	Cover, Battery
74461	74461-37030	Cover, Battery
74474	74475-36040	Pad, Battery
74481	74481-36030	Clamp Sub-Assy, Battery Cover
9017908038	90179-08038	Nut
9415181000	94151-81000	NUT FLANGE

OEM	Part name	Category
74042-37280	Bracket Sub-Assy, Battery	Battery Carrier ([07.2011 - ] (1107- )XKC655,XKU65#)
74042-37281	Bracket Sub-Assy, Battery	Battery Carrier ([07.2011 - ] (1107- )XKC655,XKU65#)
74042-37300	Bracket Sub-Assy, Battery	Battery Carrier ([07.2011 - ] (1107- )XKC655,XKU65#)
74451-37011	Bolt, Battery Clamp	Battery Carrier ([07.2011 - ] (1107- )XKC655,XKU65#)
74452-37031	Plate, Battery Set	Battery Carrier ([07.2011 - ] (1107- )XKC655,XKU65#)
74453-36070	Bar, Battery Set Plate	Battery Carrier ([07.2011 - ] (1107- )XKC655,XKU65#)
74453-37131	Bar, Battery Set Plate	Battery Carrier ([07.2011 - ] (1107- )XKC655,XKU65#)
74461-37020	Cover, Battery	Battery Carrier ([07.2011 - ] (1107- )XKC655,XKU65#)
74461-37030	Cover, Battery	Battery Carrier ([07.2011 - ] (1107- )XKC655,XKU65#)
74475-36040	Pad, Battery	Battery Carrier ([07.2011 - ] (1107- )XKC655,XKU65#)
74481-36030	Clamp Sub-Assy, Battery Cover	Battery Carrier ([07.2011 - ] (1107- )XKC655,XKU65#)
90179-08038	Nut	Battery Carrier ([07.2011 - ] (1107- )XKC655,XKU65#)
94151-81000	NUT FLANGE	Battery Carrier ([07.2011 - ] (1107- )XKC655,XKU65#)

Source: Public OEM parts-catalog data
Variants: 2 / 8
Category: 215
Collected: 2026-08-03
