Search › Model › XKU640

XKU640

Toyota DYNA-TOYOACE · 2011 · 3,866 parts · 216 categories

← Back to categories

3,866 items

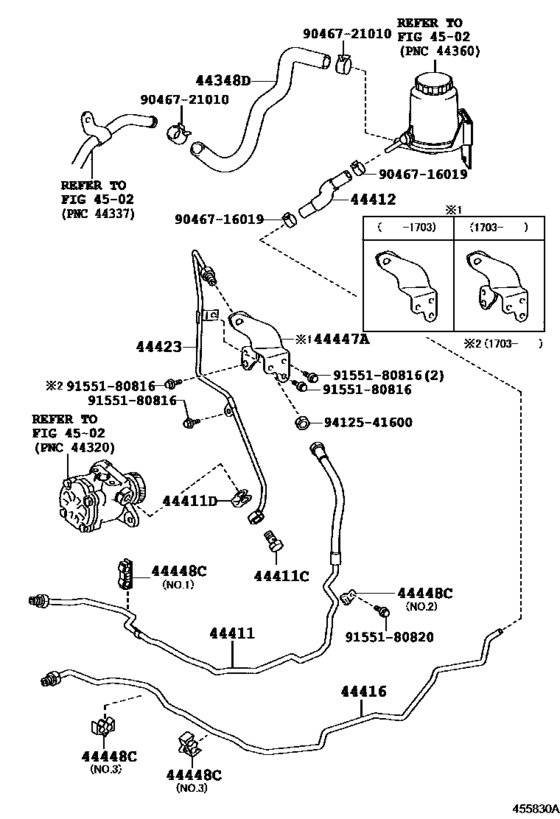

Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3) 18

#	OEM	Part name
44348	44348-37490	Hose, Oil Reservoir To Pump, No.2
44348	44348-37491	Hose, Oil Reservoir To Pump, No.2
44411	44411-37470	Hose, Pressure Feed
44411	44411-37471	Hose, Pressure Feed
44411	90401-16027	Bolt, Union(For Pressure Feed Tube)
44411	44327-30030	Gasket(For Pressure Hose)
44412	44412-37320	Hose, Return
44416	44416-37670	Tube, Return(For Steering Gear Outlet)
44423	44423-37141	Tube, Oil Pump To Gear Box
44447	44447-37310	Bracket, Hose Support, No.1
44448	44448-37030	Bracket, Hose Support, No.2
44448	44448-37060	Clamp, Pressure Feed, No.2
44448	44448-37080	Clamp, Pressure Feed, No.2
9046716019	90467-16019	Clip(For Return No.1)
9046721010	90467-21010	Clip(For Ventilation Hose No.2)
9155180816	91551-80816	Bolt(For Manual Transmission Oil Separator)
9155180820	91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)
9412541600	94125-41600	Nut (For Rear Axle Shaft)

OEM	Part name	Category
44327-30030	Gasket(For Pressure Hose)	Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3)
44348-37490	Hose, Oil Reservoir To Pump, No.2	Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3)
44348-37491	Hose, Oil Reservoir To Pump, No.2	Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3)
44411-37470	Hose, Pressure Feed	Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3)
44411-37471	Hose, Pressure Feed	Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3)
44412-37320	Hose, Return	Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3)
44416-37670	Tube, Return(For Steering Gear Outlet)	Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3)
44423-37141	Tube, Oil Pump To Gear Box	Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3)
44447-37310	Bracket, Hose Support, No.1	Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3)
44448-37030	Bracket, Hose Support, No.2	Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3)
44448-37060	Clamp, Pressure Feed, No.2	Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3)
44448-37080	Clamp, Pressure Feed, No.2	Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3)
90401-16027	Bolt, Union(For Pressure Feed Tube)	Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3)
90467-16019	Clip(For Return No.1)	Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3)
90467-21010	Clip(For Ventilation Hose No.2)	Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3)
91551-80816	Bolt(For Manual Transmission Oil Separator)	Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3)
91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)	Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3)
94125-41600	Nut (For Rear Axle Shaft)	Power Steering Tube ([07.2011 - ] (1107- )XKU600,640,650..CBU,IV3)
