XKU640

Toyota DYNA-TOYOACE · 2011 · 3,866 parts · 216 categories

← Back to categories

3,866 items

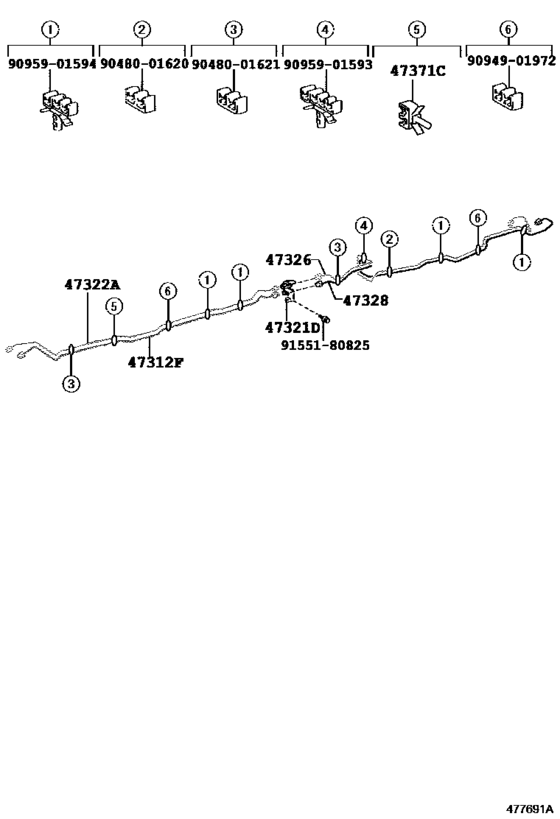

Brake Tube & Clamp ([07.2011 - ] (1107- )XKU640..T4 ; (1107- )XKC655,XKU65#) 8

#	OEM	Part name
47326	47326-37680	Tube, Rear Brake, No.6
47328	47328-37540	Tube, Rear Brake, No.8
9048001620	90480-01620	Grommet, No.1(For Front Brake Tube)
9048001621	90480-01621	Grommet(For Front Brake Tube)
9094901972	90949-01972	Grommet, No.1(For Front Brake Tube)
9095901593	90959-01593	Clamp, Brake Tube, No.6
9095901594	90959-01594	Clamp, Brake Tube, No.9
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)

OEM	Part name	Category
47326-37680	Tube, Rear Brake, No.6	Brake Tube & Clamp ([07.2011 - ] (1107- )XKU640..T4 ; (1107- )XKC655,XKU65#)
47328-37540	Tube, Rear Brake, No.8	Brake Tube & Clamp ([07.2011 - ] (1107- )XKU640..T4 ; (1107- )XKC655,XKU65#)
90480-01620	Grommet, No.1(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )XKU640..T4 ; (1107- )XKC655,XKU65#)
90480-01621	Grommet(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )XKU640..T4 ; (1107- )XKC655,XKU65#)
90949-01972	Grommet, No.1(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )XKU640..T4 ; (1107- )XKC655,XKU65#)
90959-01593	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([07.2011 - ] (1107- )XKU640..T4 ; (1107- )XKC655,XKU65#)
90959-01594	Clamp, Brake Tube, No.9	Brake Tube & Clamp ([07.2011 - ] (1107- )XKU640..T4 ; (1107- )XKC655,XKU65#)
91551-80825	Bolt(For Cylinder Head Set Sub)	Brake Tube & Clamp ([07.2011 - ] (1107- )XKU640..T4 ; (1107- )XKC655,XKU65#)

Source: Public OEM parts-catalog data
Variants: 2 / 2
