Search › Model › XKU600

XKU600

Toyota DYNA-TOYOACE · 2011 · 4,090 parts · 224 categories

4,090 items

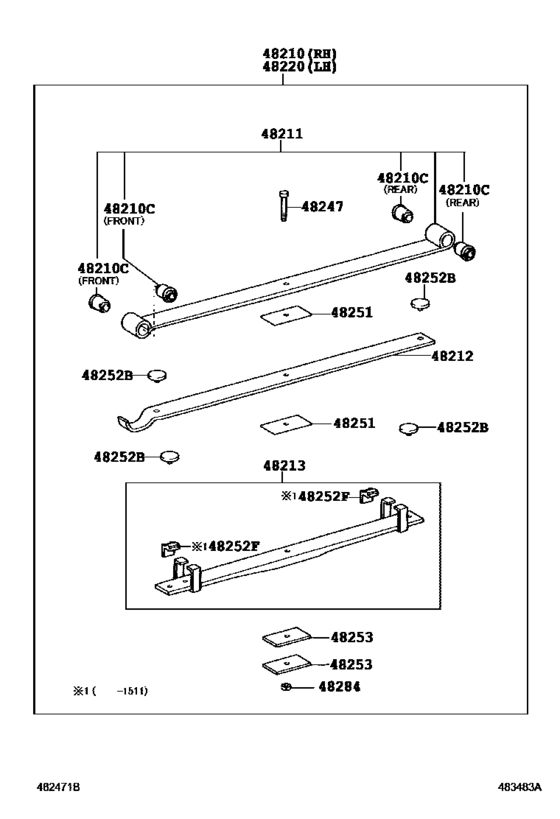

Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5) 21

#	OEM	Part name
48210	48210-3V600	Spring Assy, Rear Rh
48210	48210-3V601	Spring Assy, Rear Rh
48210	90389-16024	Bush(For Rear Spring Leaf)
48210	90389-16026	Bush, Front Spring No.2 Shackle
48211	48201-3V600	Leaf, Rear Spring, No.1
48211	48201-3V601	Leaf, Rear Spring, No.1
48212	48212-3V600	Leaf, Rear Spring, No.2
48212	48212-3V601	Leaf, Rear Spring, No.2
48212	48252-37521	Silencer, Front Spring, No.1
48213	48202-3V600	Leaf, Rear Spring, No.3
48213	48202-3V601	Leaf, Rear Spring, No.3
48247	48247-37640	Bolt, Rear Spring, Center
48247	48247-37641	Bolt, Rear Spring, Center
48251	48251-36530	Spacer, Front Leaf Spring, No.1
48251	48282-37521	Spacer, Front Leaf Spring, No.1
48252	48252-37670	Silencer, Front Spring, No.1
48252	48252-37380	Silencer, Rear Spring
48253	48115-37J81	Spacer(For Front Spring)
48253	48253-36530	Spacer(For Front Spring)
48284	48284-0W060	Nut, Front Spring Center Bolt
48284	48299-27620	Nut, Front Spring Center Bolt

OEM	Part name	Category
48115-37J81	Spacer(For Front Spring)	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
48201-3V600	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
48201-3V601	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
48202-3V600	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
48202-3V601	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
48210-3V600	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
48210-3V601	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
48212-3V600	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
48212-3V601	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
48247-37640	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
48247-37641	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
48251-36530	Spacer, Front Leaf Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
48252-37380	Silencer, Rear Spring	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
48252-37521	Silencer, Front Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
48252-37670	Silencer, Front Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
48253-36530	Spacer(For Front Spring)	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
48282-37521	Spacer, Front Leaf Spring, No.1	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
48284-0W060	Nut, Front Spring Center Bolt	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
48299-27620	Nut, Front Spring Center Bolt	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
90389-16024	Bush(For Rear Spring Leaf)	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)
90389-16026	Bush, Front Spring No.2 Shackle	Rear Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )IV5)

Source: Public OEM parts-catalog data
Variants: 2 / 9
Category: 224
Collected: 2026-08-03
