XKU600

Toyota DYNA-TOYOACE · 2011 · 4,090 parts · 224 categories
XKU600 ×

← Back to categories

4,090 items

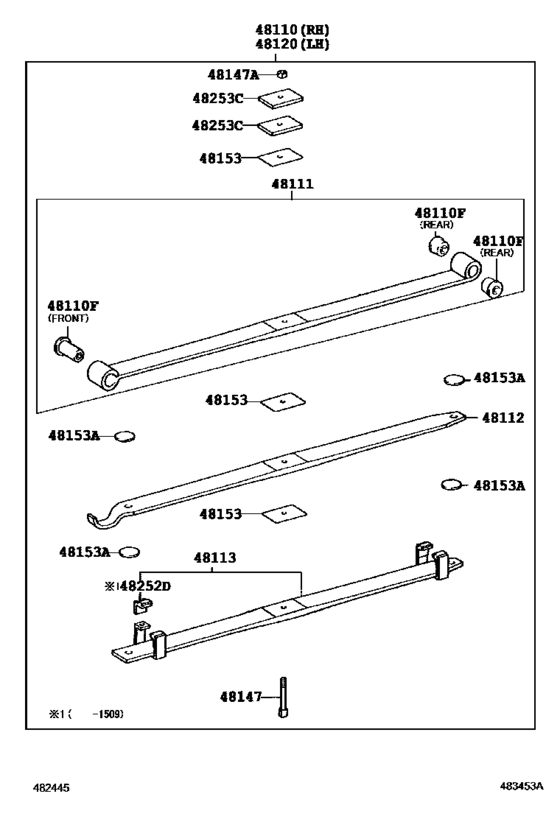

Front Spring & Shock Absorber ([07.2011 - ] 3-LEAF (1107- )XKU600..30T) 29
#OEMPart name
48110 48110-3V391 Spring Assy, Front, Rh
48110 48110-3V392 Spring Assy, Front, Rh
48110 90389-16025 Bush, Front Spring No.2 Shackle
48110 90389-16026 Bush, Front Spring No.2 Shackle
48111 48101-3V391 Leaf, Front Spring, No.1
48111 48101-3V392 Leaf, Front Spring, No.1
48111 48101-3V401 Leaf, Front Spring, No.1
48111 48101-3V402 Leaf, Front Spring, No.1
48112 48112-3V390 Leaf, Front Spring, No.2
48112 48112-3V391 Leaf, Front Spring, No.2
48112 48252-37521 Silencer, Front Spring, No.1
48112 48112-3V400 Leaf, Front Spring, No.2
48112 48112-3V401 Leaf, Front Spring, No.2
48113 48102-3V390 Leaf, Front Spring, No.3
48113 48102-3V391 Leaf, Front Spring, No.3
48113 48102-3V400 Leaf, Front Spring, No.3
48113 48102-3V401 Leaf, Front Spring, No.3
48120 48110-3V401 Spring Assy, Front, Lh
48120 48110-3V402 Spring Assy, Front, Lh
48147 48147-37410 Bolt, Front Spring, Center
48147 48147-37A01 Bolt, Front Spring, Center
48147 48284-0W060 Nut, Front Spring Center Bolt
48147 48284-37130 Nut, Front Spring Center Bolt
48153 48152-37J42 Spacer, Front Leaf Spring, No.1
48153 48253-3B440 Spacer, Front Leaf Spring, No.1
48153 48252-37670 Silencer, Front Spring, No.1
48252 48252-37380 Silencer, Rear Spring
48253 48114-37J42 Spacer(For Front Spring)
48253 48253-3B122 Leaf, Front Spring, No.4
