Search › Model › XKU414
XKU414

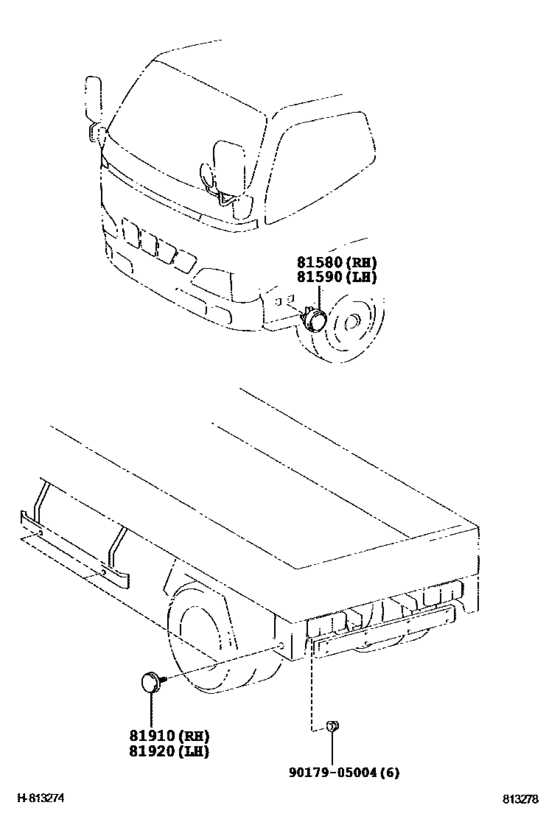

Reflex Reflector ([05.2005 - ] (0505- )) 4
| # | OEM | Part name |
|---|---|---|
| 81580 | 81580-37031 | Reflector Assy, Reflex Side, Rh |
| 81590 | 81590-37031 | Reflector Assy, Reflex Side, Lh |
| 81910 | 81910-37070 | Reflector Assy, Reflex Side, Rh |
| 9017905004 | 90179-05004 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 81580-37031 | Reflector Assy, Reflex Side, Rh | Reflex Reflector ([05.2005 - ] (0505- )) |
| 81590-37031 | Reflector Assy, Reflex Side, Lh | Reflex Reflector ([05.2005 - ] (0505- )) |
| 81910-37070 | Reflector Assy, Reflex Side, Rh | Reflex Reflector ([05.2005 - ] (0505- )) |
| 90179-05004 | NUT | Reflex Reflector ([05.2005 - ] (0505- )) |
