XKU414

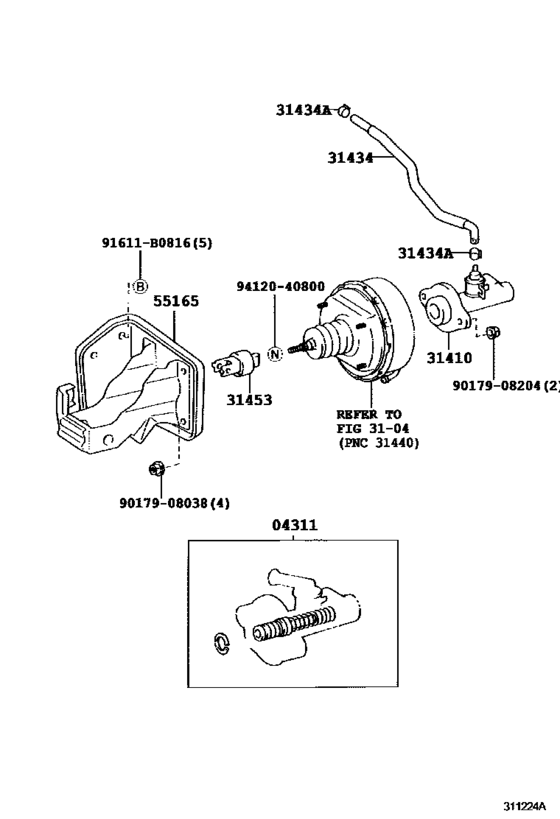

Clutch Master Cylinder ([10.2003 - ] (0310- )6F) 11
| # | OEM | Part name |
|---|---|---|
| 4311 | 04311-37030 | Cylinder Kit, Clutch Master |
| 31410 | 31401-37011 | Cylinder Assy, Clutch Master |
| 31434 | 31434-37090 | Tube, Clutch Reservoir |
| 31434 | 96133-41300 | Clip(For Air Hose No.6) |
| 31453 | 31404-28020 | Clevis, Clutch Master Cylinder Push Rod |
| 55165 | 55105-37051 | Support, Clutch Master Cylinder |
| 91611 | 91611-B0816 | Bolt |
| 9017908038 | 90179-08038 | Nut |
| 9017908204 | 90179-08204 | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER |
| 9412040800 | 94120-40800 | Nut(For Clutch Pedal Stopper) |
| OEM | Part name | Category |
|---|---|---|
| 04311-37030 | Cylinder Kit, Clutch Master | Clutch Master Cylinder ([10.2003 - ] (0310- )6F) |
| 31401-37011 | Cylinder Assy, Clutch Master | Clutch Master Cylinder ([10.2003 - ] (0310- )6F) |
| 31404-28020 | Clevis, Clutch Master Cylinder Push Rod | Clutch Master Cylinder ([10.2003 - ] (0310- )6F) |
| 31434-37090 | Tube, Clutch Reservoir | Clutch Master Cylinder ([10.2003 - ] (0310- )6F) |
| 55105-37051 | Support, Clutch Master Cylinder | Clutch Master Cylinder ([10.2003 - ] (0310- )6F) |
| 90080-18070 | NUT, WWASHER | Clutch Master Cylinder ([10.2003 - ] (0310- )6F) |
| 90179-08038 | Nut | Clutch Master Cylinder ([10.2003 - ] (0310- )6F) |
| 90179-08204 | Nut | Clutch Master Cylinder ([10.2003 - ] (0310- )6F) |
| 91611-B0816 | Bolt | Clutch Master Cylinder ([10.2003 - ] (0310- )6F) |
| 94120-40800 | Nut(For Clutch Pedal Stopper) | Clutch Master Cylinder ([10.2003 - ] (0310- )6F) |
| 96133-41300 | Clip(For Air Hose No.6) | Clutch Master Cylinder ([10.2003 - ] (0310- )6F) |
