Search › Model › XKU414

XKU414

Toyota DYNA-TOYOACE · 2003 · 3,430 parts · 209 categories

3,430 items

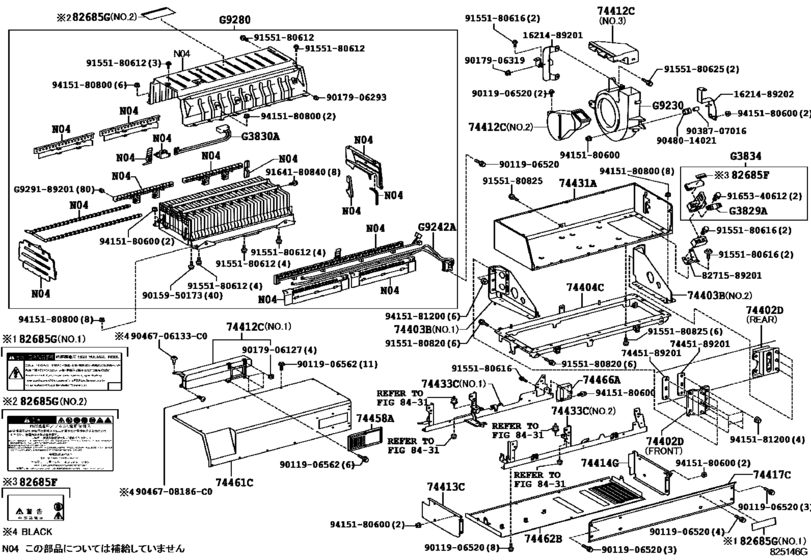

Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910)) 44

#	OEM	Part name
0	90982-11049	Fuse, Electric Vehicle
74402	74401-89202	Bracket Sub-Assy, Battery, Lh
74402	74402-89201	Bracket Sub-Assy, Battery, Lh
74403	74403-89201	Carrier Sub-Assy, Battery
74403	74403-89202	Carrier Sub-Assy, Battery
74404	74404-89202	Carrier Sub-Assy, Battery, Upr
74412	74412-89204	Duct, Battery Carrier
74412	74412-89205	Duct, Battery Carrier
74412	74412-89206	Duct, Battery Carrier
74413	74413-89201	Panel, Battery Carrier, Front
74414	74414-89201	Panel, Battery Carrier, Rr
74417	74417-89201	Panel, Battery Carrier Lh
74431	74431-89201	Tray, Battery
74433	74433-89201	Support, Battery Tray
74433	74434-89210	Support, Battery Tray
74458	74458-89202	Lid, Battery Cover, No.1
74461	74461-89202	Cover, Battery
74462	74464-89201	Panel, Battery Carrier, No.2
74466	74466-89201	Panel, Battery Carrier, No.6
82685	82685-48040	Plate, Caution
1621489201	16214-89201	New Genuine Part
1621489202	16214-89202	New Genuine Part
7445189201	74451-89201	Plate, Battery Carrier Support
8271589201	82715-89201	Bracket,wiring Harness Clamp
9011906520	90119-06520	BOLT WWASHER
9011906562	90119-06562	New Genuine Part
9015950173	90159-50173	Screw
9017906127	90179-06127	Bracket, Front Licence Plate Mounting
9017906293	90179-06293	NUT
9017906319	90179-06319	Nut, Cap(For Cylinder Head Cover)
9038707016	90387-07016	Collar(For Intake Air Connector)
9046706133	90467-06133-C0	Clip, Step Plate Cover
9046708186	90467-08186-C0	Clip(For Front Bumper), No.1
9048014021	90480-14021	GROMMET
9155180612	91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)
9155180616	91551-80616	BOLT FLANGE
9155180625	91551-80625	Bolt(For Camshaft Housing Set)
9155180820	91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)
9164180840	91641-80840	BOLTWWASHER
9165340612	91653-40612	BOLT WWASHER
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)
9415180800	94151-80800	Nut (For Transmission Control Cable)
9415181200	94151-81200	New Genuine Part

OEM	Part name	Category
16214-89201	New Genuine Part	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
16214-89202	New Genuine Part	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74401-89202	Bracket Sub-Assy, Battery, Lh	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74402-89201	Bracket Sub-Assy, Battery, Lh	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74403-89201	Carrier Sub-Assy, Battery	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74403-89202	Carrier Sub-Assy, Battery	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74404-89202	Carrier Sub-Assy, Battery, Upr	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74412-89204	Duct, Battery Carrier	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74412-89205	Duct, Battery Carrier	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74412-89206	Duct, Battery Carrier	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74413-89201	Panel, Battery Carrier, Front	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74414-89201	Panel, Battery Carrier, Rr	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74417-89201	Panel, Battery Carrier Lh	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74431-89201	Tray, Battery	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74433-89201	Support, Battery Tray	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74434-89210	Support, Battery Tray	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74451-89201	Plate, Battery Carrier Support	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74458-89202	Lid, Battery Cover, No.1	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74461-89202	Cover, Battery	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74464-89201	Panel, Battery Carrier, No.2	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
74466-89201	Panel, Battery Carrier, No.6	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
82685-48040	Plate, Caution	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
82715-89201	Bracket,wiring Harness Clamp	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
90119-06520	BOLT WWASHER	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
90119-06562	New Genuine Part	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
90159-50173	Screw	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
90179-06127	Bracket, Front Licence Plate Mounting	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
90179-06293	NUT	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
90179-06319	Nut, Cap(For Cylinder Head Cover)	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
90387-07016	Collar(For Intake Air Connector)	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
90467-06133-C0	Clip, Step Plate Cover	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
90467-08186-C0	Clip(For Front Bumper), No.1	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
90480-14021	GROMMET	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
90982-11049	Fuse, Electric Vehicle	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
91551-80616	BOLT FLANGE	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
91551-80625	Bolt(For Camshaft Housing Set)	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
91551-80825	Bolt(For Cylinder Head Set Sub)	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
91641-80840	BOLTWWASHER	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
91653-40612	BOLT WWASHER	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
94151-80600	Nut, Cap(For Cylinder Head Cover)	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
94151-80800	Nut (For Transmission Control Cable)	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
94151-81200	New Genuine Part	Battery & Battery Cable ([10.2006 - 10.2009] HV ﾊﾞｯﾃﾘ (0610-0910))
