Search › Model › XKU344
XKU344

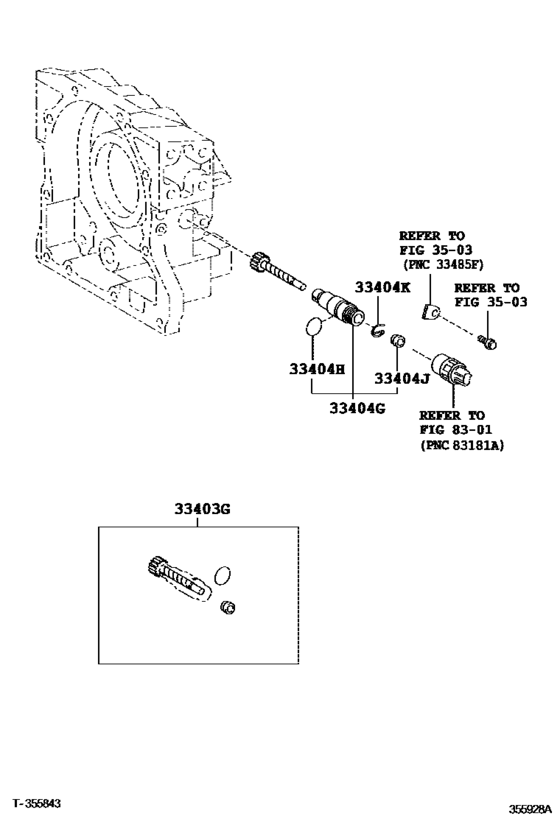

Speedometer Driven Gear (Atm) ([01.2008 - ] A860E (0801- )6FC) 6
| # | OEM | Part name |
|---|---|---|
| 33403 | 33482-80003 | Gear Sub-Assy, Speedometer Driven (Atm) |
| 33403 | 33482-80013 | Gear Sub-Assy, Speedometer Driven (Atm) |
| 33404 | 33404-37020 | Sleeve Sub-Assy, Speedometer Shaft (Atm) |
| 33404 | 90301-21014 | Ring, O (For Atm Speedometer Shaft Sleeve) |
| 33404 | 90310-10001 | Seal, Oil (For Atm Speedometer Shaft Sleeve) |
| 33404 | 90468-12005 | Clip (For Mtm Speedometer Shaft Sleeve) |
| OEM | Part name | Category |
|---|---|---|
| 33404-37020 | Sleeve Sub-Assy, Speedometer Shaft (Atm) | Speedometer Driven Gear (Atm) ([01.2008 - ] A860E (0801- )6FC) |
| 33482-80003 | Gear Sub-Assy, Speedometer Driven (Atm) | Speedometer Driven Gear (Atm) ([01.2008 - ] A860E (0801- )6FC) |
| 33482-80013 | Gear Sub-Assy, Speedometer Driven (Atm) | Speedometer Driven Gear (Atm) ([01.2008 - ] A860E (0801- )6FC) |
| 90301-21014 | Ring, O (For Atm Speedometer Shaft Sleeve) | Speedometer Driven Gear (Atm) ([01.2008 - ] A860E (0801- )6FC) |
| 90310-10001 | Seal, Oil (For Atm Speedometer Shaft Sleeve) | Speedometer Driven Gear (Atm) ([01.2008 - ] A860E (0801- )6FC) |
| 90468-12005 | Clip (For Mtm Speedometer Shaft Sleeve) | Speedometer Driven Gear (Atm) ([01.2008 - ] A860E (0801- )6FC) |
