XKU344

Toyota DYNA-TOYOACE · 2003 · 3,683 parts · 212 categories

← Back to categories

3,683 items

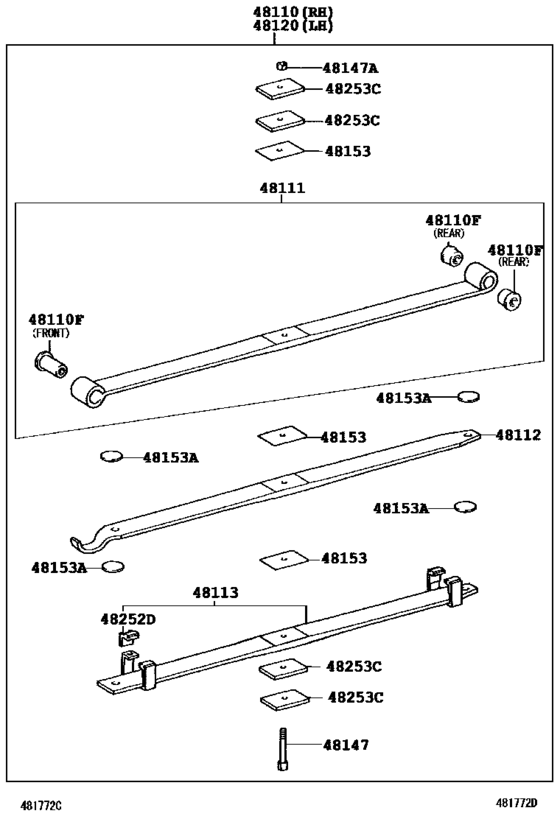

Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T) 19

#	OEM	Part name
48110	48110-37B40	Spring Assy, Front, Rh
48110	48110-37B41	Spring Assy, Front, Rh
48110	90389-16025	Bush, Front Spring No.2 Shackle
48110	90389-16026	Bush, Front Spring No.2 Shackle
48111	48101-37B40	Leaf, Front Spring, No.1
48111	48101-37B50	Leaf, Front Spring, No.1
48112	48112-37B40	Leaf, Front Spring, No.2
48112	48112-37B50	Leaf, Front Spring, No.2
48113	48102-37B40	Leaf, Front Spring, No.3
48113	48102-37B50	Leaf, Front Spring, No.3
48120	48110-37B50	Spring Assy, Front, Lh
48120	48110-37B51	Spring Assy, Front, Lh
48147	48147-37B40	Bolt, Front Spring, Center
48147	48284-37130	Nut, Front Spring Center Bolt
48153	48253-3B440	Spacer, Front Leaf Spring, No.1
48153	48152-37J42	Spacer, Front Leaf Spring, No.1
48153	48252-37670	Silencer, Front Spring, No.1
48252	48252-37380	Silencer, Rear Spring
48253	48253-3B122	Leaf, Front Spring, No.4

OEM	Part name	Category
48101-37B40	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
48101-37B50	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
48102-37B40	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
48102-37B50	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
48110-37B40	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
48110-37B41	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
48110-37B50	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
48110-37B51	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
48112-37B40	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
48112-37B50	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
48147-37B40	Bolt, Front Spring, Center	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
48152-37J42	Spacer, Front Leaf Spring, No.1	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
48252-37380	Silencer, Rear Spring	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
48252-37670	Silencer, Front Spring, No.1	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
48253-3B122	Leaf, Front Spring, No.4	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
48253-3B440	Spacer, Front Leaf Spring, No.1	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
48284-37130	Nut, Front Spring Center Bolt	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
90389-16025	Bush, Front Spring No.2 Shackle	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
90389-16026	Bush, Front Spring No.2 Shackle	Front Spring & Shock Absorber ([10.2003 - ] 3-LEAF (0310- )30T)
