Search › Model › XKU304

XKU304

Toyota DYNA-TOYOACE · 2003 · 3,574 parts · 206 categories

3,574 items

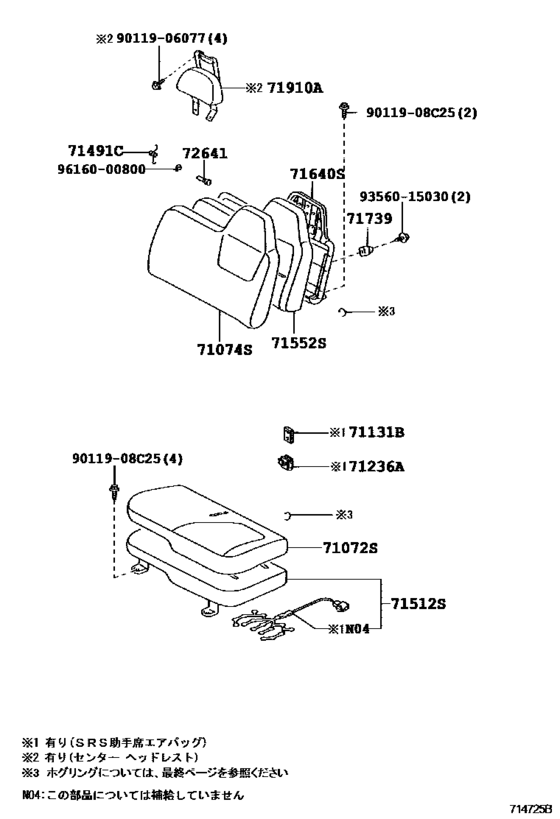

Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- )) 22

#	OEM	Part name
71072	71072-3V070-B0	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-3V110-B0	Cover, Front Seat Cushion, Lh(For Separate Type)
71074	70169-37050-B0	Cover, Front Seat Back, Lh(For Separate Type)
71074	70169-37400-B0	Cover, Front Seat Back, Lh(For Separate Type)
71131	71131-37030	Plate, Front Seat Cushion, No.1
71236	71236-37010	Clamp, Rear Seat Cushion Spring
71491	71491-89101	Spring, Rear Seat Back Lock Hook
71512	71052-37140	Pad, Front Seat Cushion, Lh (For Separate Type)
71512	71502-37090	Pad, Front Seat Cushion, Lh (For Separate Type)
71512	71502-37291	Pad, Front Seat Cushion, Lh (For Separate Type)
71512	71502-37220	Pad, Front Seat Cushion, Lh (For Separate Type)
71552	71552-37100	Pad, Front Seat Back, Lh(For Separate Type)
71552	71552-37170	Pad, Front Seat Back, Lh(For Separate Type)
71640	71014-37150	Spring Assy, Front Seat Back, Lh(For Separate Type)
71640	71014-37160	Spring Assy, Front Seat Back, Lh(For Separate Type)
71739	71739-37010	Cushion, Seat Support
71910	71910-37180-B1	Headrest Assy, Front Seat
72641	72641-37010	Pin, Rear Seat Back Lock
9011908	90119-08C25	BOLT WWASHER
9011906077	90119-06077	Bolt
9356015030	93560-15030	New Genuine Part
9616000800	96160-00800	Ring, E(For Counter Weight)

OEM	Part name	Category
70169-37050-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
70169-37400-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
71014-37150	Spring Assy, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
71014-37160	Spring Assy, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
71052-37140	Pad, Front Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
71072-3V070-B0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
71072-3V110-B0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
71131-37030	Plate, Front Seat Cushion, No.1	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
71236-37010	Clamp, Rear Seat Cushion Spring	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
71491-89101	Spring, Rear Seat Back Lock Hook	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
71502-37090	Pad, Front Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
71502-37220	Pad, Front Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
71502-37291	Pad, Front Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
71552-37100	Pad, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
71552-37170	Pad, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
71739-37010	Cushion, Seat Support	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
71910-37180-B1	Headrest Assy, Front Seat	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
72641-37010	Pin, Rear Seat Back Lock	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
90119-06077	Bolt	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
90119-08C25	BOLT WWASHER	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
93560-15030	New Genuine Part	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))
96160-00800	Ring, E(For Counter Weight)	Seat & Seat Track ([05.2004 - ] ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ (ｲｯﾀｲﾀｲﾌﾟ) (0405- ))

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 206
Collected: 2026-08-03
