XKU304

Toyota DYNA-TOYOACE · 2003 · 3,574 parts · 206 categories

← Back to categories

3,574 items

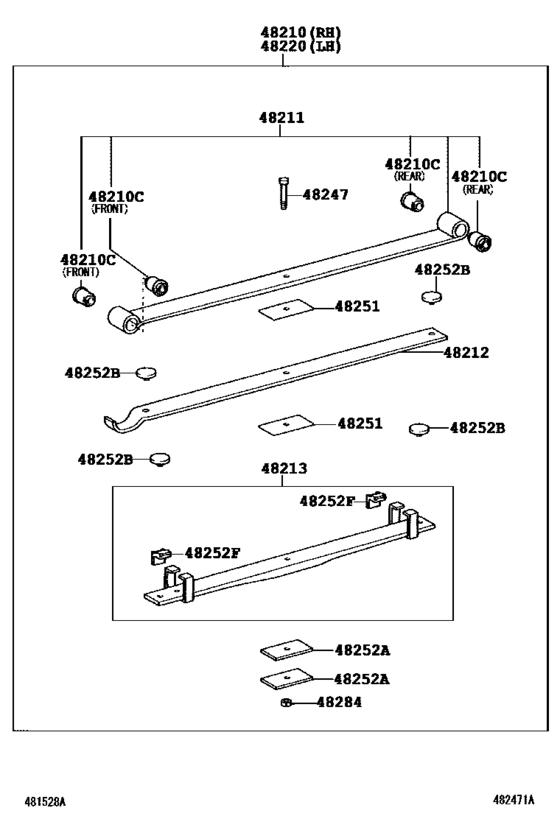

Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304) 18

#	OEM	Part name
48210	48210-3V600	Spring Assy, Rear Rh
48210	48210-3V601	Spring Assy, Rear Rh
48210	90389-16024	Bush(For Rear Spring Leaf)
48210	90389-16026	Bush, Front Spring No.2 Shackle
48211	48201-3V600	Leaf, Rear Spring, No.1
48211	48201-3V601	Leaf, Rear Spring, No.1
48212	48212-3V600	Leaf, Rear Spring, No.2
48212	48212-3V601	Leaf, Rear Spring, No.2
48212	48252-37521	Silencer, Front Spring, No.1
48213	48202-3V600	Leaf, Rear Spring, No.3
48213	48202-3V601	Leaf, Rear Spring, No.3
48247	48247-37640	Bolt, Rear Spring, Center
48251	48251-36530	Spacer, Front Leaf Spring, No.1
48252	48253-36530	Spacer(For Front Spring)
48252	48252-37670	Silencer, Front Spring, No.1
48252	48252-37380	Silencer, Rear Spring
48284	48299-27620	Nut, Front Spring Center Bolt
48284	48284-0W060	Nut, Front Spring Center Bolt

OEM	Part name	Category
48201-3V600	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48201-3V601	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48202-3V600	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48202-3V601	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48210-3V600	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48210-3V601	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48212-3V600	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48212-3V601	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48247-37640	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48251-36530	Spacer, Front Leaf Spring, No.1	Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48252-37380	Silencer, Rear Spring	Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48252-37521	Silencer, Front Spring, No.1	Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48252-37670	Silencer, Front Spring, No.1	Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48253-36530	Spacer(For Front Spring)	Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48284-0W060	Nut, Front Spring Center Bolt	Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48299-27620	Nut, Front Spring Center Bolt	Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
90389-16024	Bush(For Rear Spring Leaf)	Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
90389-16026	Bush, Front Spring No.2 Shackle	Rear Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
