XKU304

Toyota DYNA-TOYOACE · 2003 · 3,574 parts · 206 categories

3,574 items

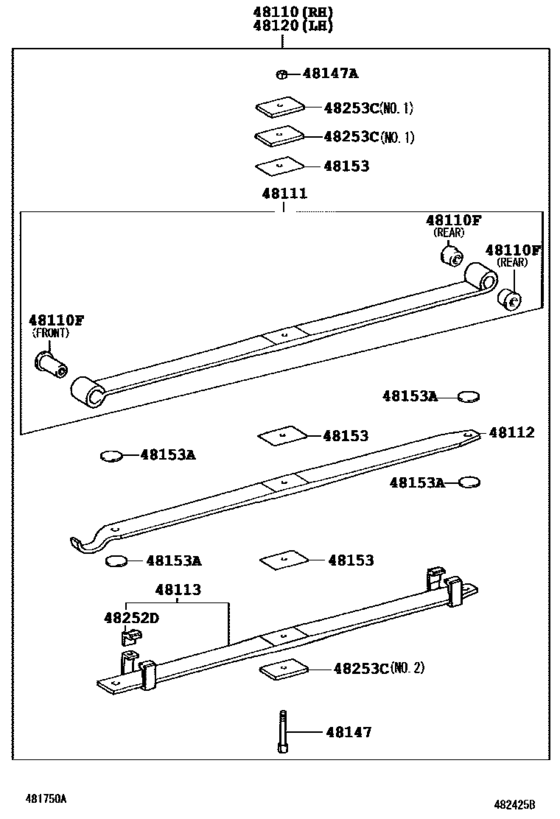

Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304) 20

#	OEM	Part name
48110	48110-37G40	Spring Assy, Front, Rh
48110	48110-3V561	Spring Assy, Front, Rh
48110	90389-16025	Bush, Front Spring No.2 Shackle
48110	90389-16026	Bush, Front Spring No.2 Shackle
48111	48101-37G40	Leaf, Front Spring, No.1
48111	48101-37G50	Leaf, Front Spring, No.1
48112	48112-37G40	Leaf, Front Spring, No.2
48112	48112-37G50	Leaf, Front Spring, No.2
48113	48102-37G40	Leaf, Front Spring, No.3
48113	48102-37G50	Leaf, Front Spring, No.3
48120	48110-37G50	Spring Assy, Front, Lh
48120	48110-3V571	Spring Assy, Front, Lh
48147	48147-37440	Bolt, Front Spring, Center
48147	48284-37130	Nut, Front Spring Center Bolt
48153	48253-3B440	Spacer, Front Leaf Spring, No.1
48153	48152-37J42	Spacer, Front Leaf Spring, No.1
48153	48252-37670	Silencer, Front Spring, No.1
48252	48252-37380	Silencer, Rear Spring
48253	48253-3B122	Leaf, Front Spring, No.4
48253	48253-3B770	Leaf, Front Spring, No.6

OEM	Part name	Category
48101-37G40	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48101-37G50	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48102-37G40	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48102-37G50	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48110-37G40	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48110-37G50	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48110-3V561	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48110-3V571	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48112-37G40	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48112-37G50	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48147-37440	Bolt, Front Spring, Center	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48152-37J42	Spacer, Front Leaf Spring, No.1	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48252-37380	Silencer, Rear Spring	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48252-37670	Silencer, Front Spring, No.1	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48253-3B122	Leaf, Front Spring, No.4	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48253-3B440	Spacer, Front Leaf Spring, No.1	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48253-3B770	Leaf, Front Spring, No.6	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
48284-37130	Nut, Front Spring Center Bolt	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
90389-16025	Bush, Front Spring No.2 Shackle	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
90389-16026	Bush, Front Spring No.2 Shackle	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XKU304)
