Search › Model › XKU280

XKU280

Toyota QUICK-DELIVERY-URBAN-SUPPORTER · 2006 · 3,340 parts · 166 categories

3,340 items

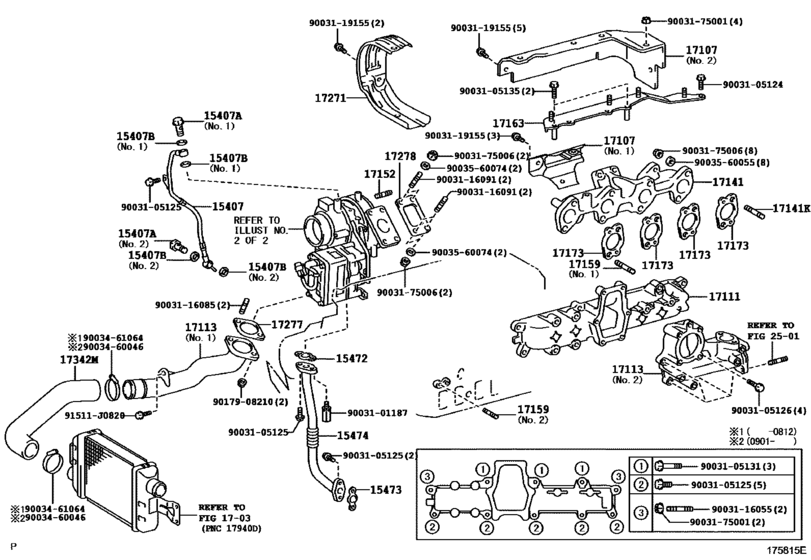

Manifold ([04.2007 - ] (0704- )) 51

#	OEM	Part name
15407	15407-78050	Pipe Sub-Assy, Turbo Oil Inlet
15407	15407-E0031	Pipe Sub-Assy, Turbo Oil Inlet
15407	15407-E0030	Pipe Sub-Assy, Turbo Oil Inlet
15407	90031-09073	Bolt, Union(For Turbo Oil Inlet Pipe)
15407	90034-01010	Bolt, Union(For Turbo Oil Inlet Pipe)
15407	90201-12030	Gasket(For Turbo Oil Inlet Pipe)
15407	90201-14014	Gasket(For Turbo Oil Inlet Pipe)
15472	15471-78011	Gasket, Turbo Oil Inlet
15474	15407-78060	Pipe, Turbo Oil Outlet
15474	15407-E0060	Pipe, Turbo Oil Outlet
17107	17107-78161	Insulator Sub-Assy, Exhaust Manifold Heat
17107	17107-E0012	Insulator Sub-Assy, Exhaust Manifold Heat
17107	17107-78162	Insulator Sub-Assy, Exhaust Manifold Heat
17107	17107-78171	Insulator Sub-Assy, Exhaust Manifold Heat
17107	17107-E0041	Insulator Sub-Assy, Exhaust Manifold Heat
17111	17111-78050	Manifold, Intake
17111	17111-E0210	Manifold, Intake
17113	17113-78122	Pipe, Intake
17113	17113-E0A50	Pipe, Intake
17113	17113-78250	Pipe, Intake
17113	17113-78251	Pipe, Intake
17141	17141-78081	Manifold, Exhaust
17141	90031-16069	Bolt, Stud(For Exhaust Manifold To Cylinder Head)
17152	90031-16091	Bolt, Stud(For Manifold To Exhaust Pipe)
17159	90031-16085	Bolt, Stud(For Manifold To Cylinder Head)
17163	17586-78060	Bracket, Heat Insulator, No.1
17163	17586-E0020	Bracket, Heat Insulator, No.1
17173	17173-78040	Gasket, Exhaust Manifold To Head
17173	17173-78080	Gasket, Exhaust Manifold To Head
17271	17271-78040	Insulator, Turbo, No.1
17271	17271-E0010	Insulator, Turbo, No.1
17277	17277-78020	Gasket, Compressor Outlet
17277	17277-78030	Gasket, Compressor Outlet
17278	17278-78020	Gasket, Turbo To Exhaust Manifold
17342	17342-78110	Hose, Air, No.2
91511	91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9003101187	90031-01187	New Genuine Part
9003105124	90031-05124	New Genuine Part
9003105125	90031-05125	New Genuine Part
9003105126	90031-05126	New Genuine Part
9003105131	90031-05131	BOLT FLANGE
9003105135	90031-05135	New Genuine Part
9003116055	90031-16055	Bolt, Stud(For Manifold To Cylinder Head)
9003119155	90031-19155	Bolt(For Turbocharger Stay)
9003175001	90031-75001	New Genuine Part
9003175006	90031-75006	NUTFLANGE
9003460046	90034-60046	Clamp, Hose, No.2(For Intercooler)
9003461064	90034-61064	Clamp, Hose(For Intercooler)
9003560055	90035-60055	SPACER
9003560074	90035-60074	SPACER
9017908210	90179-08210	NUT

OEM	Part name	Category
15407-78050	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([04.2007 - ] (0704- ))
15407-78060	Pipe, Turbo Oil Outlet	Manifold ([04.2007 - ] (0704- ))
15407-E0030	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([04.2007 - ] (0704- ))
15407-E0031	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([04.2007 - ] (0704- ))
15407-E0060	Pipe, Turbo Oil Outlet	Manifold ([04.2007 - ] (0704- ))
15471-78011	Gasket, Turbo Oil Inlet	Manifold ([04.2007 - ] (0704- ))
17107-78161	Insulator Sub-Assy, Exhaust Manifold Heat	Manifold ([04.2007 - ] (0704- ))
17107-78162	Insulator Sub-Assy, Exhaust Manifold Heat	Manifold ([04.2007 - ] (0704- ))
17107-78171	Insulator Sub-Assy, Exhaust Manifold Heat	Manifold ([04.2007 - ] (0704- ))
17107-E0012	Insulator Sub-Assy, Exhaust Manifold Heat	Manifold ([04.2007 - ] (0704- ))
17107-E0041	Insulator Sub-Assy, Exhaust Manifold Heat	Manifold ([04.2007 - ] (0704- ))
17111-78050	Manifold, Intake	Manifold ([04.2007 - ] (0704- ))
17111-E0210	Manifold, Intake	Manifold ([04.2007 - ] (0704- ))
17113-78122	Pipe, Intake	Manifold ([04.2007 - ] (0704- ))
17113-78250	Pipe, Intake	Manifold ([04.2007 - ] (0704- ))
17113-78251	Pipe, Intake	Manifold ([04.2007 - ] (0704- ))
17113-E0A50	Pipe, Intake	Manifold ([04.2007 - ] (0704- ))
17141-78081	Manifold, Exhaust	Manifold ([04.2007 - ] (0704- ))
17173-78040	Gasket, Exhaust Manifold To Head	Manifold ([04.2007 - ] (0704- ))
17173-78080	Gasket, Exhaust Manifold To Head	Manifold ([04.2007 - ] (0704- ))
17271-78040	Insulator, Turbo, No.1	Manifold ([04.2007 - ] (0704- ))
17271-E0010	Insulator, Turbo, No.1	Manifold ([04.2007 - ] (0704- ))
17277-78020	Gasket, Compressor Outlet	Manifold ([04.2007 - ] (0704- ))
17277-78030	Gasket, Compressor Outlet	Manifold ([04.2007 - ] (0704- ))
17278-78020	Gasket, Turbo To Exhaust Manifold	Manifold ([04.2007 - ] (0704- ))
17342-78110	Hose, Air, No.2	Manifold ([04.2007 - ] (0704- ))
17586-78060	Bracket, Heat Insulator, No.1	Manifold ([04.2007 - ] (0704- ))
17586-E0020	Bracket, Heat Insulator, No.1	Manifold ([04.2007 - ] (0704- ))
90031-01187	New Genuine Part	Manifold ([04.2007 - ] (0704- ))
90031-05124	New Genuine Part	Manifold ([04.2007 - ] (0704- ))
90031-05125	New Genuine Part	Manifold ([04.2007 - ] (0704- ))
90031-05126	New Genuine Part	Manifold ([04.2007 - ] (0704- ))
90031-05131	BOLT FLANGE	Manifold ([04.2007 - ] (0704- ))
90031-05135	New Genuine Part	Manifold ([04.2007 - ] (0704- ))
90031-09073	Bolt, Union(For Turbo Oil Inlet Pipe)	Manifold ([04.2007 - ] (0704- ))
90031-16055	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([04.2007 - ] (0704- ))
90031-16069	Bolt, Stud(For Exhaust Manifold To Cylinder Head)	Manifold ([04.2007 - ] (0704- ))
90031-16085	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([04.2007 - ] (0704- ))
90031-16091	Bolt, Stud(For Manifold To Exhaust Pipe)	Manifold ([04.2007 - ] (0704- ))
90031-19155	Bolt(For Turbocharger Stay)	Manifold ([04.2007 - ] (0704- ))
90031-75001	New Genuine Part	Manifold ([04.2007 - ] (0704- ))
90031-75006	NUTFLANGE	Manifold ([04.2007 - ] (0704- ))
90034-01010	Bolt, Union(For Turbo Oil Inlet Pipe)	Manifold ([04.2007 - ] (0704- ))
90034-60046	Clamp, Hose, No.2(For Intercooler)	Manifold ([04.2007 - ] (0704- ))
90034-61064	Clamp, Hose(For Intercooler)	Manifold ([04.2007 - ] (0704- ))
90035-60055	SPACER	Manifold ([04.2007 - ] (0704- ))
90035-60074	SPACER	Manifold ([04.2007 - ] (0704- ))
90179-08210	NUT	Manifold ([04.2007 - ] (0704- ))
90201-12030	Gasket(For Turbo Oil Inlet Pipe)	Manifold ([04.2007 - ] (0704- ))
90201-14014	Gasket(For Turbo Oil Inlet Pipe)	Manifold ([04.2007 - ] (0704- ))
91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Manifold ([04.2007 - ] (0704- ))
